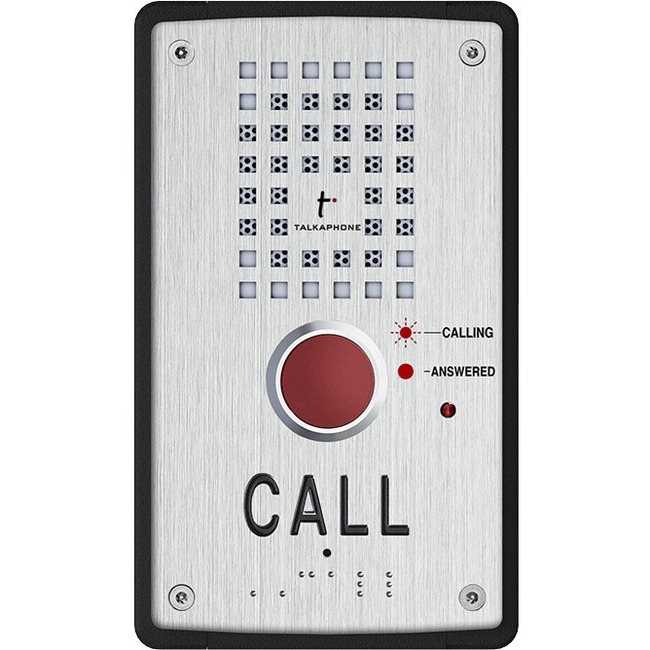

Talkaphone Surface Mount Compact IP Call Station

Talkaphone Surface Mount Compact IP Call Station

New
Talkaphone Surface Mount Compact IP Call Station - Surface-mountable for IP Phone - Brushed Stainless Steel
0 Review(s) Item: VOIP-201C | By: Talkaphone |  0 In Stock

Sorry This Product is Currently not Available to Buy.

Sorry This Product is Currently not Available to Buy.

You may be also interested
Talkaphone Surface Mount Compact IP Call Station - Surface-mountable for IP Phone - Brushed Stainless Steel
Surface-mountable for IP Phone - Brushed Stainless Steel

Product Specifications

Product MaterialBrushed Stainless Steel
Additional Information
  • Exceptional sound clarity during conversation
  • Ethernet connectivity and full IP compatibility with existing routers and LAN infrastructure
  • Additional Ethernet port to connect other devices
  • Supports standard Session Initiation Protocol (SIP) RFC 3261
  • Remote software upgrade configuration and monitoring
  • Power over Ethernet (PoE 802.3af) local 19-27 VDC
  • IP66 vandal resistant marine grade stainless steel faceplate
  • LED indicator for the hearing impaired
  • Built-in auto-dialer can dial six numbers: if first number doesn't answer or is busy dials next number
  • Available in a variety of languages
  • Operating Temperature: -40º F to +158º F (-40º C to +70º C)
  • Relative Humidity: Up to 95% non-condensing
  • Protection: IP66 vandal-resistant and water-resistant design
  • Communication: Full duplex 2-way hands-free communication
  • Call Control Signaling: SIP (RFC 3261 compliant) SIP Info (DTMF) RFC 2833 (DTMF)
  • Audio Codecs: G.711 G.722 G.729
  • Power:
    • Power over Ethernet IEEE 802.3af Class 0
    • Local power 19-27 VDC Idle 4W Max. 8W
  • Auxiliary Contacts: 1 Aux Output dry contact
    • [Max Switching Current] 1.0A
    • [Max Switching Voltage] 125VAC 60VDC
    • [Max Switching Power] 62.5VA 30W
    • [Rated Load] 0.5A at 125VAC 1.0A at 24VDC
  • Network: 10/100 BaseTX Ethernet RJ45 connectors Cat5e or better
  • IP Protocols: IPv4 TCP UDP HTTPS TFTP RTP RTCP DHCP SIP
  • LAN Protocols: Power over Ethernet (IEEE 802.3af) VLAN (IEEE 802.1 pq) Network Access Control (IEEE 802.1 x) STP (IEEE 802.1 d) RSTP (IEEE 802.1 d-2004)
  • Programming: Non-volatile flash memory programming and configuration through Web GUI
  • Management/Operation: HTTPS (Web configuration) DHCP and static IP remote automatic software upgrade centralized monitoring status LED
Application/UsageIP Phone
Brand NameTalkaphone
Depth6.8"
Form factorSurface-mountable
Height2.3"
ManufacturerTalkaphone LLC
Manufacturer Part NumberVOIP-201C
Manufacturer Website Addresshttp://www.talkaphone.com
Marketing Information

VOIP-200 Series IP call stations feature a contemporary new design and compact form factor that make them ideal for front door entry gates and other applications where both space-savings and security are desired. Patent pending.

Product NameSurface Mount Compact IP Call Station
Product Series200
Product TypePhone Station
Weight (Approximate)2.30 lb
Width4"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
