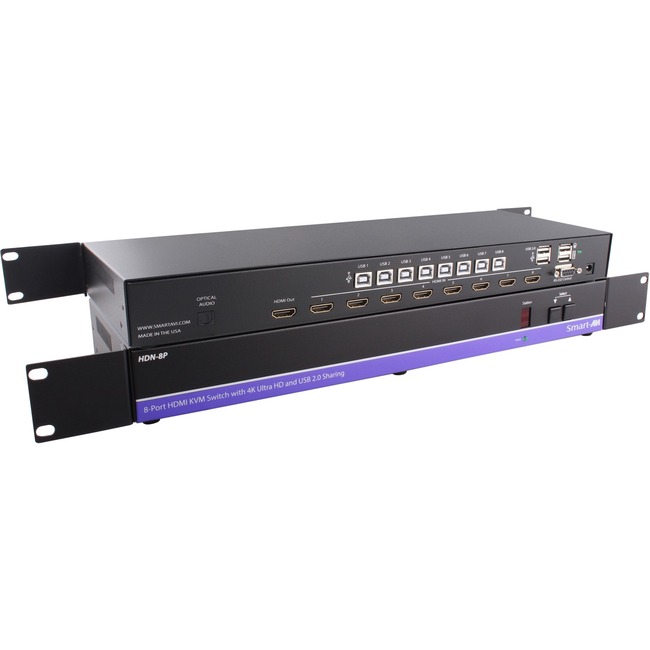

SmartAVI 8-Port 4K Ultra HD HDMI and USB 2.0 Switch - 8 Computer(s) - 1 Local User(s) - 3840 x 2160 - 12 x USB - 9 x HDMI - Rack-mountable
8 Computer(s) - 1 Local User(s) - 3840 x 2160 - 12 x USB - 9 x HDMI - Rack-mountable
| Number of HDMI Ports | 9 |
| Number of Local Users Supported | 1 |
| Brand Name | SmartAVI |
| Country of origin | United States |
| Depth | 6.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 1.8" |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | HDN-8P-S |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | HDN-8P is a dedicated multi-platform KVM switch capable of managing eight computers through a single HDMI monitor USB keyboard USB mouse and other USB 2.0 devices. This is the first KVM switch on the market that features support for 4K Ultra HD (3840x2160 @30Hz or 4Kx2K @60Hz YUV4:2:0) workstations. The device also features SmartPreview technology which enables simultaneous picture-in-picture monitoring of the other sources connected to the switch. This helpful technology allows users to keep tabs on the other connected workstations without constantly needing to switch back and forth. The USB emulation technology utilized by HDN-8P enables immediate hot key source switching through a remote USB keyboard and mouse. HDN-8P is HDMI 1.4 and HDCP compliant which supports 4K Ultra HD resolutions and 12-bit deep color at 1080p @60Hz. RS-232 control and front panel switching are supported. The switch also transmits digital audio. |
| Maximum Video Resolution | 3840 x 2160 |
| Number of Computers Supported | 8 |
| Number of USB Ports | 12 |
| Package Contents | - 8-Port 4K Ultra HD HDMI and USB 2.0 Switch
- PS5VDC4A Power Supply
|
| Product Model | HDN-8P |
| Product Name | 8-Port 4K Ultra HD HDMI and USB 2.0 Switch |
| Product Type | KVM Switchbox |
| UPC Alternates | 813280017824 813280021517 |
| Weight (Approximate) | 3.50 lb |
| Width | 14.8" |
