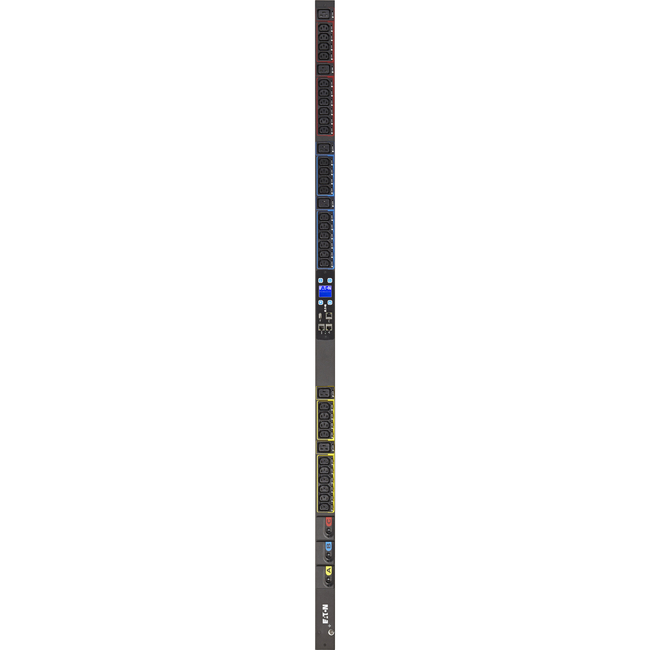

Eaton Metered Input rack PDU, 0U, CS8365 input, 12.48 kW max, 200-240V, 35A, 6 ft cord, Three-phase, Outlets: (30) C13 Outlet grip, (6) C19 Outlet grip - CS8365 - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 12.48 kW - Network (RJ-45) - 38U - Rack-mountable
CS8365 - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 12.48 kW - Network (RJ-45) - 38U - Rack-mountable
| Power Rating (Watt) | 12.48 kW |
| Power Rating (Watt) | 12.48 kW |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13 |
| Brand Name | Eaton |
| Brand Name | Eaton |
| Certifications & Standards | |
| Certifications & Standards | |
| Circuit Breaker | Yes |
| Circuit Breaker | Yes |
| Cord Length | 6 ft |
| Cord Length | 6 ft |
| Country of origin | United States |
| Country of origin | Morocco |
| Country of origin | United States |
| Height | 66.5" |
| Height | 66.5" |
| Input current | 35 A |
| Input current | 35 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Eaton Corporation |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EMI305-06 |
| Manufacturer Part Number | EMI305-06 |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- IEC outlet grip plug retention secures plugs in place using standard cables
- Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
|
| Marketing Information | Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- IEC outlet grip plug retention secures plugs in place using standard cables
- Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
|
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Plug/Connector Type | CS8365 |
| Plug/Connector Type | CS8365 |
| Product Line | ePDU |
| Product Line | ePDU |
| Product Name | ePDU 36-Outlets PDU |
| Product Name | ePDU 36-Outlets PDU |
| Product Type | PDU |
| Product Type | PDU |
| Rack Height | 38U |
| Rack Height | 38U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 786685885063 995476067964 |
| UPC Alternates | 786685885063 995476067964 |
| Weight (Approximate) | 17.40 lb |
| Weight (Approximate) | 17.40 lb |
| Width | 2.1" |
| Width | 2.1" |
