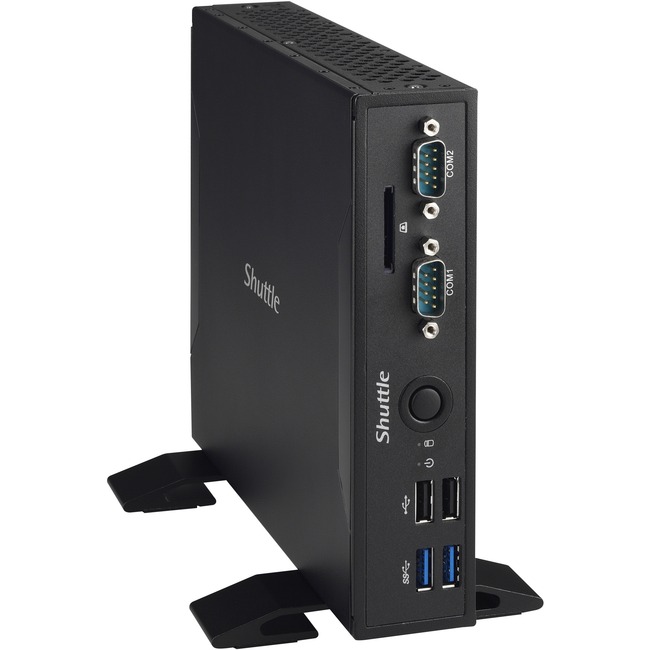

Shuttle XPC DS77U3 Barebone System - Slim PC - Intel Core i3 7th Gen i3-7100U - DDR4 SDRAM Maximum RAM Support - Intel HD Graphics 620 Graphic(s) - HDMI - DisplayPort - 2 USB 3.0 Port(s) - 3 Year
DDR4 SDRAM Maximum RAM Support - Intel HD Graphics 620 Graphic(s) - HDMI - DisplayPort - 2 USB 3.0 Port(s) - 3 Year
| Graphics Controller Model | HD Graphics 620 |
| Graphics Memory Accessibility | Shared |
| Processor Generation | 7th Gen |
| Brand Name | Shuttle |
| Country of origin | China |
| Depth | 7.9" |
| Features | Security Slot |
| Form factor | Slim PC |
| Height | 1.6" |
| Limited Warranty | 3 Year |
| Manufacturer | Shuttle Inc |
| Manufacturer Part Number | DS77U3 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Marketing Information | Fanless Slim PC with a Kaby-Lake-U processor in industrial design
The DS77U is a fanless slim PC with a robust 1.3 litre metal chassis and exceptional connectivity: 2x HDMI DisplayPort Dual Intel LAN USB 3.0/2.0 serial ports audio card reader and integrated W-LAN. Installation of components goes straight forward as there is plenty of interior space for two memory modules a 2.5" drive and an M.2-2280 SSD card. The built-in Dual Core Intel "Kaby-Lake-U" processor with integrated graphics provides ample performance for playback of 4K content. Thanks to its re-designed passive cooling architecture the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance yet extremely energy-efficient. The Shuttle XPC slim Barebone DS77U is an ideal platform for professional applications such as digital signage POS Kiosk Thin Client Cloud Computing Office PC and Multimedia. |
| Memory Technology | DDR4 SDRAM |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Processor Manufacturer | Intel |
| Processor model | i3-7100U |
| Processor Type | Core i3 |
| Product color | Black |
| Product Line | XPC |
| Product Name | XPC DS77U3 Barebone System |
| Product Type | Barebone System |
| Total Number of USB Ports | 6 |
| UPC Alternates | 696551940867 887993001036 |
| Weight (Approximate) | 3.15 lb |
| Width | 6.5" |
| Wireless LAN | Yes |
