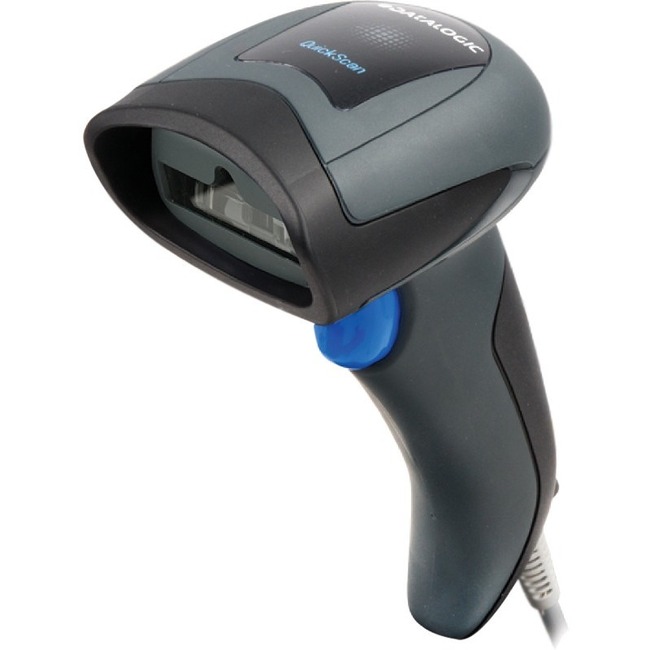

Datalogic QuickScan I QD2131 Handheld Barcode Scanner Kit - Cable Connectivity - 270 scan/s - 29.53" Scan Distance - 1D - Imager - USB - Black - IP42 - USB - Industrial, Retail, Inventory
Cable Connectivity - 270 scan/s - 29.53" Scan Distance - 1D - Imager - USB - Black - IP42 - USB - Industrial, Retail, Inventory
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Ingress Protection (IP) Rating | IP42 |
| Ingress Protection (IP) Rating | IP42 |
| Maximum Ambient Light | 120000 lux |
| Maximum Element Resolution (Code 39) | 20 mil |
| Minimum Element Resolution (Code 39) | 4 mil |
| Minimum Print Contrast | 25% |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Reading Angle (Skew) | 70° |
| Scan Rate | 270 scan/s |
| Scanner Range | Extended Range |
| Scanning Capability | 1D |
| Scanning Distance | 29.53" |
| Additional Information | USB Cable separate |
| Application/Usage | Retail |
| Application/Usage | Industrial |
| Application/Usage | Inventory |
| Barcode Symbology Supported | 1D / LINEAR CODES
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
POSTAL CODES
STACKED CODES
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
|
| Brand Name | Datalogic |
| Connectivity technology | Cable |
| Country of origin | Vietnam |
| Form factor | Handheld |
| Height | 8.7" |
| Host interface | USB |
| Image Sensor Type | Imager |
| Length | 3.9" |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | QD2131-BKK1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Marketing Information | The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan I QD2100 linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services.
The QD2100 is small lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read bar codes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes. The QD2100 reader features Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code. When in Stand Mode the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.
Like the QuickScan L reader the QD2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen the scanner may have to be replaced. The QD2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use. |
| Packaged Quantity | 2 |
| Platform Supported | iOS |
| Platform Supported | Android |
| Product color | Black |
| Product Family | QuickScan I QD2100 |
| Product Line | QuickScan I |
| Product Model | QD2131 |
| Product Name | QuickScan I QD2131 Handheld Barcode Scanner Kit |
| Product Series | QD2100 |
| Product Type | Barcode Scanner Kit |
| UPC Alternates | 028592322218 783555115206 |
| Weight (Approximate) | 4.30 oz |
| Width | 3.1" |
