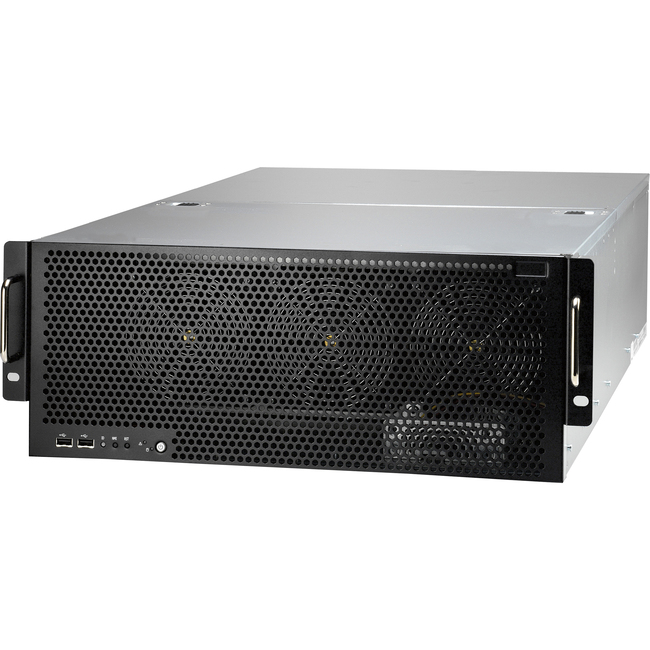

Tyan FT77B7015 Barebone System - 4U Rack-mountable - Socket B LGA-1366 - 2 x Processor Support - Intel 5520 Chip - 144 GB DDR3 SDRAM DDR3-1333/PC3-10600 Maximum RAM Support - 18 Total Memory Slots - Serial ATA/300 RAID Supported Controller - ASPEED AST2050 Graphic(s) - 4 2.5" Bay(s) - Network (RJ-45) - Processor Support (Xeon) - 3 x 2400 W - 3 Year
Intel 5520 Chip - 144 GB DDR3 SDRAM DDR3-1333/PC3-10600 Maximum RAM Support - 18 Total Memory Slots - Serial ATA/300 RAID Supported Controller - ASPEED AST2050 Graphic(s) - 4 2.5" Bay(s) - Network (RJ-45) - Processor Support (Xeon) - 3 x 2400 W - 3 Year
| Chipset | Intel 5520 |
| Chipset Manufacturer | Intel |
| Chipset Model | 5520 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| Maximum Memory Supported | 144 GB |
| Maximum Power Supply Wattage | 2400 W |
| Memory Standard | DDR3-1333/PC3-10600 |
| Number of Internal 2.5" Bays | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 10 |
| Number of PCI Slots | 1 |
| Number of Power Supplies Installed | 3 |
| Number of Total Expansion Slots | 13 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Processor Technology | Virtualization Technology |
| Processor Technology | Hyper-Threading Technology |
| Processor Technology | Trusted Execution Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| QuickPath Interconnect | 6.40 GT/s |
| Brand Name | Tyan |
| Certifications & Standards | |
| Compatibility | - Windows XP Pro 32-bit
- Windows XP Pro 64-bit
- Windows Vista 32-bit
- Windows Vista 64-bit
- Windows Windows 7 32-bit
- Windows Windows 7 64-bit
- Windows Server 2003 32-bit
- Windows Server 2003 64-bit
- Windows Server 2003-R2 64-bit
- Windows Server 2008 32-bit
- Windows Servier 2008 64-bit
- Windows Server 2008-R2 64-bit
|
| Controller Type | Serial ATA/300 |
| Depth | 31.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 6.9" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7015F77V4R-N429 |
| Manufacturer Website Address | http://www.tyan.com |
| Memory Technology | DDR3 SDRAM |
| Number of Total Memory Slots | 18 |
| Package Contents | - FT77B7015 Barebone System
- 4 x NV M2090 cards
- 1 x TYAN Installation CD
- 1 x User's Manual
- 16 x Power Cables
|
| Product color | Black |
| Product Model | FT77B7015 |
| Product Name | FT77B7015 Barebone System |
| Product Series | FT77 |
| Product Type | Barebone System |
| Rack Height | 4U |
| UPC Alternates | 635872031908 |
| Weight (Approximate) | 63.93 lb |
| Width | 17.2" |
