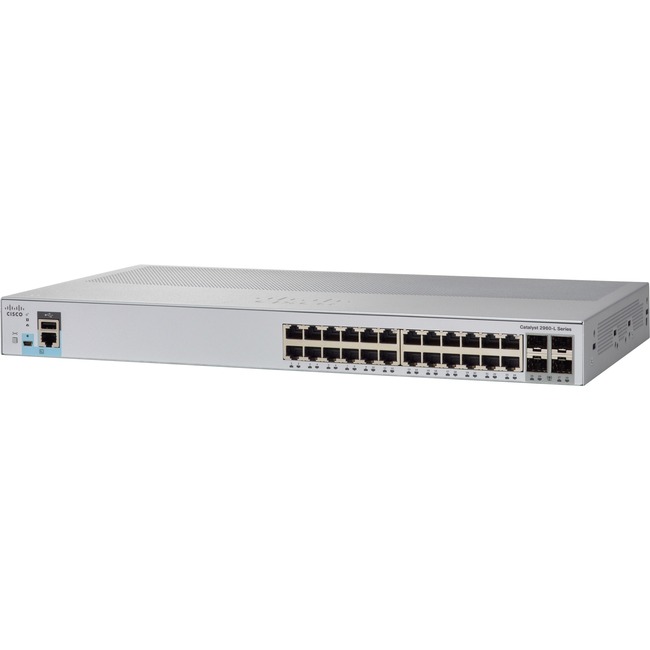

Cisco Catalyst WS-C2960L-24PQ-LL Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 4 Layer Supported - Modular - Twisted Pair, Optical Fiber
24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 4 Layer Supported - Modular - Twisted Pair, Optical Fiber
| Stack Port | No |
| Stack Port | No |
| Total Number of Network Ports | 24 |
| Total Number of Network Ports | 24 |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Depth | 10.5" |
| Depth | 10.5" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | SFP+ |
| Height | 1.7" |
| Height | 1.7" |
| Layer Supported | 4 |
| Layer Supported | 4 |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-C2960L-24PQ-LL |
| Manufacturer Part Number | WS-C2960L-24PQ-LL |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco® Catalyst® 2960-L Series Switches are fixed-configuration Gigabit Ethernet switches that provide Layer 2 and basic Layer 3 enterprise-class access switching for branch offices conventional workspaces and out-of-the-wiring-closet applications. These Cisco IOS® Software based switches are fanless easy to use energy efficient cost-effective reliable and secure. Product highlights Cisco Catalyst 2960-L switches feature: - 8 16 24 or 48 Gigabit Ethernet ports with line-rate forwarding
- 4 Enhanced Small Form-Factor Pluggable (SFP+) uplinks
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Basic routing features: Static routing and Routing Information Protocol (RIP)
- Power over Ethernet Plus (PoE+) support with up to 370W of power budget
- Perpetual PoE provides uninterrupted power to connected devices even when the switch is booting
- Fanless operation and operational temperature up to 45°C for deployment outside the wiring closet
- Higher Mean Time Between Failure (MTBF) because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
- Over-the-air configuration and management via Bluetooth interface
- Enhanced Limited Lifetime Warranty (E-LLW) offering next-business-day hardware replacement
|
| Marketing Information | Cisco® Catalyst® 2960-L Series Switches are fixed-configuration Gigabit Ethernet switches that provide Layer 2 and basic Layer 3 enterprise-class access switching for branch offices conventional workspaces and out-of-the-wiring-closet applications. These Cisco IOS® Software based switches are fanless easy to use energy efficient cost-effective reliable and secure. Product highlights Cisco Catalyst 2960-L switches feature: - 8 16 24 or 48 Gigabit Ethernet ports with line-rate forwarding
- 4 Enhanced Small Form-Factor Pluggable (SFP+) uplinks
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Basic routing features: Static routing and Routing Information Protocol (RIP)
- Power over Ethernet Plus (PoE+) support with up to 370W of power budget
- Perpetual PoE provides uninterrupted power to connected devices even when the switch is booting
- Fanless operation and operational temperature up to 45°C for deployment outside the wiring closet
- Higher Mean Time Between Failure (MTBF) because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
- Over-the-air configuration and management via Bluetooth interface
- Enhanced Limited Lifetime Warranty (E-LLW) offering next-business-day hardware replacement
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-X |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Uplink |
| Power source | Power Supply |
| Power source | Power Supply |
| Product Family | Catalyst 2960-L |
| Product Family | Catalyst 2960-L |
| Product Line | Catalyst |
| Product Line | Catalyst |
| Product Name | Catalyst WS-C2960L-24PQ-LL Ethernet Switch |
| Product Name | Catalyst WS-C2960L-24PQ-LL Ethernet Switch |
| Product Series | 2960-L |
| Product Series | 2960-L |
| Product Type | Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 818249917627 889728045704 |
| UPC Alternates | 818249917627 889728045704 |
| Weight (Approximate) | 7.39 lb |
| Weight (Approximate) | 7.39 lb |
| Width | 17.5" |
| Width | 17.5" |
