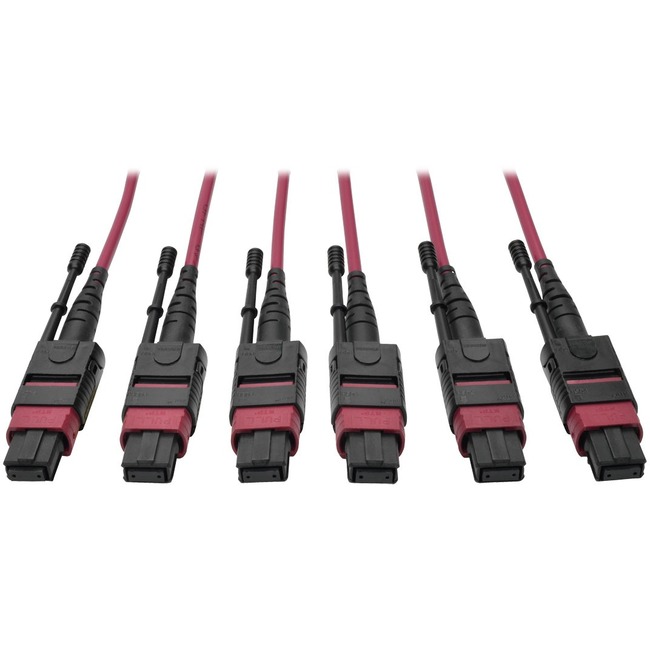

Tripp Lite 24-Fiber MTP MPO OM4 Base-8 MMF Trunk Cable 40/100GbE 3X, 15M - Fiber Optic for Network Device - 12.50 GB/s - 49.21 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 50/125 µm - Magenta
Fiber Optic for Network Device - 12.50 GB/s - 49.21 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 50/125 µm - Magenta
| Brand Name | Tripp Lite |
| Cable length | 49.20 ft |
| Cable type | Fiber Optic |
| Color | Magenta |
| Connector on First End | MTP/MPO Female Network |
| Connector on First End | 3 x MTP/MPO Female Network |
| Core/Cladding Diameter | 50/125 µm |
| Country of origin | China |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Fiber Optic Mode | Multi-mode |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N858-15M-3X8-MG |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The 15-meter (49-foot) N858-15M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.
With three female MTP/MPO connectors on each end this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It's colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand.
The 8-fiber MTP/MPO connectors are about the same size as SC connectors but are 12 times denser freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings walls and ducts.
Features OM4-Rated for 40/100 Gb Ethernet Applications
- Designed to extend high-density connections between network equipment in telecom rooms and data centers
- Recommended for patching between data center MDFs and IDFs
- Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
- Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tabs
- 8-fiber female connectors 12 times denser than SC connectors
- Push/pull tab connectors easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
- 50/125 duplex glass fiber construction
- Plenum-rated jacket and bend-insensitive fiber perfect for ceilings walls and ducts
|
| Product Name | N858-15M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable Magenta 15 m |
| Product Type | Network Cable |
| UPC Alternates | 037332200181 |
