Tripp Lite N383L-02M 40/100/400G Singlemode 9/125 OS2 Fiber Cable, Yellow, 2 m (6.6 ft.) - 6.56 ft Fiber Optic Network Cable for Network Device, Transceiver, Patch Panel, Switch - First End: 2 x LC/UPC Male Network - Second End: 2 x SN/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Blue, White
6.56 ft Fiber Optic Network Cable for Network Device, Transceiver, Patch Panel, Switch - First End: 2 x LC/UPC Male Network - Second End: 2 x SN/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Blue, White
| Connector Color | White |
| Connector Color | Blue |
| Connector on First End Details | 2 x LC/UPC Network - Male |
| Connector on Second End Details | 2 x SN/UPC Network - Male |
| Connector Type on First End | LC/UPC Network - Male |
| Connector Type on Second End | SN/UPC Network - Male |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Cable length | 6.56 ft |
| Cable length | 6.56 ft |
| Cable type | Fiber Optic |
| Cable type | Fiber Optic |
| Color | White |
| Color | White Connector |
| Color | Blue Connector |
| Color | Yellow |
| Color | Blue |
| Color | White |
| Color | White Connector |
| Color | Blue Connector |
| Color | Yellow Jacket |
| Color | Yellow Jacket |
| Color | Yellow |
| Color | Blue |
| Connector on First End | 2 x LC/UPC Male Network |
| Connector on First End | LC/UPC Male Network |
| Connector on First End | 2 x LC/UPC Male Network |
| Connector on First End | LC/UPC Male Network |
| Connector on Second End | SN/UPC Male Network |
| Connector on Second End | SN/UPC Male Network |
| Connector on Second End | 2 x SN/UPC Male Network |
| Connector on Second End | 2 x SN/UPC Male Network |
| Core/Cladding Diameter | 9/125 µm |
| Core/Cladding Diameter | 9/125 µm |
| Country of origin | China |
| Data transfer rate | 400 Gbit/s |
| Data transfer rate | 400 Gbit/s |
| Device Supported | Switch |
| Device Supported | Network Device |
| Device Supported | Patch Panel |
| Device Supported | Patch Panel |
| Device Supported | Transceiver |
| Device Supported | Switch |
| Device Supported | Transceiver |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Features | Push-Pull Boot |
| Features | Bendable |
| Features | Push-Pull Boot |
| Features | Bendable |
| Fiber Optic Mode | Single-mode |
| Fiber Optic Mode | Single-mode |
| Jacket Color | Yellow |
| Jacket Type | LSZH |
| Jacket Type | OFNR |
| Jacket Type | OFNR |
| Jacket Type | LSZH |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N383L02M |
| Manufacturer Part Number | N383L-02M |
| Manufacturer Part Number | N383L-02M |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N383L-02M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale edge enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important. This OS2 cable is also backward compatible with 40 Gb and 100 Gb networks so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers

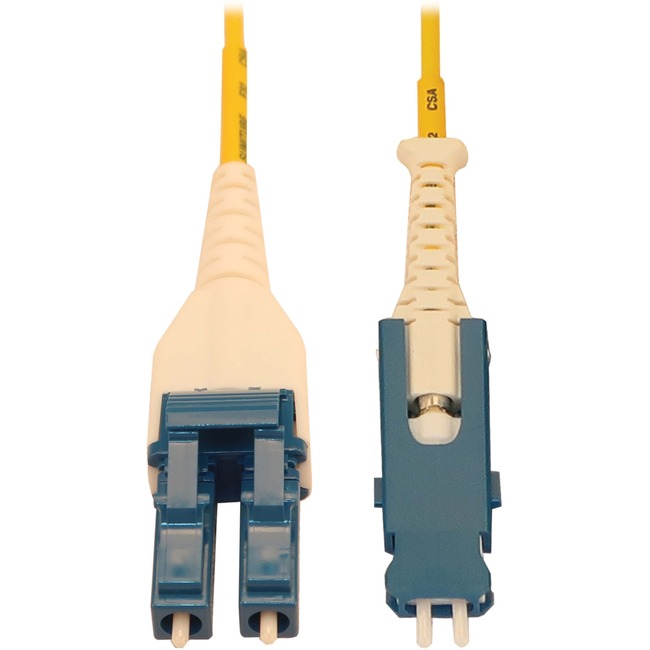

One cable end features an SN connector which is four times smaller than the standard duplex LC connector on the other end. The SN connector provides individual and independent duplex fiber support for an OSFP/QSFP-DD transceiver. The push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. The switchable SN/UPC duplex end lets you make quick polarity changes in the field without tools or the need to re-terminate the connectors. Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas. |
| Marketing Information | 40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N383L-02M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale edge enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important. This OS2 cable is also backward compatible with 40 Gb and 100 Gb networks so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers
One cable end features an SN connector which is four times smaller than the standard duplex LC connector on the other end. The SN connector provides individual and independent duplex fiber support for an OSFP/QSFP-DD transceiver. The push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. The switchable SN/UPC duplex end lets you make quick polarity changes in the field without tools or the need to re-terminate the connectors. Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas. |
| Product Model | N383L-02M |
| Product Name | N383L-02M 40/100/400G Singlemode 9/125 OS2 Fiber Cable Yellow 2 m (6.6 ft.) |
| Product Name | N383L-02M 40/100/400G Singlemode 9/125 OS2 Fiber Cable Yellow 2 m (6.6 ft.) |
| Product Type | Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332274472 |
| UPC Alternates | 037332274472 |
