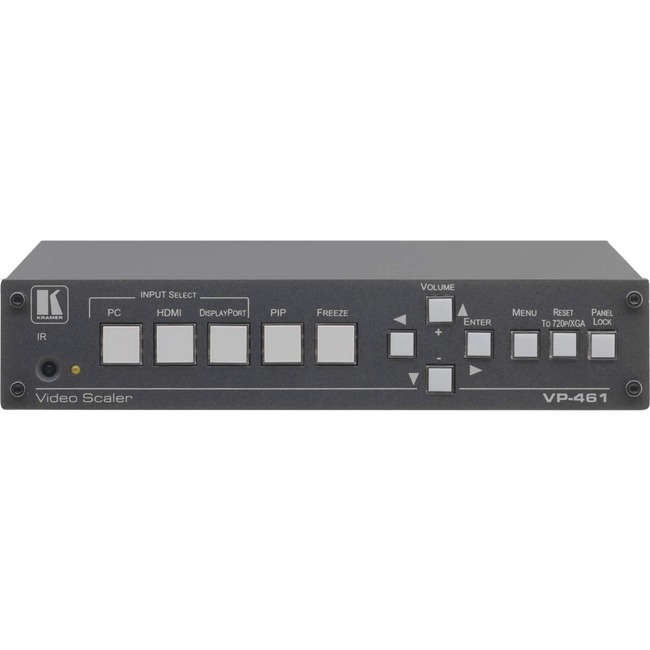

Kramer VP-461 3-Input Analog & HDMI ProScale Presentation Switcher/Scaler - 1920 x 1200 - 2K - 3 x 2 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
1920 x 1200 - 2K - 3 x 2 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
| DisplayPort | Yes |
| Number of Input Devices Supported | 3 |
| Brand Name | Kramer |
| Connectivity technology | Cable |
| Depth | 6.4" |
| Device Supported | Display |
| Graphics Modes | 2K |
| Height | 1.7" |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VP-461 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The VP-461 is a high-quality presentation switcher and scaler with PIP for computer graphics HDMI and DisplayPort signals. It scales the video embeds the audio and outputs the signal to the HDMI output as well as to the computer graphics video output together with an unbalanced audio output. - K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra-stable picture-in-picture picture-and-picture and split screen capability. Any video source can be inserted into or positioned next to a DisplayPort video source or vice versa with window positioning and sizing controls.
- Kramer's PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down-scaling of all video input signals.
- Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth glitch-free switching. The output signal provides constant sync so the display never glitches.
- HDTV Compatible.
- 40 Output Resolutions - Up to WUXGA 1080p and 2K.
- HDMI Deep Color Support.
- Luma Keying - Via PIP window.
- Vertical Keystoning.
- Built-in ProcAmp - Color sharpness contrast brightness and gamma are set individually for each input.
- Powerful Noise Reduction Filters - Temporal block mosquito and combing.
- Picture Zooming - Both on main and PIP picture.
- De-interlacing - 3:2 and 2:2 pull-down; 24sf handling.
- Multiple Aspect Ratio Selections - Follow input follow output best fit letterbox and overscan.
- Dual Window Display - Preset picture-in-picture picture-and-picture and split screens as well as customized window layouts.
- Advanced EDID Management - For each input and each output.
- Non-Volatile Memory - Saves final settings.
- Firmware Upgrades - Via RS-232.
- Flexible Control Options - Front panel buttons OSD (on-screen display) via front panel buttons or IR remote (remote control included) Control Application software for use via RS-232.
APPLICATIONS - Projection systems in conference rooms boardrooms auditoriums hotels and churches production studios rental and staging.
- Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes.
|
| Maximum Video Resolution | 1920 x 1200 |
| Number of Displays Supported | 2 |
| Number of HDMI Inputs | 1 |
| Package Contents | - VP-461 3-Input Analog & HDMI ProScale Presentation Switcher/Scaler
- Power Supply
- IR Remote Control
- Control Application Program via RS-232 (PC)
|
| Product Line | ProScale |
| Product Name | VP-461 3-Input Analog & HDMI ProScale Presentation Switcher/Scaler |
| Product Type | Audio/Video Switchbox |
| Weight (Approximate) | 2.20 lb |
| Width | 8.5" |
