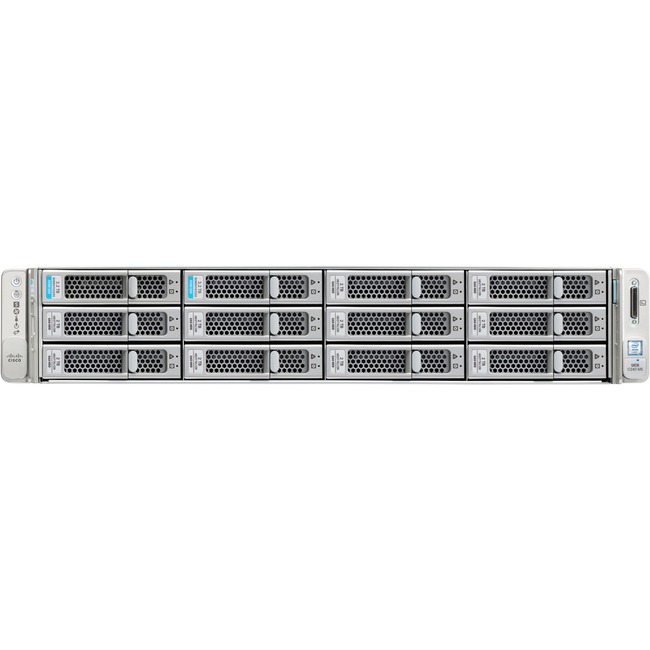

Cisco C240 M5 2U Rack-mountable Server - 2 x Intel Xeon 4114 2.20 GHz - 64 GB RAM - 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - Matrox G200e Up to 8 MB Graphic Card - 10 Gigabit Ethernet - 12 x LFF Bay(s) - Hot Swappable Bays - 2 x 1050 W - Redundant Power Supply - Intel Optane Memory Ready
2 Processor Support - 3 TB RAM Support - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - Matrox G200e Up to 8 MB Graphic Card - 10 Gigabit Ethernet - 12 x LFF Bay(s) - Hot Swappable Bays - 2 x 1050 W - Redundant Power Supply - Intel Optane Memory Ready
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Maximum Memory Supported | 3 TB |
| Maximum Power Supply Wattage | 1050 W |
| Number of Power Supplies Supported | 2 |
| Processor Core | Deca-core (10 Core) |
| Redundant Power Supply | Yes |
| Brand Name | Cisco |
| Controller Type | 12Gb/s SAS |
| Depth | 30.2" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | KIN-UCSM5-2RU-K9 |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The UCS C240 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family 24 DIMM slots for 2666 MHz DDR4 DIMMs and capacity points up to 128GB up to 6 PCI Express (PCIe) 3.0 slots and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Processor. With this combination and the new 512GB Intel® Optane™ DC Persistent Memory (DCPMM - Data Center Persistent Memory Module) up to 9 TB of memory is possible (12x256GB DDR4 DIMMs1 and 12x512GB DCPMMs). The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone or as part of the Cisco Unified Computing System which unifies computing networking management virtualization and storage access into a single integrated architecture enabling end-to-end server visibility management and control in both bare metal and virtualized environments. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 12 |
| Number of Total Memory Slots | 24 |
| Operating System | No |
| Package Contents | - UCS C240 M5 Server
- Cisco Ball-Bearing Rail Kit
|
| Processor Manufacturer | Intel |
| Processor model | 4114 |
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon |
| Product Name | UCS C240 M5 Server |
| Product Series | C240 M5 |
| Product Type | Server |
| Rack Height | 2U |
| RAID Levels | 0 1 5 6 10 50 60 JBOD |
| Standard Memory | 64 GB |
| Weight (Approximate) | 64 lb |
| Width | 19" |
