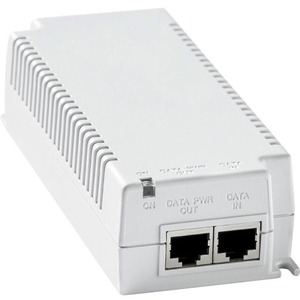

Bosch Midspan, 60W, Single Port, AC In - 120 V AC, 230 V AC Input - 57 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 60 W - Wall/Shelf/Bench/Desktop-mountable
120 V AC, 230 V AC Input - 57 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 60 W - Wall/Shelf/Bench/Desktop-mountable
| Input Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| Maximum Output Voltage | 57 V DC |
| Maximum Output Voltage | 57 V DC |
| Brand Name | Bosch |
| Brand Name | Bosch |
| Certifications & Standards | Electromagnetic Compatibility (EMC) - FCC Part 15
- ICES-003
- CE
- EN 55032 Class B (emission)
- EN 55024 (Immunity)
- VCCI
Product Safety - UL/cUL
- GS Mark per EN 60950-1
Regulatory Compliance - IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+ including 2-event)
- CE
Lightning protection - Meets GR-1089-CORE lightning protection demands
- EN 61000-4-5 (10/700 µsec 4kv)
- Surge protection: IEC 61643-21
- ITU-T K.45 International standard
|
| Certifications & Standards | Electromagnetic Compatibility (EMC) - FCC Part 15
- ICES-003
- CE
- EN 55032 Class B (emission)
- EN 55024 (Immunity)
- VCCI
Product Safety - UL/cUL
- GS Mark per EN 60950-1
Regulatory Compliance - IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+ including 2-event)
- CE
Lightning protection - Meets GR-1089-CORE lightning protection demands
- EN 61000-4-5 (10/700 µsec 4kv)
- Surge protection: IEC 61643-21
- ITU-T K.45 International standard
GS |
| Certifications & Standards | Electromagnetic Compatibility (EMC) - FCC Part 15
- ICES-003
- CE
- EN 55032 Class B (emission)
- EN 55024 (Immunity)
- VCCI
Product Safety - UL/cUL
- GS Mark per EN 60950-1
Regulatory Compliance - IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+ including 2-event)
- CE
Lightning protection - Meets GR-1089-CORE lightning protection demands
- EN 61000-4-5 (10/700 µsec 4kv)
- Surge protection: IEC 61643-21
- ITU-T K.45 International standard
|
| Compatibility | Bosch IP/HD PTZ Cameras:
- AUTODOME 7000
- MIC7000 (without Illuminators)
|
| Compatibility | Bosch IP/HD PTZ Cameras:
- AUTODOME 7000
- MIC7000 (without Illuminators)
|
| Country of origin | China |
| Country of origin | China |
| Environmental Certification | RoHS |
| Environmental Certification | GS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | GS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 1.5" |
| Height | 1.5" |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Length | 5.9" |
| Length | 5.9" |
| Manufacturer | The Bosch Group |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NPD-6001B |
| Manufacturer Part Number | NPD-6001B |
| Manufacturer Website Address | http://www.bosch.com |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | 60 W Midspan The 60 W midspan (NPD-6001B) enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W it complies to both the IEEE 802.3af and the IEEE 802.3at standards while doubling the available power. Rated for indoor installation only the midspan can be installed indoors and wired to a camera installed outdoors.
The midspan provides surge protection optimal for installation of outdoor powered devices. The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable delivered through all 4 pairs. |
| Marketing Information | 60 W Midspan The 60 W midspan (NPD-6001B) enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W it complies to both the IEEE 802.3af and the IEEE 802.3at standards while doubling the available power. Rated for indoor installation only the midspan can be installed indoors and wired to a camera installed outdoors.
The midspan provides surge protection optimal for installation of outdoor powered devices. The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable delivered through all 4 pairs. |
| Maximum Input Current | 1.50 A |
| Maximum Input Current | 1.50 A |
| Maximum Output Power | 60 W |
| Maximum Output Power | 60 W |
| Minimum Output Voltage | 54 V DC |
| Minimum Output Voltage | 54 V DC |
| Mount Type | Wall/Shelf/Bench/Desktop-mountable |
| Mount Type | Wall/Shelf/Bench/Desktop-mountable |
| Package Contents | - NPD-6001B High PoE Midspan
- 1 x 120V Power Cord
- 1 x 230V Power Cord
- 1 x Quick Installation Guide
|
| Package Contents | - NPD-6001B High PoE Midspan
- 1 x 120V Power Cord
- 1 x 230V Power Cord
- 1 x Quick Installation Guide
|
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Product Name | Midspan 60W Single Port AC In |
| Product Name | Midspan 60W Single Port AC In |
| Product Type | PoE Injector |
| Product Type | PoE Injector |
| Protection Type | Surge Protection |
| Protection Type | Surge Protection |
| UPC Alternates | 800549879248 |
| UPC Alternates | 800549879248 |
| Weight (Approximate) | 11.99 oz |
| Weight (Approximate) | 11.99 oz |
| Width | 2.4" |
| Width | 2.4" |
