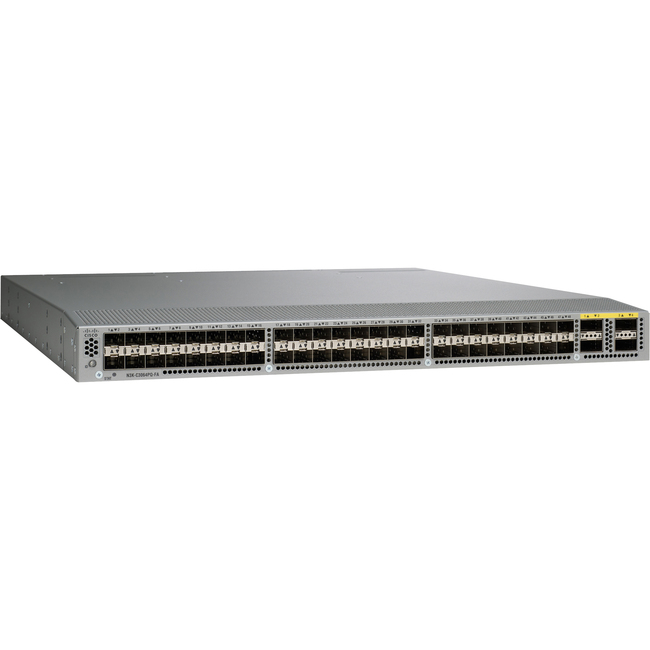

Cisco Nexus 3064 Ethernet Switch - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer Supported - Power Supply - Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty
Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer Supported - Power Supply - Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty
| Compatible Rack Unit | 1U |
| Memory Card Supported | CompactFlash |
| Number of SFP+ Slots | 48 |
| Number of Total Expansion Slots | 52 |
| Brand Name | Cisco |
| Certifications & Standards | - IEEE 802.1D: Spanning Tree Protocol
- IEEE 802.1p: CoS Prioritization
- IEEE 802.1Q: VLAN Tagging
- IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol
- IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol
- IEEE 802.3z: Gigabit Ethernet
- IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
- IEEE 802.3ae: 10 Gigabit Ethernet
- IEEE 802.1ab: LLDP
- IEEE 1588-2008 Precision Time Protocol (Boundary Clock)
Safety: - UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943
EMC - Emissions: - 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC - Immunity: - EN55024
- CISPR24
- EN300386
- KN24
|
| Depth | 19.7" |
| Environmental Certification | RoHS-5 |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Layer Supported | 3 |
| Limited Warranty | 1 Year |
| Manageable | Yes |
| Management | - Command Line Interface
- SNMP v1 v2 v3
- Cisco DCNM
- Cisco OHMS
- Syslog
- Telnet
- RMON
- VLAN
- QoS
- MIB
|
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | N3K-C3064-X-BA-L3 |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco Nexus 3064 supports a wide variety of 1 10 and 40 Gigabit Ethernet connectivity options. 1 and 10 Gigabit Ethernet connectivity is achieved using SFP+ transceivers in the first 48 ports and 40 Gigabit Ethernet connectivity is achieved using QSFP+ transceivers in the last 4 ports. QSFP+ technology allows smooth transition from 10 to 40 Gigabit Ethernet infrastructures in data centers. The Cisco Nexus 3064 supports connectivity over copper and fiber cables providing excellent physical-layer flexibility. For low-cost cabling copper-based 40-Gbps Twinax cables can be used and for longer cable reaches short-reach optical transceivers are excellent. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - Nexus 3064 Ethernet Switch
- AC Power Supply
|
| Power source | Power Supply |
| Product Family | Nexus 3000 |
| Product Line | Nexus |
| Product Model | 3064 |
| Product Name | Nexus 3064 Ethernet Switch |
| Product Series | 3000 |
| Product Type | Ethernet Switch |
| Token Ring Port | No |
| UPC Alternates | 882658475573 |
| Weight (Approximate) | 20.50 lb |
| Width | 17.3" |
