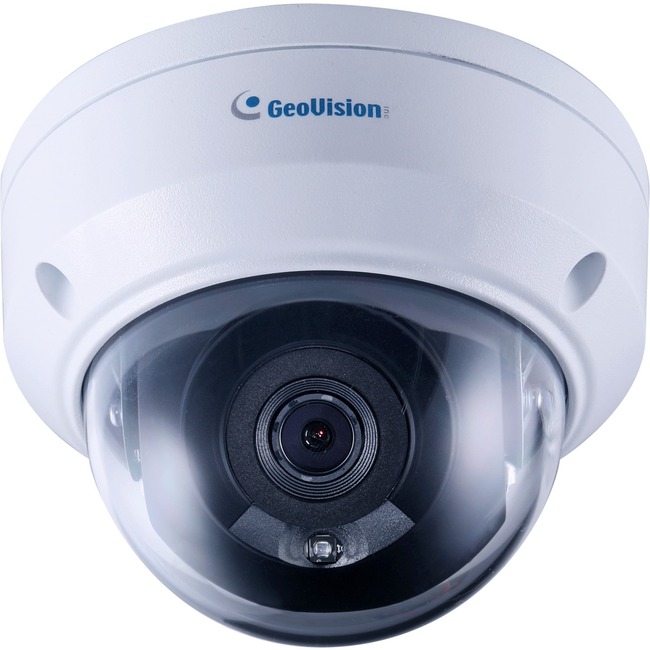

GeoVision GV-TDR4703-4F 4 Megapixel Outdoor Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2688 x 1520 - 4 mm Fixed Lens - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount, Corner Mount, Pole Mount - IK10 - IP67 - Vandal Resistant
98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2688 x 1520 - 4 mm Fixed Lens - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount, Corner Mount, Pole Mount - IK10 - IP67 - Vandal Resistant
| Field of View | 82° |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2 |
| Minimum Operating Temperature | -31°F (-35°C) |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Number of IR LEDs | 1 |
| Operating Humidity | 95% |
| Brand Name | GeoVision |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 4.3" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 4 Megapixel |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Privacy Masking |
| Features | Removable IR Cut-off Filter |
| Features | Human Detection |
| Features | Built-in IR LED |
| Features | 3D Digital Noise Reduction |
| Features | Auto Gain Control |
| Features | Rugged Design |
| Features | Day/Night |
| Features | Tampering Alarm |
| Features | Audio Detection |
| Features | Audio Compression |
| Features | Motion Detection |
| Features | Defog |
| Features | Automatic White Balance |
| Features | 3-Axis Adjustable |
| Features | SD Card Local Storage |
| Features | Wide Dynamic Range |
| Form factor | Dome |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Fixed |
| Longest Shutter Speed | 1 Second |
| Manufacturer | GeoVision Inc |
| Manufacturer Part Number | GV-TDR4703-4F |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | GV-TDR4703 is an outdoor fixed network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE. |
| Maximum Focal Length | 4 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 2688 x 1520 |
| Mount Type | Corner Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Junction Box Mount |
| Mount Type | Pendant Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Package Contents | - 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Torx Wrench
- Download Guide
- Warranty Card
|
| Product Name | 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome |
| Product Type | Network Camera |
| Shortest Shutter Speed | 1/100000 Second |
| Storage Type | Memory Card |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Weight (Approximate) | 15.87 oz |
