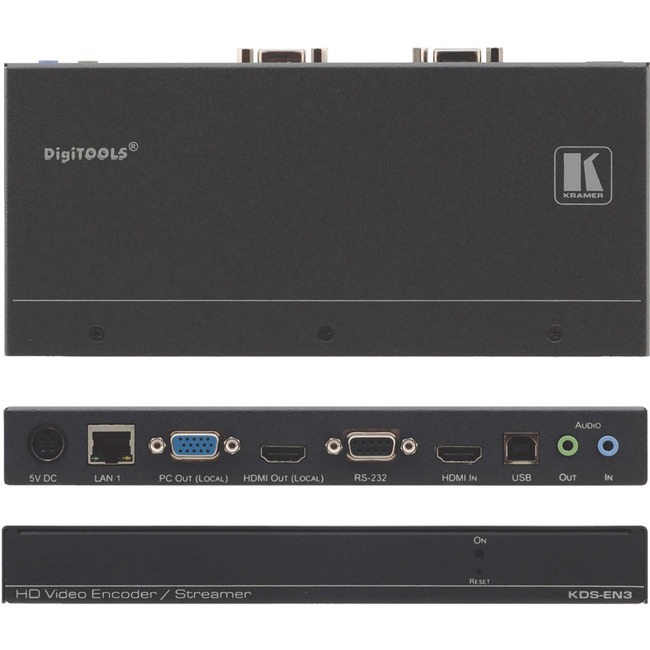

Kramer H.264 Encoder, Recorder & Streamer - Functions: Video Encoding, Video Recording, Video Streaming - 1920 x 1200 - H.264 - Network (RJ-45) - USB - Audio Line In - Audio Line Out
Functions: Video Encoding, Video Recording, Video Streaming - 1920 x 1200 - H.264 - Network (RJ-45) - USB - Audio Line In - Audio Line Out
| Brand Name | Kramer |
| Depth | 3.9" |
| Functions | Video Streaming |
| Functions | Video Recording |
| Functions | Video Encoding |
| Height | 1" |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | KDS-EN3 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | The Kramer KDS-EN3 is an H.264 encoder for HDMI signals up to 1080p60. The KDS-EN3 provides unicast (one-to-one) or multicast (one-to-many) streaming to the KDS-DEC3 decoder or computers running VLC© software. KDS-EN3 can also record content to a network drive for later access. - AVC Support - MPEG-4 using H.264 & AAC codecs.
- Built-in Scaling and Frame Rate Control - For lower bandwidth consumption when distributing over the network.
- Open Encoding - Enable software decoding through VLC® player software.
- Standard Ethernet Network Operation - 10/100/1000Mb.
- Video Support - HDMI.
- Audio Support - HDMI or analog.
- Streaming Support - Unicast and multicast through RTSP (Real Time Streaming Protocol).
- KDS-EN3 Manager Software - Allows remote management of the KDS-EN3 network including auto-detection and discovery of KDS-EN3/KDS-DEC3 units on a subnet.
- Manual & Scheduled Recording - To network storage option on encoders.
- RS-232 Virtualization - From encoder to decoder.
APPLICATIONS - AV distribution systems with one or more sources and many displays in schools universities and public venues
- Long-distance transmission of signals using existing wires and infrastructure in corporate offices government applications
- Advanced applications where functions such as recording archiving scaling and more are required
|
| Maximum resolution | 1920 x 1200 |
| Package Contents | - H.264 Encoder Recorder & Streamer
- Power Supply
- Power Cord
- Plastic Bracket Set
|
| Product Line | DigiTOOLS |
| Product Name | H.264 Encoder Recorder & Streamer |
| Product Type | Video Encoder |
| UPC Alternates | 818252101242 |
| USB | Yes |
| Video Formats | H.264 |
| Weight (Approximate) | 0.88 lb |
| Width | 8.5" |
