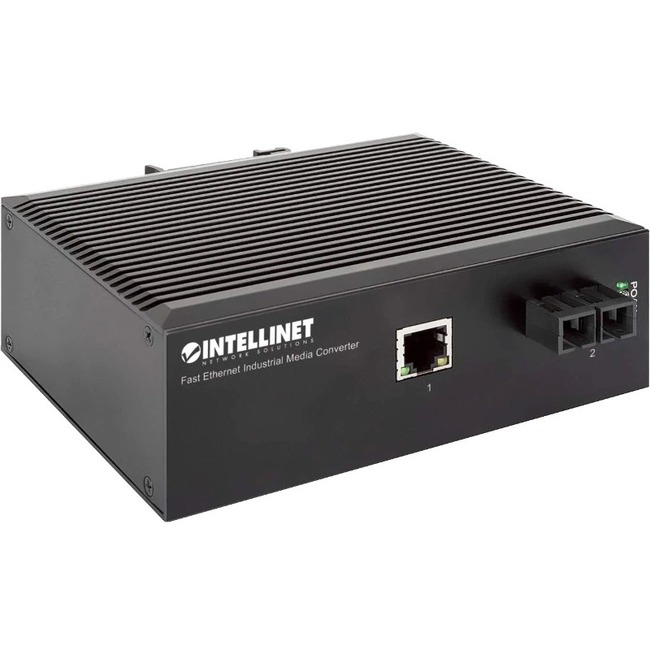

Intellinet Industrial Fast Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 12.43 Mile - DC - DIN Rail Mountable
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 12.43 Mile - DC - DIN Rail Mountable
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 10/125 µm |
| Fiber Optic Cable Standard | 8.3/125 µm |
| Fiber Optic Cable Standard | 8.7/125 µm |
| Fiber Optic Cable Standard | 8/125 µm |
| Fiber Optic Wavelength | 1310 nm |
| Maximum Distance Supported | 12.43 Mile |
| Network (RJ-45) | Yes |
| SC Port Type | Duplex |
| Brand Name | Intellinet |
| Depth | 4.1" |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Height | 1.9" |
| Manufacturer | Intellinet Network Solutions |
| Manufacturer Part Number | 508322 |
| Manufacturer Website Address | http://www.intellinet-network.com |
| Marketing Information | Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Equipped even for challenging environment conditions
With its rugged protective IP40-rated metal housing the converter operates reliably even in extreme temperatures from -40 - 75? (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features this converter is ideal for IoT applications in Industry 4.0 and more.
|
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-TX |
| Number of Network (RJ-45) Ports | 1 |
| Plug/Connector Type | Terminal Block |
| Power source | DC |
| Product Name | Industrial Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| UPC Alternates | 766623508322 |
| Weight (Approximate) | 1.32 lb |
| Width | 5.6" |
