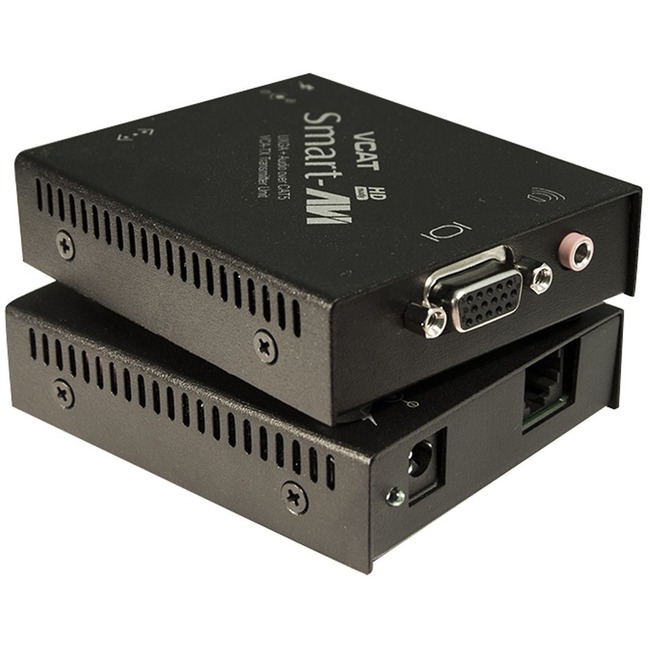

SmartAVI VCA-100S Video Console/Extender - 1 x 1 - UXGA, VGA, SVGA, XGA - 1000ft
1 x 1 - UXGA, VGA, SVGA, XGA - 1000ft
| Network (RJ-45) | Yes |
| Number of Output Devices Supported | 1 |
| Product Material | Metal |
| Brand Name | SmartAVI |
| Certifications & Standards | EIA 568A |
| Connectivity technology | Wired |
| Country of origin | United States |
| Input voltage | 5 V DC |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | VCA-100S |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | SmartAVI's VCA-100 uses a single CAT5 cable to extend high-resolution VGA video and stereo audio up to 1000 feet away from signal source devices. Powerful Cost-Effective VGA Extension Solution The VCA-100 is SmartAVI's most economical and easy-to-use VGA extension model. Offering up to 1000 feet worth of signal extension between transmitter (TX) and receiver (RX) units VCA-100 systems ensure high quality playback via a cost-efficient CAT5 cable. VGA Extension in Any AV Environment A great fit in a vast array of environments VCA-100 systems excel in airports schools retail spaces medical facilities and media-centric environments of all kinds. Cost-conscious users will swoon for VCA-100's economical CAT5 cabling and AV integrators of any technical level can install VCA-100 easily thanks to its plug-and-play design.
Features: - Uses easy to install inexpensive CAT-5/5e/6/7/8.
- Output reaches up to 1000 feet (300m).
- Supports high resolution clear video up to 1920x1200.
- HDTV compatible (720p 1080i1080p).
- 300 MHz Bandwidth.
- Sends high-resolution XVGA and Stereo Audio signals.
- Compatible with VGA XGA Sun MAC and SGI Signals.
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in lightning power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact metal case enclosure.
- Optional power supply for remote unit.
- Remote Units come with Buffered Outputs.
|
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Package Contents | - 1 x VCA-100-TX Transmitter Unit
- 1 x VCA-100-RX Receiver Unit
- 2 x PS5VDC2A Power Supplies
- CCVGAMM06 Cable
- 1 x Quick Start and Installation Guide
|
| Product Name | UXGA/Audio Point-to-Point CAT5 Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 8 |
| UPC Alternates | 011650963867 813280011143 813280023863 |
