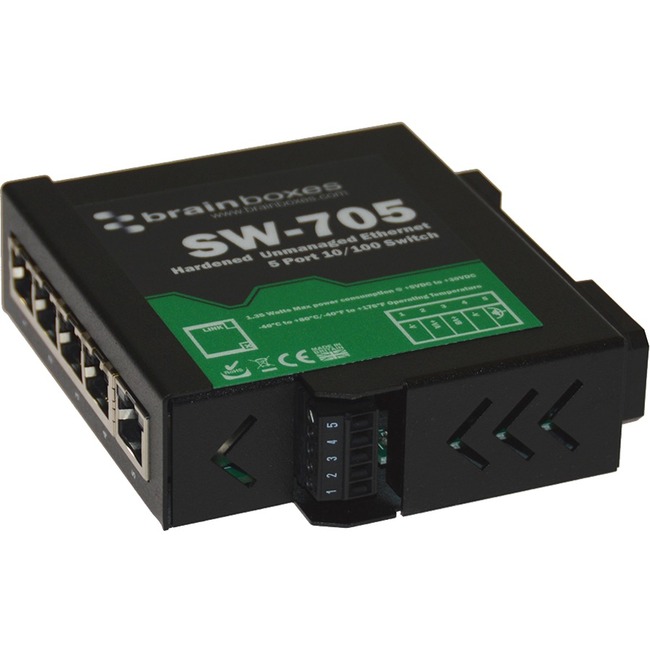

Brainboxes Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty
5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty
| Total Number of Network Ports | 5 |
| Brand Name | Brainboxes |
| Country of origin | United Kingdom |
| Depth | 3.7" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Height | 1.1" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-705 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor in vehicle and marine applications. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Package Contents | - Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable
- Quick Start Guide
|
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Power source | USB |
| Power source | AC Adapter |
| Product Name | Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| UPC Alternates | 818275332661 837324004182 |
| Weight (Approximate) | 9.52 oz |
| Width | 3.9" |
