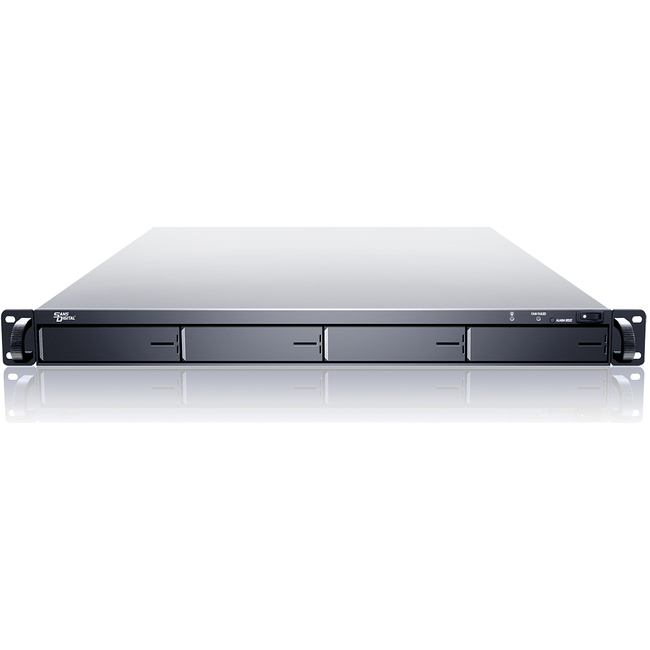

Sans Digital EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black) - 4 x HDD Supported - 12 TB Supported HDD Capacity - RAID Supported 0, 1, 3, 5, 10, Clone Mode (N-Way Mirror), JBOD, 0, 1, 10, 3, 5, Clone Mode (N-Way Mirror) - 4 x Total Bays - 4 x 3.5" Bay - 1U - Rack-mountable
4 x HDD Supported - 12 TB Supported HDD Capacity - RAID Supported 0, 1, 3, 5, 10, Clone Mode (N-Way Mirror), JBOD, 0, 1, 10, 3, 5, Clone Mode (N-Way Mirror) - 4 x Total Bays - 4 x 3.5" Bay - 1U - Rack-mountable
| Maximum Power Supply Wattage | 150 W |
| Total Hard Drive Capacity Supported | 12 TB |
| Certifications & Standards | |
| Country of origin | Taiwan |
| Depth | 15" |
| Drive Interface | Serial ATA |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Host interface | USB 3.0 |
| Host interface | eSATA |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | KT-ER104UT+B |
| Manufacturer Website Address | http://www.sansdigital.com |
| Marketing Information | The EliteRAID ER104UT+B is a 4-bay hardware RAID 5 rackmount storage unit that utilizes high performance USB 3.0 and eSATA interfaces to provide over 200MB/s in performance. The included USB 3.0 is backwards compatible with the widely available USB 2.0 port which is a convenient feature when both USB 3.0 and eSATA connections are unavailable. With built-in RAID 0 1 10 3 5+hot-spare and JBOD the ER104UT+B provides hardware RAID redundancy protection against hard drive failures. A brand new RAID mode CLONE or N-Way Mirror is also introduced to replicate the saved data throughout each of the installed hard drives. The RAID engine is embedded within the enclosure and performs all RAID parity calculations to reduce CPU utilization from the host computer RAID controller cards are no longer necessary. |
| Number of Total Expansion Bays | 4 |
| Package Contents | - EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black)
- 1 x Power Cord
- 1 x eSATA Cable
- 1 x USB 3.0 Cable
- 1 x Set of Screws
- 1 x Quick Installation Manual & CD
|
| Platform Supported | PC |
| Platform Supported | Mac |
| Product Line | EliteRAID |
| Product Model | ER104UT+B |
| Product Name | EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black) |
| Product Type | DAS Storage System |
| Rack Height | 1U |
| RAID Levels | 0 |
| RAID Levels | Clone Mode (N-Way Mirror) |
| RAID Levels | 5 |
| RAID Levels | 3 |
| RAID Levels | 10 |
| RAID Levels | 0 1 3 5 10 Clone Mode (N-Way Mirror) JBOD |
| RAID Levels | 1 |
| UPC Alternates | 739410736819 |
| Weight (Approximate) | 18 lb |
| Width | 19" |
