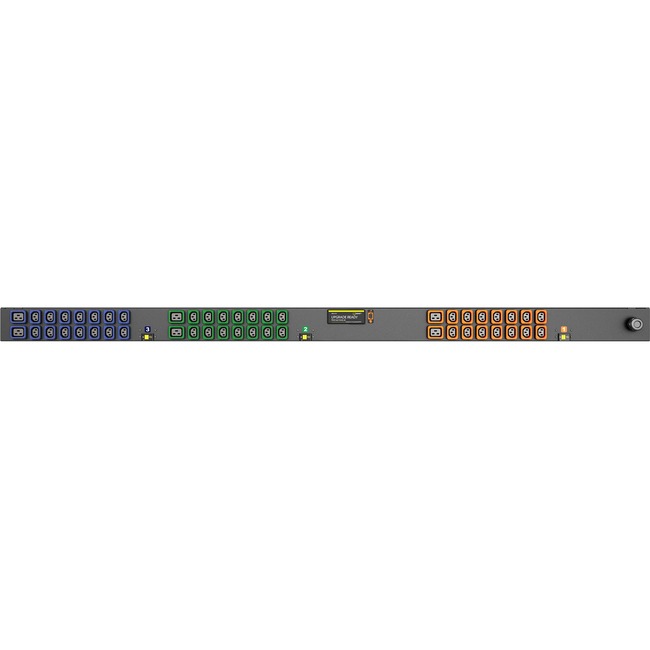

Geist MN01X9W1-48MI18-6PS6B0A10-S 48-Outlets PDU
| $1,568.27 Retail $2,074.00 |
- PDU improves efficiency, uptime and growth of data centers
- Basic PDU is the space-saving and cost-effective way to deliver power
Basic - 2P+E (IP44) - 42 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC - Vertical - Rack-mountable
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Basic |
| PDU Type | Basic |
| Phase | Three Phase |
| Phase | Three Phase |
| Plug/Connector Detail | 1 x 2P+E (IP44) |
| Plug/Connector Detail | 1 x 2P+E (IP44) |
| Power Rating (Watt) | 9900 W |
| Power Rating (Watt) | 9900 W |
| Receptacle Detail | 42 x U-Lock IEC 60320 C13 |
| Receptacle Detail | 42 x U-Lock IEC 60320 C13 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Brand Name | Geist |
| Brand Name | Geist |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 3.4" |
| Depth | 3.4" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Input current | 60 A |
| Input current | 60 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Length | 72" |
| Length | 72" |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | I10029L |
| Manufacturer Part Number | I10029L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | I10029L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption. |
| Marketing Information | I10029L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | 2P+E (IP44) |
| Plug/Connector Type | 2P+E (IP44) |
| Product Model | MN01X9W1-48MI18-6PS6B0A10-S |
| Product Model | MN01X9W1-48MI18-6PS6B0A10-S |
| Product Name | MN01X9W1-48MI18-6PS6B0A10-S 48-Outlets PDU |
| Product Name | MN01X9W1-48MI18-6PS6B0A10-S 48-Outlets PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Protection Type | Overcurrent Protection |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Width | 3.8" |
| Width | 3.8" |
