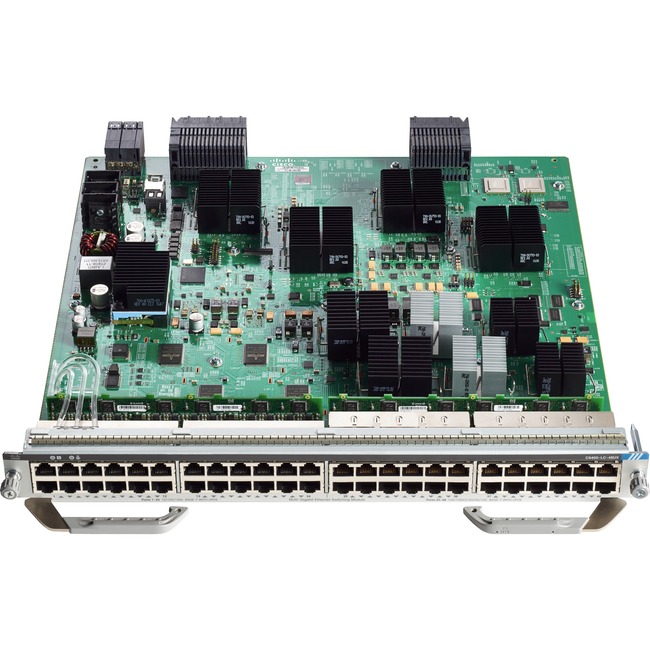

Cisco Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45 - For Data Networking - 24 x RJ-45 10GBase-T UPoE LAN, 24 x RJ-45 10/100/1000Base-T UPoE LAN - Twisted Pair10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - Plug-in Module
For Data Networking - 24 x RJ-45 10GBase-T UPoE LAN, 24 x RJ-45 10/100/1000Base-T UPoE LAN - Twisted Pair10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - Plug-in Module
| Interfaces/Ports Details | 24 x RJ-45 10/100/1000Base-T UPoE LAN |
| Interfaces/Ports Details | 24 x RJ-45 10GBase-T UPoE LAN |
| Interfaces/Ports Details | 24 x RJ-45 10GBase-T UPoE LAN |
| Interfaces/Ports Details | 24 x RJ-45 10/100/1000Base-T UPoE LAN |
| Interfaces/Ports Details | 24 x RJ-45 10/100/1000Base-T UPoE LAN |
| Interfaces/Ports Details | 24 x RJ-45 10GBase-T UPoE LAN |
| Application/Usage | Data Networking |
| Application/Usage | Data Networking |
| Application/Usage | Data Networking |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Compatibility | Cisco Catalyst 9400 Series Supervisor Engines:
- C9400-SUP-1
- C9400-SUP-1XL
|
| Compatibility | Cisco Catalyst 9400 Series Supervisor Engines:
- C9400-SUP-1
- C9400-SUP-1XL
|
| Compatibility | Cisco Catalyst 9400 Series Supervisor Engines:
- C9400-SUP-1
- C9400-SUP-1XL
|
| Connector Type | RJ-45 |
| Connector Type | RJ-45 |
| Connector Type | RJ-45 |
| Depth | 14.6" |
| Depth | 14.6" |
| Depth | 14.6" |
| Environmental Certification | RoHS-5 |
| Environmental Certification | RoHS-5 |
| Environmental Certification | RoHS-5 |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Plug-in Module |
| Form factor | Plug-in Module |
| Form factor | Plug-in Module |
| Height | 1.6" |
| Height | 1.6" |
| Height | 1.6" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | C9400-LC-48UX= |
| Manufacturer Part Number | C9400-LC-48UX= |
| Manufacturer Part Number | C9400-LC-48UX= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco Catalyst 9400 Series Multigigabit line card The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 port Multigigabit ports and 24 10/100/1000 Mbps Ports provides the solution you need to support newer applications such as 802.11ac Wave 2 access points with your existing Ethernet access cabling. Multigigabit switch ports allow automatic negotiation of 100-Mbps 1-Gbps 2.5-Gbps and 5-Gbps speeds on existing Category 5e and 6 cable and all the way up to 10-Gbps speeds over Category 6 cabling. The Multigigabit Ethernet line card supports Power over Ethernet (PoE) PoE Plus (PoE+) and Cisco Universal PoE (Cisco UPOE) to deliver 15W 30W or 60W to the access point. Cisco remains the only vendor that can provide 60W to power downstream devices in a next-generation workspace. So you can power more devices-IP phones IPTVs surveillance cameras virtual desktop clients and many others-without having to install extra wall or ceiling circuits while taking advantage of advanced power management capabilities such as Cisco EnergyWise®. You can now realize all of these Cisco UPOE benefits in a single switching platform while enabling Multigigabit Wi-Fi speeds. Features - 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports
- Speeds of 100/1000 Mbps 2.5/5 Gbps and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports
- Nonblocking up to 1000 Mbps on all ports
- RJ-45 interface on all ports
- Supported on Cisco IOS® XE Software Release 16.6.2 or later
- Cisco UPOE: Capable of up to 60W on all ports in the line card
- Energy Efficient Ethernet 802.3az on all 10/100/1000 ports
- IEEE 802.3bz Multigigabit Ethernet standard on the Multigigabit ports
- IEEE 802.3af/at and Cisco prestandard PoE
- IEEE 802.1AE and Cisco TrustSec® capability in hardware (software roadmap)
- Hardware ready for IEEE1588/802.1AS Precision Time Protocol (PTP) used for time synchronization across the network for applications such as video and audio (software roadmap)
- L2-4 Jumbo Frame support (up to 9198 bytes)
- Enterprise and commercial: Designed to power next-generation IP phones wireless access points wireless base stations video cameras virtual desktop clients and other PoE/Cisco UPOE devices
- Support for campus and branch applications requiring enhanced performance for large file transfers and network backups
|
| Marketing Information | Cisco Catalyst 9400 Series Multigigabit line card The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 port Multigigabit ports and 24 10/100/1000 Mbps Ports provides the solution you need to support newer applications such as 802.11ac Wave 2 access points with your existing Ethernet access cabling. Multigigabit switch ports allow automatic negotiation of 100-Mbps 1-Gbps 2.5-Gbps and 5-Gbps speeds on existing Category 5e and 6 cable and all the way up to 10-Gbps speeds over Category 6 cabling. The Multigigabit Ethernet line card supports Power over Ethernet (PoE) PoE Plus (PoE+) and Cisco Universal PoE (Cisco UPOE) to deliver 15W 30W or 60W to the access point. Cisco remains the only vendor that can provide 60W to power downstream devices in a next-generation workspace. So you can power more devices-IP phones IPTVs surveillance cameras virtual desktop clients and many others-without having to install extra wall or ceiling circuits while taking advantage of advanced power management capabilities such as Cisco EnergyWise®. You can now realize all of these Cisco UPOE benefits in a single switching platform while enabling Multigigabit Wi-Fi speeds. Features - 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports
- Speeds of 100/1000 Mbps 2.5/5 Gbps and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports
- Nonblocking up to 1000 Mbps on all ports
- RJ-45 interface on all ports
- Supported on Cisco IOS® XE Software Release 16.6.2 or later
- Cisco UPOE: Capable of up to 60W on all ports in the line card
- Energy Efficient Ethernet 802.3az on all 10/100/1000 ports
- IEEE 802.3bz Multigigabit Ethernet standard on the Multigigabit ports
- IEEE 802.3af/at and Cisco prestandard PoE
- IEEE 802.1AE and Cisco TrustSec® capability in hardware (software roadmap)
- Hardware ready for IEEE1588/802.1AS Precision Time Protocol (PTP) used for time synchronization across the network for applications such as video and audio (software roadmap)
- L2-4 Jumbo Frame support (up to 9198 bytes)
- Enterprise and commercial: Designed to power next-generation IP phones wireless access points wireless base stations video cameras virtual desktop clients and other PoE/Cisco UPOE devices
- Support for campus and branch applications requiring enhanced performance for large file transfers and network backups
|
| Marketing Information | Cisco Catalyst 9400 Series Multigigabit line card The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 port Multigigabit ports and 24 10/100/1000 Mbps Ports provides the solution you need to support newer applications such as 802.11ac Wave 2 access points with your existing Ethernet access cabling. Multigigabit switch ports allow automatic negotiation of 100-Mbps 1-Gbps 2.5-Gbps and 5-Gbps speeds on existing Category 5e and 6 cable and all the way up to 10-Gbps speeds over Category 6 cabling. The Multigigabit Ethernet line card supports Power over Ethernet (PoE) PoE Plus (PoE+) and Cisco Universal PoE (Cisco UPOE) to deliver 15W 30W or 60W to the access point. Cisco remains the only vendor that can provide 60W to power downstream devices in a next-generation workspace. So you can power more devices-IP phones IPTVs surveillance cameras virtual desktop clients and many others-without having to install extra wall or ceiling circuits while taking advantage of advanced power management capabilities such as Cisco EnergyWise®. You can now realize all of these Cisco UPOE benefits in a single switching platform while enabling Multigigabit Wi-Fi speeds. Features - 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports
- Speeds of 100/1000 Mbps 2.5/5 Gbps and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports
- Nonblocking up to 1000 Mbps on all ports
- RJ-45 interface on all ports
- Supported on Cisco IOS® XE Software Release 16.6.2 or later
- Cisco UPOE: Capable of up to 60W on all ports in the line card
- Energy Efficient Ethernet 802.3az on all 10/100/1000 ports
- IEEE 802.3bz Multigigabit Ethernet standard on the Multigigabit ports
- IEEE 802.3af/at and Cisco prestandard PoE
- IEEE 802.1AE and Cisco TrustSec® capability in hardware (software roadmap)
- Hardware ready for IEEE1588/802.1AS Precision Time Protocol (PTP) used for time synchronization across the network for applications such as video and audio (software roadmap)
- L2-4 Jumbo Frame support (up to 9198 bytes)
- Enterprise and commercial: Designed to power next-generation IP phones wireless access points wireless base stations video cameras virtual desktop clients and other PoE/Cisco UPOE devices
- Support for campus and branch applications requiring enhanced performance for large file transfers and network backups
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-T |
| Product Model | C9400-LC-48UX |
| Product Model | C9400-LC-48UX |
| Product Model | C9400-LC-48UX |
| Product Name | Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45 |
| Product Name | Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45 |
| Product Name | Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45 |
| Product Type | Expansion Module |
| Product Type | Expansion Module |
| Product Type | Expansion Module |
| Total Number of Ports | 48 |
| Total Number of Ports | 48 |
| Total Number of Ports | 48 |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 5e |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 5e |
| Twisted Pair Cable Standard | Category 5e |
| UPC Alternates | 889728044059 |
| UPC Alternates | 889728044059 |
| UPC Alternates | 889728044059 |
| Width | 14.9" |
| Width | 14.9" |
| Width | 14.9" |
