Tripp Lite 40G to 10G Breakout Cassette 2 12-Fiber MTP/MPO to 12 LC Duplex - 12 x LC Duplex, 2 x MTP - 14 Port(s) - 14 x RJ-11 - 12 x Duplex - 2 x MT Port(s)"
12 x LC Duplex, 2 x MTP - 14 Port(s) - 14 x RJ-11 - 12 x Duplex - 2 x MT Port(s)"
| LC Port Type | Duplex |
| Number of LC Ports | 12 |
| Number of MT Ports | 2 |
| Number of RJ-11 Ports | 14 |
| Shipping Depth | 7.50" |
| Shipping Height | 1.80" |
| Shipping Width | 5.80" |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 3.8" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.4" |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N484-2M12-LC12 |
| Manufacturer Website Address | http://www.tripplite.com |

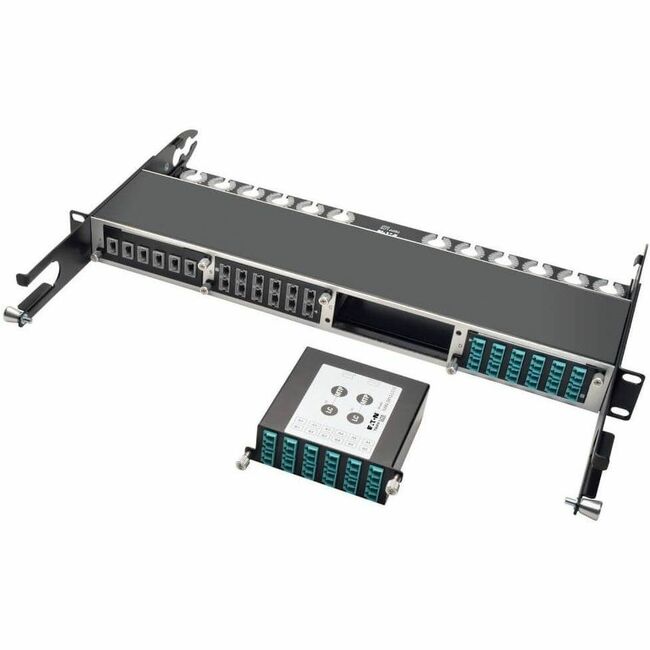

| Marketing Information | Tripp Lite's N484-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette with (x12) LC connections to (x2) 12-Fiber OM4 MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U or 1 per N484-00U. Supports 40GbE internally using OM4 fiber optic cable with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with (x2) 12-Fiber MTP/MPO cables breaking out to (x12) LC Duplex fiber connections. 12-Fiber MTP ports are Polarity B Optimized for Parallel Optics Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables such as the N820- N821- and N844-Series cables. Installation is simple with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty 1.0mm Cold Rolled Steel. |
| Package Contents | - 40Gb to 10Gb Breakout Cassette (x2) 12-Fiber MTP/MPO to ( x12 ) LC Duplex
- Quick Start Guide
|
| Product color | Black |
| Product Name | 40Gb to 10Gb Breakout Cassette (x2) 12-Fiber MTP/MPO to ( x12 ) LC Duplex |
| Product Type | Network Patch Panel |
| Shipping Weight (Approximate) | 0.9 lb |
| UPC Alternates | 037332187185 |
| Weight (Approximate) | 11.20 oz |
| Width | 4.4" |
