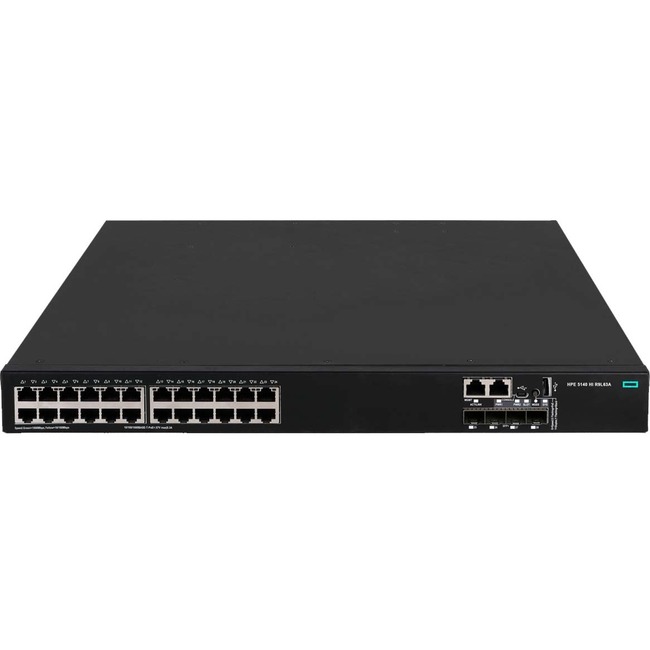

HPE FlexNetwork 5140 24G PoE+ 4SFP+ HI Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 928 W Power Consumption - 720 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 2 Layer Supported - Modular - 928 W Power Consumption - 720 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
| Compatible Rack Unit | 1U |
| Compatible Rack Unit | 1U |
| Number of SFP+ Slots | 4 |
| Number of SFP+ Slots | 4 |
| Number of Total Expansion Slots | 5 |
| Number of Total Expansion Slots | 5 |
| PoE Budget | 720 W |
| PoE Budget | 720 W |
| Total Number of Network Ports | 24 |
| Total Number of Network Ports | 24 |
| Brand Name | HPE |
| Brand Name | HPE |
| Depth | 18.1" |
| Depth | 18.1" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | SFP+ |
| Form factor | Cabinet Mount |
| Form factor | Cabinet Mount |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Height | 1.7" |
| Input voltage | 60 V DC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 60 V DC |
| Input voltage | 48 V DC |
| Input voltage | 48 V DC |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9L63A |
| Manufacturer Part Number | R9L63A |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.
These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency QoS features for better reliability iNQA for real time network health performance and capacity visibility hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC) provides embedded network management enhanced network visibility and automation.
FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches - The HPE FlexNetwork 5140 HI Switch series uses Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler flatter more agile and resilient networks.
- Supports 10GbE uplinks static and RIP routing PoE+ ACLs IPv6 for improved and cost-effective network performance.
- DRNI enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also provides access to the aggregate bandwidth and simplifies network topology by virtualizing two physical devices into a logical device.
- iNQA helps in measuring network packet loss performance forward reverse and two-way packet loss including lost number of messages and bytes message loss and byte loss rate.
- Dual redundant hot-swappable power supplies maintain a dynamic and highly available network switch delivering up to 1440 Watts of PoE+ for powered cameras phones and wireless Access Points.
Robust Quality of Service (QoS) - The HPE FlexNetwork 5140 HI Switch series supports advanced classifier based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port VLAN or the entire switch.
- Provides extensive traffic prioritization with strict priority (SP) queuing weighted round robin (WRR) and SP+WRR.
- Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.
|
| Marketing Information | The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.
These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency QoS features for better reliability iNQA for real time network health performance and capacity visibility hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC) provides embedded network management enhanced network visibility and automation.
FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches - The HPE FlexNetwork 5140 HI Switch series uses Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler flatter more agile and resilient networks.
- Supports 10GbE uplinks static and RIP routing PoE+ ACLs IPv6 for improved and cost-effective network performance.
- DRNI enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also provides access to the aggregate bandwidth and simplifies network topology by virtualizing two physical devices into a logical device.
- iNQA helps in measuring network packet loss performance forward reverse and two-way packet loss including lost number of messages and bytes message loss and byte loss rate.
- Dual redundant hot-swappable power supplies maintain a dynamic and highly available network switch delivering up to 1440 Watts of PoE+ for powered cameras phones and wireless Access Points.
Robust Quality of Service (QoS) - The HPE FlexNetwork 5140 HI Switch series supports advanced classifier based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port VLAN or the entire switch.
- Provides extensive traffic prioritization with strict priority (SP) queuing weighted round robin (WRR) and SP+WRR.
- Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1ae |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1ad |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1ae |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1ad |
