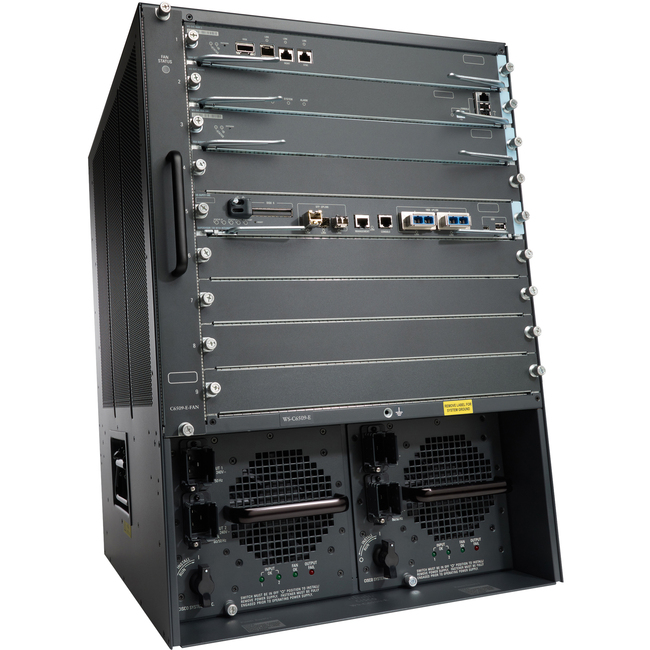

Cisco Catalyst 6509 Enhanced Vertical Chassis - Manageable - 3 Layer Supported - Twisted Pair - PoE Ports - 21U High - Rack-mountable - 90 Day Limited Warranty
Manageable - 3 Layer Supported - Twisted Pair - PoE Ports - 21U High - Rack-mountable - 90 Day Limited Warranty
| Compatible Rack Unit | 21U |
| Compatible Rack Unit | 21U |
| Number of Total Expansion Slots | 9 |
| Number of Total Expansion Slots | 9 |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Certifications & Standards | Industry Standard: - GR-63-Core NEBS Level 3 (pending)
- GR-1089-Core NEBS Level 3 (pending)
- ETS 300 019 Storage Class 1.1
- ETS 300 019 Transportation Class 2.3
- ETS 300 019 Stationary Use Class 3.1
Electromagnetic Emission: - FCC Part 15 (CFR 47) Class A
- VCCI Class A
- EN55022 Class A
- CISPR 22 Class A
- CE marking
- AS/NZS 3548 Class A
- ETS300 386
- EN55024
- EN61000-6-1
- EN50082-1
Safety: - UL 60950
- CSA-C22.2 No. 60950
- EN 60950
- IEC 60950
- AS/NZS 60950/TS001
|
| Certifications & Standards | Industry Standard: - GR-63-Core NEBS Level 3 (pending)
- GR-1089-Core NEBS Level 3 (pending)
- ETS 300 019 Storage Class 1.1
- ETS 300 019 Transportation Class 2.3
- ETS 300 019 Stationary Use Class 3.1
Electromagnetic Emission: - FCC Part 15 (CFR 47) Class A
- VCCI Class A
- EN55022 Class A
- CISPR 22 Class A
- CE marking
- AS/NZS 3548 Class A
- ETS300 386
- EN55024
- EN61000-6-1
- EN50082-1
Safety: - UL 60950
- CSA-C22.2 No. 60950
- EN 60950
- IEC 60950
- AS/NZS 60950/TS001
|
| Depth | 20.7" |
| Depth | 20.7" |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 36.8" |
| Height | 36.8" |
| Input voltage | 220 V AC |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Input voltage | 110 V AC |
| Layer Supported | 3 |
| Layer Supported | 3 |
| Limited Warranty | 90 Day |
| Limited Warranty | 90 Day |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-C6509-V-E= |
| Manufacturer Part Number | WS-C6509-V-E= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco® introduces the Cisco Catalyst® 6509 Enhanced Vertical Chassis as part of the Cisco Catalyst 6500 Series of enhanced (E-Series) switches delivering chassis with up to 1440 Gbps of system bandwidth capacity (80 Gbps/slot) enhanced cable management and front-to-back airflow optimized for hot aisle/cold aisle designs in data center and service provider colocation (NEBS-L3 compliant) deployments. |
| Marketing Information | Cisco® introduces the Cisco Catalyst® 6509 Enhanced Vertical Chassis as part of the Cisco Catalyst 6500 Series of enhanced (E-Series) switches delivering chassis with up to 1440 Gbps of system bandwidth capacity (80 Gbps/slot) enhanced cable management and front-to-back airflow optimized for hot aisle/cold aisle designs in data center and service provider colocation (NEBS-L3 compliant) deployments. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| MTBF | 225000 Hour |
| MTBF | 225000 Hour |
| Power source | Power Supply |
| Power source | Power Supply |
| Product Family | Catalyst 6500 |
| Product Family | Catalyst 6500 |
| Product Line | Catalyst |
| Product Line | Catalyst |
| Product Model | 6509 |
| Product Model | 6509 |
| Product Name | Catalyst 6509 Enhanced Vertical Chassis |
| Product Name | Catalyst 6509 Enhanced Vertical Chassis |
| Product Series | 6500 |
| Product Series | 6500 |
| Product Type | Switch Chassis |
| Product Type | Switch Chassis |
| Twisted Pair Cable Standard | Category 6a |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 882658480348 |
| UPC Alternates | 882658480348 |
| Width | 17.2" |
| Width | 17.2" |
