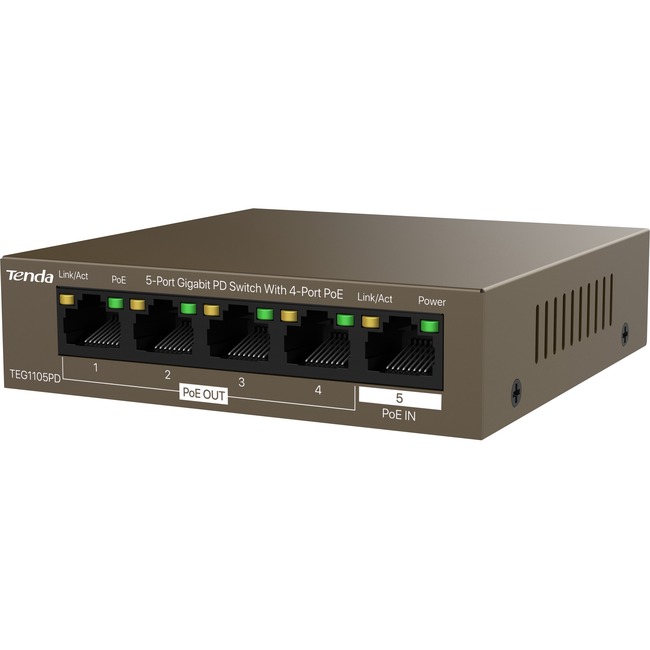

Tenda TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 30 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable, Rack-mountable
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 30 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable, Rack-mountable
| Network (RJ-45) | Yes |
| PoE Budget | 30 W |
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Brand Name | Tenda |
| Ethernet Technology | Gigabit Ethernet |
| Features | Fanless |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Form factor | Wall Mountable |
| Height | 1" |
| Input voltage | 57 V DC |
| Input voltage | 50 V DC |
| Layer Supported | 2 |
| Length | 3.9" |
| Manufacturer | Tenda Technology Inc |
| Manufacturer Part Number | TEG1105PD |
| Manufacturer Website Address | http://www.tendaus.com |
| Marketing Information | Featuring low cost high performance and plug & play the PoE switch TEG1105PD is both a PSE and a PD designed for such surveillance networking scenarios as roads in parks/communities medium to large factories and colleges. Small and delicate it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.
Key Feature - Five 10/100/1000 Mbps auto-negotiation ports
- Port 5 supports power supply by a PSE compliant with IEEE 802.3af/at
- Ports 1 - 4 support power supply to low-power PDs compliant with IEEE 802.3af
- The switch supports auto MDI/MDIX simplifing the network structure and maintenance.
- The non-blocking wire-speed forwarding function guarantees the smooth operation of network applications.
- Full-duplex flow control and half-duplex back pressure control prevent frame loss caused by port blocking
- The switch supports the store-and-forward transfer mode and a 2 K MAC address table.
- The switch supports 9K jumbo frame improving the forwarding rate of large files.
- The switch supports IP camera connection and guarantees the smoothness and clearness of monitoring videos.
Gbps data transmission
The transmission rate of 5 Gigabit ports can reach up to 2000 Mbps in full-duplex mode. Full wire-speed forwarding functionality on all ports guarantees the smooth transmission of the surveillance videos monitored by HD IP cameras.
Integrated PSE & PD
The switch can be powered by an IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4.
6 kV lightning protection
This switch provides short circuit protection for PSE and 6 kV lightning protection for all ports protecting the switch itself to operate steadily from surge and lightning damages in thunderstorms.
PoE Relay for long-distance network
As a relay the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports.
Plug and play
With the plug and play functionality the switch can be used directly after it is connected to a PSE with an Ethernet cable reducing breakdowns as well as operation and maintenance cost. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet PoE |
| Power source | PoE |
| Power source | Power Supply |
| Product Name | TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE |
| Product Type | Ethernet Switch |
| UPC Alternates | 885397273394 |
