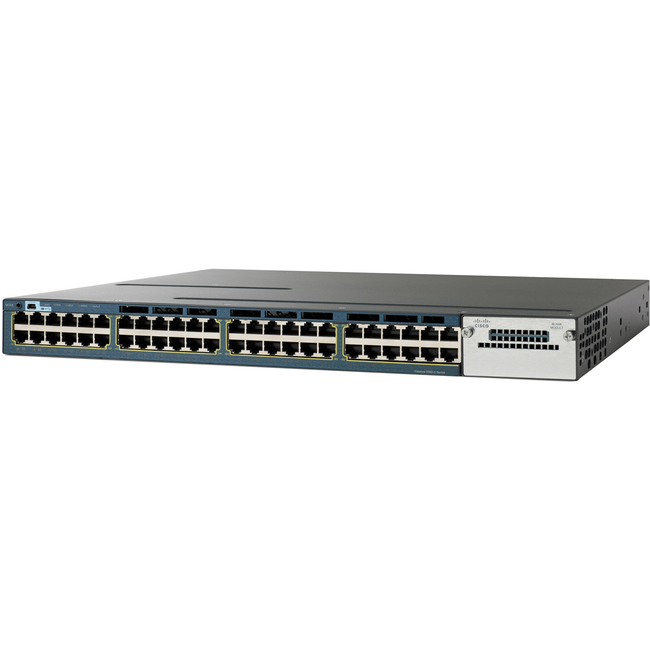

Cisco Catalyst 3560-X Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Power Supply - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Power Supply - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of PoE+ (RJ-45) Ports | 48 |
| Number of Total Expansion Slots | 1 |
| Brand Name | Cisco |
| Certifications & Standards | - IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ad (LACP)
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1s
- IEEE 802.1ae
EMI and EMC Compliance: - FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN 55022 Class A
- CISPR 22 Class A
- AS/NZS 3548 Class A
- BSMI Class A
- VCCI Class A
- EN 55024
- EN300386
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN 61000-6-1
Safety Compliance: - UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- CCC
|
| Depth | 18" |
| Environmental Certification | RoHS-5 |
| Ethernet Technology | Gigabit Ethernet |
| Flash memory | 64 MB |
| Form factor | Rack-mountable |
| Height | 1.8" |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Management | - Web-Based Management
- Command Line Interface
- SNMP v1 v2c v3
- RMON 1 2 3 9
- Syslog
- Telnet
- DHCP
- VLAN
- QoS
- MIB
|
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WS-C3560X-48P-E |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches respectively. These switches provide high availability scalability security energy efficiency and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750-X) IEEE 802.3at Power over Ethernet Plus (PoE+) configurations optional network modules redundant power supplies and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony wireless and video for borderless network experience. |
| Media Type Supported | Twisted Pair |
| Memory Technology | DRAM |
| MTBF | 149594 Hour |
| Network Technology | 10/100/1000Base-T |
| Power source | Power Supply |
| Product Family | Catalyst 3560-X |
| Product Line | Catalyst |
| Product Name | Catalyst 3560-X Ethernet Switch |
| Product Series | 3560-X |
| Product Type | Ethernet Switch |
| Standard Memory | 256 MB |
| Token Ring Port | No |
| UPC Alternates | 882658517167 |
| Weight (Approximate) | 16.40 lb |
| Width | 17.5" |
