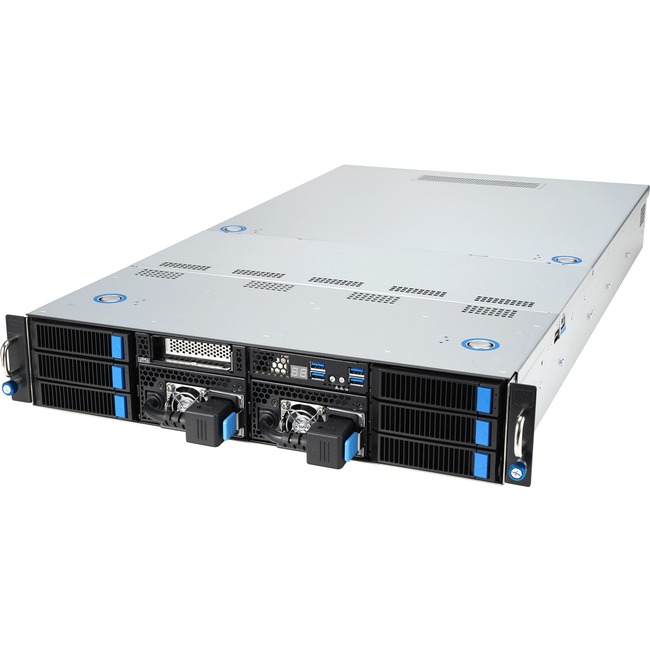

Asus Barebone System - 2U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support - AMD - AMD Chip - 3 TB DDR4 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 12 Total Memory Slots - Serial Attached SCSI (SAS), Serial ATA Controller - ASPEED AST2600 Graphic(s) - 2 2.5" Bay(s) - Processor Support (EPYC) - Gigabit Ethernet - 6 USB 3.2 Gen 1 Port(s) - 2 x 2600 W
AMD Chip - 3 TB DDR4 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 12 Total Memory Slots - Serial Attached SCSI (SAS), Serial ATA Controller - ASPEED AST2600 Graphic(s) - 2 2.5" Bay(s) - Processor Support (EPYC) - Gigabit Ethernet - 6 USB 3.2 Gen 1 Port(s) - 2 x 2600 W
| Chipset | AMD |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Maximum Memory Supported | 3 TB |
| Maximum Power Supply Wattage | 2600 W |
| Memory Standard | DDR5-4800/PC5-38400 |
| Number of Power Supplies Installed | 2 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| Supported Storage Drive Interfaces | PCI Express |
| Supported Storage Drive Interfaces | SAS |
| Brand Name | Asus |
| Controller Type | Serial Attached SCSI (SAS) |
| Controller Type | Serial ATA |
| Depth | 31.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ESC4000A-E12-26WGP |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | AMD EPYC™ 9004 single-processor 1U server that supports up to 24 DIMM 16 NVMe three PCIe® 5.0 slots two M.2 OCP 3.0 two single-slot GPUs and ASUS ASMB11-iKVM KEY FEATURES - Powerful performance: Powered by AMD EPYC 9004 processors with 96 Zen 4 cores 12-channel up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- AI and HPC workloads ready: Up to four dual-slot active or passive GPUs NVIDIA NVLink® bridge and NVIDIA Bluefield DPU support to enable performance scaling
- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation
- Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads
- Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and eight PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600 ASUS Control Center IT management software and hardware-level Root-of-Trust solution
Accelerate performance for HPC and AI workloads | Four dual-slot GPU compute in 2U ESC4000A-E12 is an AMD EPYC™ 9004 single-socket server built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs faster GPU interconnect and higher-bandwidth fabric and supports up to four dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge or AMD Infinity Fabric™ Link to enable scaling of performance with increased bandwidth - ready to match your AI and HPC workloads. PCIe 5.0 Ready | Faster storage graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth which is twice the speed of PCIe 4.0 and offers lower power consumption better lane scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalable designs to satisfy the increasing workloads or modern data centers. Sustainability | Keep your data center green Data centers can consume huge amounts of electricity raising environmental concerns. ASUS servers are designed to optimize both total cost of ownership (TCO) and total cost to the environment (TCE) including thermal design power efficiency and advanced cooling solutions - reducing the impact of our products on the planet. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 12 |
| Product Name | ESC4000A-E12 Barebone System |
| Product Series | ESC4000A-E12 |
| Product Type | Barebone System |
| Rack Height | 2U |
| Total Number of USB Ports | 6 |
| UPC Alternates | 197105036574 |
| Weight (Approximate) | 52.91 lb |
| Width | 17.3" |
