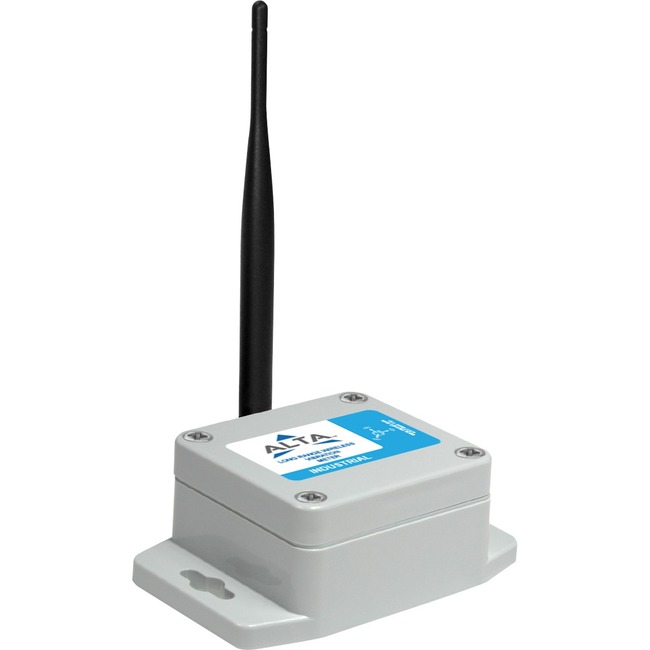

Monnit ALTA Industrial Wireless Accelerometer - Vibration Meter
New
Monnit ALTA Industrial Wireless Accelerometer - Vibration Meter - 1.4" Height
| Application/Usage | Vibration Monitoring |
| Application/Usage | Vibration Monitoring |
| Application/Usage | Vibration Monitoring |
| Brand Name | Monnit |
| Brand Name | Monnit |
| Brand Name | Monnit |
| Country of origin | United States |
| Country of origin | United States |
| Country of origin | United States |
| Height | 1.4" |
| Height | 1.4" |
| Height | 1.4" |
| Manufacturer | Monnit Corporation |
| Manufacturer | Monnit Corporation |
| Manufacturer | Monnit Corporation |
| Manufacturer Part Number | MNS2-9-IN-AC-VM |
| Manufacturer Part Number | MNS2-9-IN-AC-VM |
| Manufacturer Part Number | MNS2-9-IN-AC-VM |
| Manufacturer Website Address | http://www.monnit.com |
| Manufacturer Website Address | http://www.monnit.com |
| Manufacturer Website Address | http://www.monnit.com |
| Marketing Information | ALTA Vibration Meters use an accelerometer to measure g-force on 3 axis and then determine speed and frequency. They can be set to only capture when a vibration occurs and sleep when no vibrations are present or they can be set to measure at a given assessment interval regardless of whether a vibration has occurred. If set to always measure the sensitivity can be further adjusted to filter out noise. The Vibration Meter will also report the duty cycle or how long the sensor was measuring vibrations throughout the heartbeat. ALTA - Leading Enterprise Grade "Internet of Things" Solutions ALTA sensors offer 3 to 4 times the range of standard sensor platforms extending non-line-of-sight reach to an exceptional 1000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices. Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.
ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages) so security is maintained at all communication points from sensor to gateway gateway to software then back again. Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage Internet outage or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored at which point the messages will all be transmitted. Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available. Monnit ALTA Industrial Sensors come in an IP65 NEMA 4X CE rated sealed and weatherproof enclosure. They are powered by a single replaceable Industrial grade 3.6 V battery (included). An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell the battery alone could continue to power the sensor for up to 8-10 years.
|
| Marketing Information | ALTA Vibration Meters use an accelerometer to measure g-force on 3 axis and then determine speed and frequency. They can be set to only capture when a vibration occurs and sleep when no vibrations are present or they can be set to measure at a given assessment interval regardless of whether a vibration has occurred. If set to always measure the sensitivity can be further adjusted to filter out noise. The Vibration Meter will also report the duty cycle or how long the sensor was measuring vibrations throughout the heartbeat. ALTA - Leading Enterprise Grade "Internet of Things" Solutions ALTA sensors offer 3 to 4 times the range of standard sensor platforms extending non-line-of-sight reach to an exceptional 1000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices. Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.
ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages) so security is maintained at all communication points from sensor to gateway gateway to software then back again. Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage Internet outage or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored at which point the messages will all be transmitted. Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available. Monnit ALTA Industrial Sensors come in an IP65 NEMA 4X CE rated sealed and weatherproof enclosure. They are powered by a single replaceable Industrial grade 3.6 V battery (included). An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell the battery alone could continue to power the sensor for up to 8-10 years.
|
| Marketing Information | ALTA Vibration Meters use an accelerometer to measure g-force on 3 axis and then determine speed and frequency. They can be set to only capture when a vibration occurs and sleep when no vibrations are present or they can be set to measure at a given assessment interval regardless of whether a vibration has occurred. If set to always measure the sensitivity can be further adjusted to filter out noise. The Vibration Meter will also report the duty cycle or how long the sensor was measuring vibrations throughout the heartbeat. ALTA - Leading Enterprise Grade "Internet of Things" Solutions ALTA sensors offer 3 to 4 times the range of standard sensor platforms extending non-line-of-sight reach to an exceptional 1000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices. Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.
ALTA products employ Monnit's new Encrypt-RF™ Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages) so security is maintained at all communication points from sensor to gateway gateway to software then back again. Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage Internet outage or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored at which point the messages will all be transmitted. Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available. Monnit ALTA Industrial Sensors come in an IP65 NEMA 4X CE rated sealed and weatherproof enclosure. They are powered by a single replaceable Industrial grade 3.6 V battery (included). An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell the battery alone could continue to power the sensor for up to 8-10 years.
|
| Package Contents |
|
| Package Contents |
|
| Package Contents |
|
| Product Line | ALTA |
| Product Line | ALTA |
| Product Line | ALTA |
| Product Name | ALTA Industrial Wireless Accelerometer - Vibration Meter |
| Product Name | ALTA Industrial Wireless Accelerometer - Vibration Meter |
| Product Name | ALTA Industrial Wireless Accelerometer - Vibration Meter |
| Product Type | Wireless Accelerometer Vibration Meter |
| Product Type | Wireless Accelerometer Vibration Meter |
| Product Type | Wireless Accelerometer Vibration Meter |
| UPC Alternates | 857211007362 |
| UPC Alternates | 857211007362 |
| UPC Alternates | 857211007362 |
