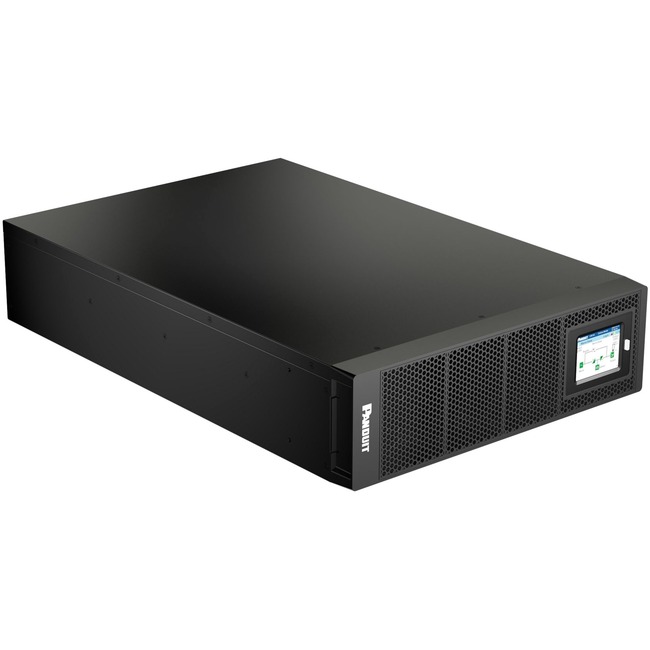

Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS

Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS

New
Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port
0 Review(s) Item: U10N11V | By: Panduit |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Rack/Tower convertible: Supports rack/tower installation with rotatable colorful touchscreen LCD panel
  • Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
  • Wide input voltage range: 110-280Vac covering extended voltage range, applicable for severe situation such as large power grid fluctuation
  • High efficiency: Up to 98%, reducing the energy waste and the cost of electricity
  • Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
  • Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
  • Output unity power factor: Means more active power for IT equipment load
  • Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
  • Expandable battery
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port
6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port

Product Specifications

DC System Voltage240 V DC
Load Capacity (VA)10000 VA
Load Capacity (Watt)10 kW
Maximum Operating Elevation9842.52 ft
Output Frequency60 Hz
Overload ProtectionYes
PhaseSingle Phase
Receptacle Detail2 x NEMA L6-30R
Waveform TypePure Sine Wave
Additional Warranty Information
  • 3 Years for UPS & EBP
  • 2 Years for Battery
Application/UsageIT Equipment
Application/UsageEdge Computing
Application/UsageData Center
Application/UsageComputer
Backup/Run Time (Full Load)4.50 Minute
Backup/Run Time (Half Load)12.90 Minute
Battery capacity9000 mAh
Battery CharacteristicsValve-regulated/Maintenance-free/Hot-swappable
Battery Size12V
Brand NamePanduit
Depth26.2"
Environmental CertificationREACH
Environmental CertificationENERGY STAR 2.0
Environmental CertificationRoHS
Form factorRack/Tower/Rail
Height5.2"
Input frequency70 Hz
Input voltage230 V AC
Input voltage120 V AC
Input Voltage Range110 V AC - 285 V AC
Input Voltage Range185 V AC - 264 V AC
Limited Warranty3 Year
Load Capacity10000 VA/10 kW
ManufacturerPANDUIT CORP
Manufacturer Part NumberU10N11V
Manufacturer Website Addresshttp://www.panduit.com
Marketing InformationThe Panduit® SmartZone™ UPS with maintenance free VRLA battery 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT Infrastructure.
Maximum Operating Temperature104°F (40°C)
Number of Batteries20
Output voltage208 V AC
Output voltage240 V AC
Plug/Connector TypeHard Wire 3-wire (2PH + G)
Product colorBlack
Product LineSmartZone
Product NameSmartZone U10N11V 10000VA Rack/Tower/Rail UPS
Product TypeDouble Conversion Online UPS
Rack Height6U
Receptacle TypeNEMA L6-30R
Sound Emission58 dB
Status Indicators

Colorful LCD with cold start button and LED indicators

Surge energy rating600 J
Thermal Dissipation581.75 W
Transfer Time0 ns
Typical Battery Recharge Time6 Hour
Weight (Approximate)191.80 lb
Width17.3"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
