| Cache Memory | No |
| SAS Connector Details | Two x8 SFF-8654 |
| Total Number of SAS Ports | 16 |
| Brand Name | Lenovo |
| Controller Type | 12Gb/s SAS |
| Device Supported | Server |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Host interface | PCI Express 4.0 x8 |
| Limited Warranty | 1 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A78835 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The ThinkSystem RAID 540 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0 1 and 10 and include an extensive list of RAS and management features. |
| Operating System Supported | VMware ESXi 7.0 U3 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | VMware ESXi 6.7 U3 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Operating System Supported | VMware ESXi 7.0 U2 |
| Platform Supported | PC |
| Product Model | 540-16i |

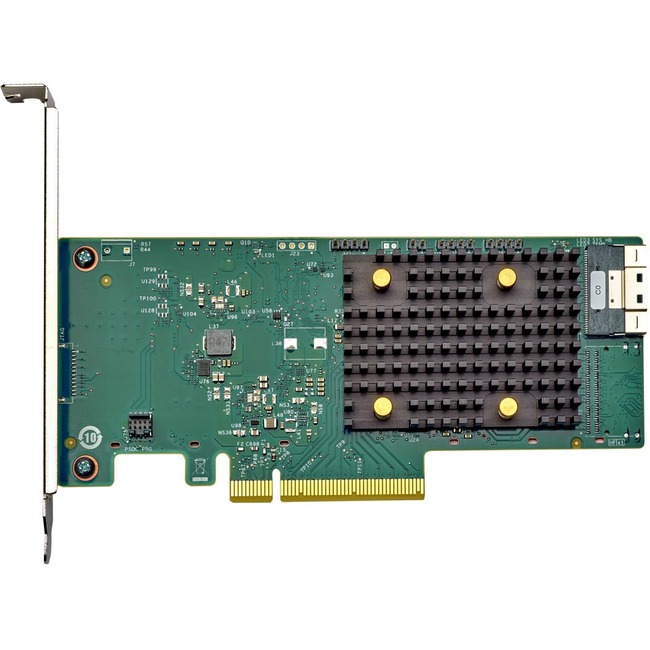

| Product Name | ThinkSystem RAID 540-16i PCIe Gen4 12Gb Adapter |
| Product Type | SAS Controller |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | JBOD |
| UPC Alternates | 889488626045 |
