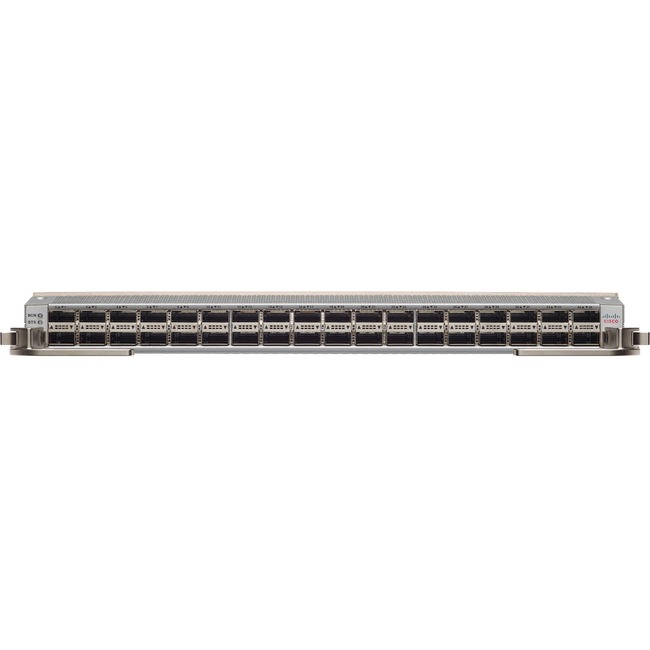

Cisco NCS 5500 Series 36-Port 100GE MACsec Base Line Card - For Optical Network, Data NetworkingOptical Fiber100 Gigabit Ethernet, 40 Gigabit Ethernet, 10 Gigabit Ethernet - 100GBase-X, 40GBase-X, 10GBase-X - 36 x Expansion Slots - QSFP28
For Optical Network, Data NetworkingOptical Fiber100 Gigabit Ethernet, 40 Gigabit Ethernet, 10 Gigabit Ethernet - 100GBase-X, 40GBase-X, 10GBase-X - 36 x Expansion Slots - QSFP28
| Number of Total Expansion Slots | 36 |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Brand Name | Cisco |
| Compatibility | Cisco 5500 Series Network Convergence System |
| Depth | 17.1" |
| Ethernet Technology | 40 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Expansion Slot Type | QSFP28 |
| Height | 1.7" |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | NC55-36X100G-S |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Based on the Cisco Global Cloud Index digitalization is projected to grow global data center and public/private cloud network traffic more than 25 percent annually resulting in a threefold increase by 2019. To help network providers meet these challenges the Cisco® Network Convergence System 5500 Series is built with features such as extremely high port densities deep packet buffering and forwarding hardware optimized for these types of deployments. The Cisco NCS 5500 Series modular chassis provides a wide variety of combo line cards to address the customer's need to use flexible interfaces and port densities along with full bandwidth utilization of the forwarding ASIC. The Cisco NCS 5500 Series also offers a cost-effective solution while being able to support over1 million entries Forwarding Information Base (FIB) scale on this base version of the line card. These line cards are capable of advanced packet forwarding segment routing programmable network management and telemetry along with the robust and mature features already present in 64-bit Cisco IOS® XR Software. |
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-X |
| Network Technology | 40GBase-X |
| Network Technology | 10GBase-X |
| Product Name | NCS 5500 Series 36-Port 100GE MACsec Base Line Card |
| Product Type | Expansion Module |
| Weight (Approximate) | 15.32 lb |
| Width | 16.9" |
