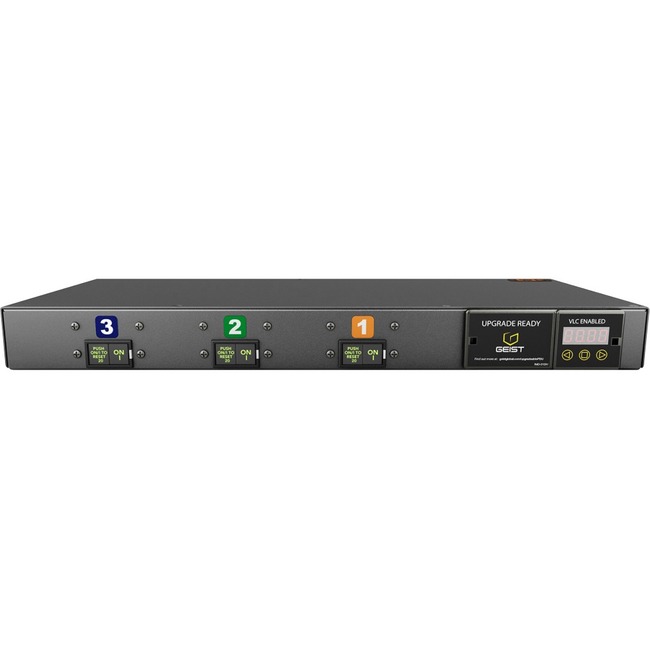

Geist MN01D1R1-06L198-3TL15A0H10-S 6-Outlets PDU
| $859.85 Retail $1,139.00 |
- Electric power fitted to racks of computers and networking equipment within a data center
- You can always avoid potential overloads with PDU meter
Metered - NEMA L15-30P - 6 x U-Lock IEC 60320 C19 - 120 V AC, 230 V AC - 1U - Horizontal - Rack-mountable
Product Specifications
| Mounting Orientation | Horizontal |
| Mounting Orientation | Horizontal |
| PDU Type | Metered |
| PDU Type | Metered |
| Phase | Three Phase |
| Phase | Three Phase |
| Plug/Connector Detail | 1 x NEMA L15-30P |
| Plug/Connector Detail | 1 x NEMA L15-30P |
| Power Rating (Watt) | 8600 W |
| Power Rating (Watt) | 8600 W |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Brand Name | Geist |
| Brand Name | Geist |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 8.5" |
| Depth | 8.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 1.7" |
| Height | 1.7" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 120 V AC - 208 V AC |
| Input Voltage Range | 120 V AC - 208 V AC |
| Limited Warranty | 5 Year |
| Limited Warranty | 5 Year |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | I10117L |
| Manufacturer Part Number | I10117L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The I10117L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10117L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Marketing Information | The I10117L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology I10117L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module without causing any interruption. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | NEMA L15-30P |
| Plug/Connector Type | NEMA L15-30P |
| Product Model | MN01D1R1-06L198-3TL15A0H10-S |
| Product Model | MN01D1R1-06L198-3TL15A0H10-S |
| Product Name | MN01D1R1-06L198-3TL15A0H10-S 6-Outlets PDU |
| Product Name | MN01D1R1-06L198-3TL15A0H10-S 6-Outlets PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Protection Type | Overcurrent Protection |
| Rack Height | 1U |
| Rack Height | 1U |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Width | 17" |
| Width | 17" |
