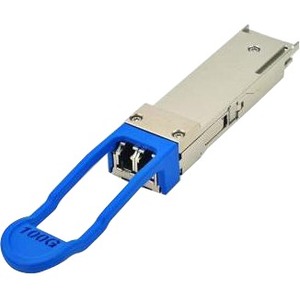

Chelsio SM100G-LR: 100G Long Reach QSFP28 Optical Module - For Optical Network, Data Networking - 1 x 100GBase-LR4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-LR4 - Hot-pluggable
For Optical Network, Data Networking - 1 x 100GBase-LR4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-LR4 - Hot-pluggable
| Fiber Mode Supported | Single-mode |
| Interfaces/Ports Details | 1 x 100GBase-LR4 Network |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Brand Name | Chelsio |
| Compatibility | Chelsio Unified Wire Adapters:
- T62100-CR
- T62100-LP-CR
- T62100-SO-CR
- T61100-OCP
|
| Environmental Certification | RoHS-6 |
| Environmental Certification | TÜV |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Form factor | Hot-pluggable |
| Manufacturer | Chelsio Communications |
| Manufacturer Part Number | SM100G-LR |
| Manufacturer Website Address | http://www.chelsio.com |
| Marketing Information | Chelsio's SM100G-LR 100Gb/s QSFP28 long reach transceiver modules are designed for 100 Gigabit Ethernet links over single mode fiber up to 10 km and certified for use with Chelsio's 100-Gigabit Ethernet Unified Wire adapters. The optical module offers a cost-effective and power-efficient network connectivity solution for high-speed data applications.
The Chelsio SM100G-LR optical module is compatible with Chelsio's T6-based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other data center applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE and iWARP RDMA IPsec TLS/SSL DTLS and SMB 3.X crypto processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.
Characteristics
Chelsio's SM100G-LR QSFP28 transceiver modules are fully compliant with IEEE 802.3ba and IEEE 802.3bj specifications; and adhere to RoHS-6 standards.
The T6 adapters with SM100G-LR transceiver modules enable a unified wire for LAN SAN and cluster traffic. Built upon a combination of high bandwidth and low latency architecture the T6 solution offers a complete set of storage and cluster protocols operating over Ethernet (iSCSI FCoE and iWARP).
T6 solution's port-to-port and adapter-to-adapter failover features are ideal for critical applications that require redundancy and high-availability capabilities. Full Software suite was run with these optical modules and Chelsio recommends using these transceiver modules only with Chelsio adapters to allow the adapter warranty and support structure to remain intact. |
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-LR4 |
| Product Name | SM100G-LR: 100G Long Reach QSFP28 Optical Module |
| Product Type | QSFP28 |
| Total Number of Ports | 1 |
| UPC Alternates | 897709002929 |
