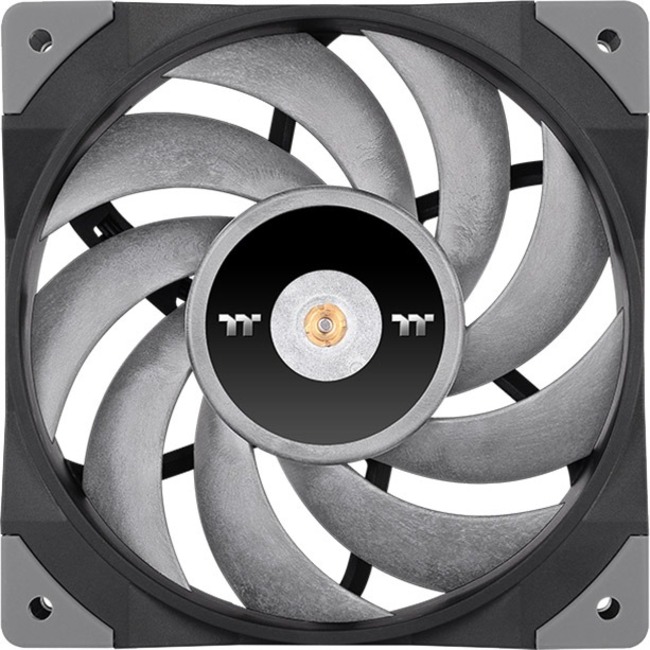

Thermaltake TOUGHFAN 12 Turbo High Static Pressure Radiator Fan (Single Fan Pack) - 1 Pack
- Up to 2500 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
- Features hydraulic bearing to improve longevity, silence, and stability
Connectors | 4 PIN PWM |
Connectors | 4 PIN PWM |
Fan Bearing Type | Hydraulic Bearing |
Fan Bearing Type | Hydraulic Bearing |
Fan Depth | 0.98" |
Fan Depth | 0.98" |
Fan Height | 4.72" |
Fan Height | 4.72" |
Fan Life | 4.6 Year |
Fan Life | 4.6 Year |
Fan Speed (Max) | 2500 rpm |
Fan Speed (Max) | 2500 rpm |
Fan Speed (Min) | 500 rpm |
Fan Speed (Min) | 500 rpm |
Fan Speed (Min) | 500 rpm |
Fan Speed (Min) | 500 rpm |
Material Details |
|
Material Details |
|
Maximum Air Pressure | 3.78mmH2O |
Maximum Air Pressure | 3.78mmH2O |
Maximum Airflow | 543.8 gal/min |
Maximum Airflow | 543.8 gal/min |
Noise Levels | 28.1 dB(A) |
Noise Levels | 28.1 dB(A) |
Noise Levels (A-Weighted) | 28.1 dB(A) |
Rated Current | 230 mA |
Rated Current | 230 mA |
Brand Name | Thermaltake |
Brand Name | Thermaltake |
Country of origin | China |
Limited Warranty | 2 Year |
Limited Warranty | 2 Year |
Manufacturer | Thermaltake Technology Co. Ltd |
Manufacturer | Thermaltake Technology Co. Ltd |
Manufacturer Part Number | CL-F121-PL12GM-A |
Manufacturer Part Number | CL-F121-PL12GM-A |
Manufacturer Website Address | http://www.thermaltakeusa.com |
Manufacturer Website Address | http://www.thermaltakeusa.com |
Marketing Information | Thermaltake TOUGHFAN Turbo is a PWM controlled high static pressure fan with a maximum operating speed of up to 2500 RPM fulfilling users' high-end cooling needs. ToughFan Series | Superb Cooling Performance at 2500 RPM TOUGHFAN Turbo is a PWM controlled fan with a maximum operating speed of up to 2500 RPM bringing our users the ultimate cooling experience. Exceptional Grey Fan Blades Featuring high tensile strength and low thermal expansion coefficient material the THOUGHFAN Turbo is designed with grey colored liquid crystal polymer (LCP) made fan blades minimizing vibration when the fan operates at full speed. Metal-Reinforced Motor Hub The TOUGHFAN's center is constructed with a full steel motor hub providing enhanced stability and durability. 2nd Generation Hydraulic Bearing The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan. High Air Pressure and High Airflow TOUGHFAN Series is designed to produce high static pressure and airflow providing users impeccable cooling results. Anti-Vibration Mounting System The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners maintaining low noise levels when in operation. |
Marketing Information | Thermaltake TOUGHFAN Turbo is a PWM controlled high static pressure fan with a maximum operating speed of up to 2500 RPM fulfilling users' high-end cooling needs. ToughFan Series | Superb Cooling Performance at 2500 RPM TOUGHFAN Turbo is a PWM controlled fan with a maximum operating speed of up to 2500 RPM bringing our users the ultimate cooling experience. Exceptional Grey Fan Blades Featuring high tensile strength and low thermal expansion coefficient material the THOUGHFAN Turbo is designed with grey colored liquid crystal polymer (LCP) made fan blades minimizing vibration when the fan operates at full speed. Metal-Reinforced Motor Hub The TOUGHFAN's center is constructed with a full steel motor hub providing enhanced stability and durability. 2nd Generation Hydraulic Bearing The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan. High Air Pressure and High Airflow TOUGHFAN Series is designed to produce high static pressure and airflow providing users impeccable cooling results. Anti-Vibration Mounting System The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners maintaining low noise levels when in operation. |
Packaged Quantity | 1 |
Packaged Quantity | 1 |
Product color | Gray |
Product color | Black |
Product color | Black |
Product color | Gray |
Product Line | TOUGHFAN 12 |
Product Line | TOUGHFAN 12 |
Product Name | TOUGHFAN 12 Turbo High Static Pressure Radiator Fan (Single Fan Pack) |
Product Name | TOUGHFAN 12 Turbo High Static Pressure Radiator Fan (Single Fan Pack) |
Product Type | Cooling Fan |
Product Type | Cooling Fan |
UPC Alternates | 841163078167 |
UPC Alternates | 841163078167 |
Weight (Approximate) | 7.68 oz |
Weight (Approximate) | 7.68 oz |
