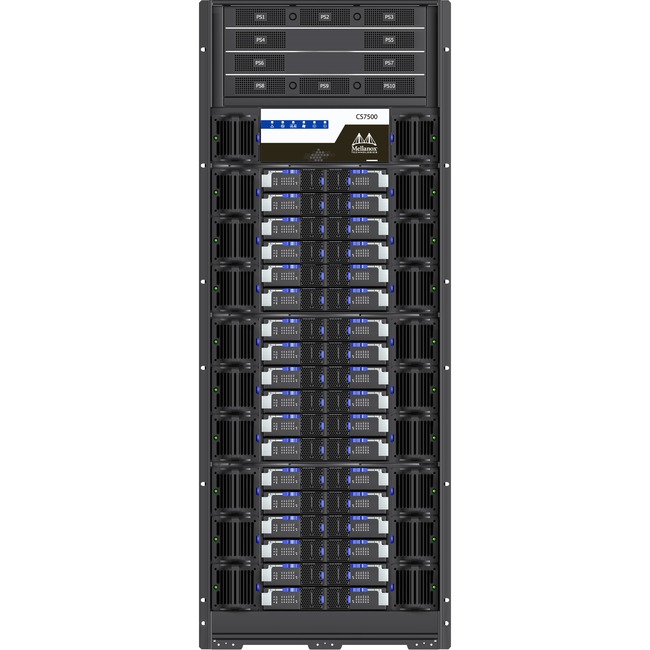

HPE Mellanox InfiniBand EDR 648 -port Switch Chassis - Manageable - 100 Gigabit Ethernet - 100GBase-X - Modular - Optical Fiber - 28U High - Rack-mountable - 3 Year Limited Warranty
Manageable - 100 Gigabit Ethernet - 100GBase-X - Modular - Optical Fiber - 28U High - Rack-mountable - 3 Year Limited Warranty
| Compatible Rack Unit | 28U |
| Compatible Rack Unit | 28U |
| Number of Total Expansion Slots | 38 |
| Number of Total Expansion Slots | 38 |
| Brand Name | HPE |
| Brand Name | HPE |
| Depth | 30.3" |
| Depth | 30.3" |
| Environmental Certification | RoHS-6 |
| Environmental Certification | RoHS-6 |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Expansion Slot Type | Management Module |
| Expansion Slot Type | Line Card |
| Expansion Slot Type | Switch Fabric |
| Expansion Slot Type | Line Card |
| Expansion Slot Type | Management Module |
| Expansion Slot Type | Switch Fabric |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 49" |
| Height | 49" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | 843188-B21 |
| Manufacturer Part Number | 843188-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | Mellanox InfiniBand Switch Chassis
Mellanox InfiniBand (IB) EDR Modular Switches are supported to work with HPE InfiniBand Adapters to deliver high performance connectivity for HPC clusters using HPE ProLiant XL and DL Server families. The Modular switches feature the Mellanox Switch-B™ 2 ASIC and include three chassis with 216 ports 324 ports and 648 ports respectively.
The Mellanox InfiniBand EDR Switch is ideally suited for customers who deploy high-performance clusters based on HPE ProLiant
XL and DL Servers using InfiniBand technology. |
| Marketing Information | Mellanox InfiniBand Switch Chassis
Mellanox InfiniBand (IB) EDR Modular Switches are supported to work with HPE InfiniBand Adapters to deliver high performance connectivity for HPC clusters using HPE ProLiant XL and DL Server families. The Modular switches feature the Mellanox Switch-B™ 2 ASIC and include three chassis with 216 ports 324 ports and 648 ports respectively.
The Mellanox InfiniBand EDR Switch is ideally suited for customers who deploy high-performance clusters based on HPE ProLiant
XL and DL Servers using InfiniBand technology. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-X |
| Network Technology | 100GBase-X |
| Package Contents | - Mellanox InfiniBand EDR 648 -port Switch Chassis
- 10 x Power Supplies
- 10 x PDU Power Cards
- 20 x Fan Units
- Rack kit and cable management kit
|
| Package Contents | - Mellanox InfiniBand EDR 648 -port Switch Chassis
- 10 x Power Supplies
- 10 x PDU Power Cards
- 20 x Fan Units
- Rack kit and cable management kit
|
| Port/Expansion Slot Details | 18 x 100 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 20 x Expansion Slot |
| Port/Expansion Slot Details | 20 x Expansion Slot |
| Port/Expansion Slot Details | 18 x 100 Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Power source | Power Supply |
| Product Name | Mellanox InfiniBand EDR 648 -port Switch Chassis |
| Product Name | Mellanox InfiniBand EDR 648 -port Switch Chassis |
| Product Type | Switch Chassis |
| Product Type | Switch Chassis |
| UPC Alternates | 190017011011 |
| UPC Alternates | 190017011011 |
| Uplink Port | No |
| Uplink Port | No |
| Weight (Approximate) | 814.61 lb |
| Weight (Approximate) | 814.61 lb |
| Width | 17.6" |
| Width | 17.6" |
