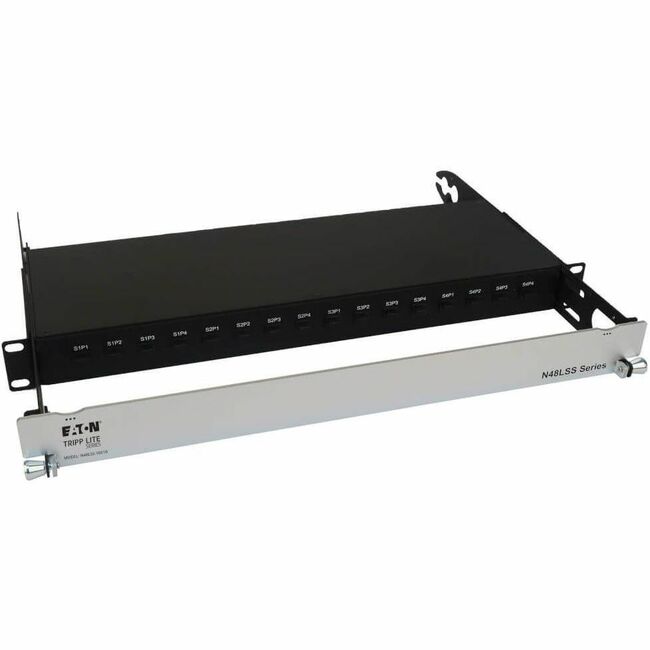

Tripp Lite N48LSS-16X16 Spine-Leaf MPO Panel, 16 x 16 Ports, 1U

New

Tripp Lite N48LSS-16X16 Spine-Leaf MPO Panel, 16 x 16 Ports, 1U - 32 Port(s) - 1U High - Black - 19" Wide - Rack-mountable

0 Review(s) Item: N48LSS-16X16 | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

1U patch panel designed for cost-effective spine-and-leaf network cabling
Replaces standard MTP/MPO-to-LC cross-connect to reduce troubleshooting and labor
All-in-one solution for 9/125 singlemode OS2 8-fiber network cabling
Front and rear wire managers help organize cables and eliminate clutter
Mounts easily into 1U of space in your EIA-standard 19 in. rack or cabinet
This product is covered by a Lifetime Limited Warranty (coverage details)

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite Spine-Leaf MPO Panel 16x16 Port MTP/MPO Adapter SMF MTP/MPO-PC - 32 Port(s) - 1U High - Black - 19" Wide - Rack-mountable
32 Port(s) - 1U High - Black - 19" Wide - Rack-mountable

Product Specifications

Compatible Rack Unit	1U
Compatible Rack Unit	1U
Compatible Rack Unit	1U
Compatible Rack Width	19"
Compatible Rack Width	19"
Compatible Rack Width	19"
Product Material	Aluminum
Product Material	Aluminum
Product Material	Aluminum
Shipping Depth	14.90"
Shipping Depth	14.90"
Shipping Depth	14.90"
Shipping Height	3.60"
Shipping Height	3.60"
Shipping Height	3.60"
Shipping Width	20.90"
Shipping Width	20.90"
Shipping Width	20.90"
Additional Information	OVERVIEW Technology Fiber Optical Mode OS2 Fiber Panel Ports (32) MTP/MPO Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Clad Diameter (microns) 125 Core Diameter (microns) 9 Number of Fibers 8 COMMUNICATIONS Network Compatibility 100 Gbps; 40 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36dB/KM Attenuation @ 1550NM 0.22dB/KM Insertion Loss ?0.70dB CONNECTIONS Side A - Connector 1 (16) 12-STRAND MTP/MPO (MALE) Side B - Connector 1 (16) 12-STRAND MTP/MPO (MALE) Endface Polish APC Connector Color Black FEATURES & SPECIFICATIONS Keystone Jacks No All-in-One Kit Yes Down-Angled Ports No Built-in Cables Yes Color-Coded Connections No Numbered Ports Yes EIA/TIA 2/32 Spacing No Labeled Ports Yes Network Speed Support 100 Gbps; 40 Gbps; 400 Gbps Optical Port MPO/MTP Breakout No Trunk No
Additional Information	OVERVIEW Technology Fiber Optical Mode OS2 Fiber Panel Ports (32) MTP/MPO Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Clad Diameter (microns) 125 Core Diameter (microns) 9 Number of Fibers 8 COMMUNICATIONS Network Compatibility 100 Gbps; 40 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36dB/KM Attenuation @ 1550NM 0.22dB/KM Insertion Loss ?0.70dB CONNECTIONS Side A - Connector 1 (16) 12-STRAND MTP/MPO (MALE) Side B - Connector 1 (16) 12-STRAND MTP/MPO (MALE) Endface Polish APC Connector Color Black FEATURES & SPECIFICATIONS Keystone Jacks No All-in-One Kit Yes Down-Angled Ports No Built-in Cables Yes Color-Coded Connections No Numbered Ports Yes EIA/TIA 2/32 Spacing No Labeled Ports Yes Network Speed Support 100 Gbps; 40 Gbps; 400 Gbps Optical Port MPO/MTP Breakout No Trunk No
Additional Information	OVERVIEW Technology Fiber Optical Mode OS2 Fiber Panel Ports (32) MTP/MPO Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Clad Diameter (microns) 125 Core Diameter (microns) 9 Number of Fibers 8 COMMUNICATIONS Network Compatibility 100 Gbps; 40 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36dB/KM Attenuation @ 1550NM 0.22dB/KM Insertion Loss ?0.70dB CONNECTIONS Side A - Connector 1 (16) 12-STRAND MTP/MPO (MALE) Side B - Connector 1 (16) 12-STRAND MTP/MPO (MALE) Endface Polish APC Connector Color Black FEATURES & SPECIFICATIONS Keystone Jacks No All-in-One Kit Yes Down-Angled Ports No Built-in Cables Yes Color-Coded Connections No Numbered Ports Yes EIA/TIA 2/32 Spacing No Labeled Ports Yes Network Speed Support 100 Gbps; 40 Gbps; 400 Gbps Optical Port MPO/MTP Breakout No Trunk No
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Certifications & Standards	CE
Certifications & Standards	CE
Certifications & Standards	CE
Country of origin	China
Country of origin	China
Country of origin	China
Depth	14.8"
Depth	14.8"
Depth	14.8"
Environmental Certification	REACH
Environmental Certification	REACH
Environmental Certification	REACH
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Form factor	Rack-mountable
Form factor	Rack-mountable
Form factor	Rack-mountable
Height	1.7"
Height	1.7"

Height	1.7"
Limited Warranty	Lifetime
Limited Warranty	Lifetime
Limited Warranty	Lifetime
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N48LSS16X16
Manufacturer Part Number	N48LSS-16X16
Manufacturer Part Number	N48LSS16X16
Manufacturer Part Number	N48LSS-16X16
Manufacturer Part Number	N48LSS-16X16
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports to eliminate rack clutter. 1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down This network patch panel is designed for spine-and-leaf architecture which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth low-latency non-blocking server-to-server connectivity which saves you money simplifies your rack cabling and improves network performance. All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf The groundbreaking N48LSS-16X16 contains a complete spine-and-leaf mesh topology resulting in less labor less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching double cassette or user cable shuffling is required with spine-and-leaf architecture which improves link performance. Easy to Mount in Just 1U of Rack Space This aluminum panel with key-up to key-down MTP/MPO adapter features 32 12-fiber MTP/MPO-APC male ports: 16 front spine ports and 16 rear leaf ports. The N48LSS-16X16 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.
Marketing Information	1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports to eliminate rack clutter. 1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down This network patch panel is designed for spine-and-leaf architecture which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth low-latency non-blocking server-to-server connectivity which saves you money simplifies your rack cabling and improves network performance. All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf The groundbreaking N48LSS-16X16 contains a complete spine-and-leaf mesh topology resulting in less labor less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching double cassette or user cable shuffling is required with spine-and-leaf architecture which improves link performance. Easy to Mount in Just 1U of Rack Space This aluminum panel with key-up to key-down MTP/MPO adapter features 32 12-fiber MTP/MPO-APC male ports: 16 front spine ports and 16 rear leaf ports. The N48LSS-16X16 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.
Marketing Information	1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports to eliminate rack clutter. 1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down This network patch panel is designed for spine-and-leaf architecture which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth low-latency non-blocking server-to-server connectivity which saves you money simplifies your rack cabling and improves network performance. All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf The groundbreaking N48LSS-16X16 contains a complete spine-and-leaf mesh topology resulting in less labor less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching double cassette or user cable shuffling is required with spine-and-leaf architecture which improves link performance. Easy to Mount in Just 1U of Rack Space This aluminum panel with key-up to key-down MTP/MPO adapter features 32 12-fiber MTP/MPO-APC male ports: 16 front spine ports and 16 rear leaf ports. The N48LSS-16X16 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.
Package Contents	N48LSS-16X16 Spine-Leaf MPO Panel 16 x 16 Ports 1U Owner's Manual
Package Contents	N48LSS-16X16 Spine-Leaf MPO Panel 16 x 16 Ports 1U Owner's Manual
Package Contents	N48LSS-16X16 Spine-Leaf MPO Panel 16 x 16 Ports 1U Owner's Manual
Product color	Black
Product color	Black
Product color	Black
Product Line	Spine-Leaf
Product Line	Spine-Leaf
Product Line	Spine-Leaf
Product Model	N48LSS-16X16
Product Model	N48LSS-16X16
Product Name	N48LSS-16X16 Spine-Leaf MPO Panel 16 x 16 Ports 1U
Product Name	N48LSS-16X16 Spine-Leaf MPO Panel 16 x 16 Ports 1U
Product Name	N48LSS-16X16 Spine-Leaf MPO Panel 16 x 16 Ports 1U
Product Type	Network Patch Panel
Product Type	Network Patch Panel
Product Type	Network Patch Panel
Shipping Weight (Approximate)	7.50 lb
Shipping Weight (Approximate)	7.50 lb
Shipping Weight (Approximate)	7.50 lb
Total Number of Ports	32
Total Number of Ports	32
Total Number of Ports	32
UPC Alternates	037332268785
UPC Alternates	037332268785
UPC Alternates	037332268785
Width	17.6"
Width	17.6"
Width	17.6"
