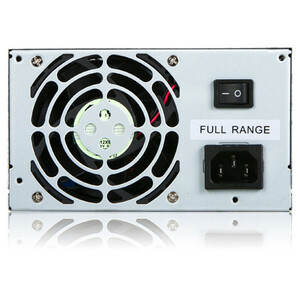

Xeal 700W PS2 ATX High Efficiency Switching Power Supply - Internal - 3.3 V DC @ 24 A, 5 V DC @ 30 A, 12 V DC @ 16 A, -12 V DC @ 500 mA, 5 V DC @ 4 A Output - 700 W - Active PFC - 4 +12V Rails - 1 Fan(s) - 80% Efficiency
Internal - 3.3 V DC @ 24 A, 5 V DC @ 30 A, 12 V DC @ 16 A, -12 V DC @ 500 mA, 5 V DC @ 4 A Output - 700 W - Active PFC - 4 +12V Rails - 1 Fan(s) - 80% Efficiency
| Input Voltage Type | AC |
| Number of +12V Rails | 4 |
| Plug/Connector | On/Off Switch |
| Power Factor Correction (PFC) | Active |
| Specification Compliance | ATX12V/EPS12V |
| Specification Compliance | ATX12V/EPS12V |
| Brand Name | Xeal |
| Compatibility | iStarUSA Chassis:
- D-260HB
- D-260HN
- D-380HN
- D-380HB
- D-3100HN
- D-3100HB
|
| Country of origin | China |
| Depth | 5.5" |
| Efficiency | 80% |
| Environmental Certification | RoHS |
| Environmental Certification | 80 Plus |
| Environmentally Friendly | Yes |
| Form factor | Internal |
| Height | 3.4" |
| Manufacturer | iStarUSA Inc |
| Manufacturer Part Number | TC-700PD8B |
| Manufacturer Website Address | http://www.istarusa.com |
| Marketing Information | The TC-700PD8B high performance switching power supply. Front load ball bearing cooling fan provides optimal airflow to keep the system fully operating. 80 Plus high efficiency saves you on electric bills and less cooling requirement. TC-700PD8B is the ideal power supply for server and high-end gaming workstation. |
| MTBF | 100000 Hour |
| Number of Fans | 1 |
| Output power | 700 W |
| Output voltage | 12 V DC @ 16 A |
| Output voltage | 3.3 V DC @ 24 A |
| Output voltage | -12 V DC @ 500 mA |
| Output voltage | 5 V DC @ 30 A |
| Output voltage | 5 V DC @ 4 A |
| Product Name | 700W PS2 ATX High Efficiency Switching Power Supply |
| Product Type | Power Supply |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Receptacles | 1 x 4+4pin ATX12V Motherboard |
| Receptacles | 2 x 6+2pin PCI-E |
| Receptacles | 4 x Serial ATA |
| Receptacles | 5 x 4-pin LP4 Peripheral Device |
| Receptacles | 1 x 20+4pin ATX Motherboard |
| UPC Alternates | 846813034814 |
| Width | 5.9" |
