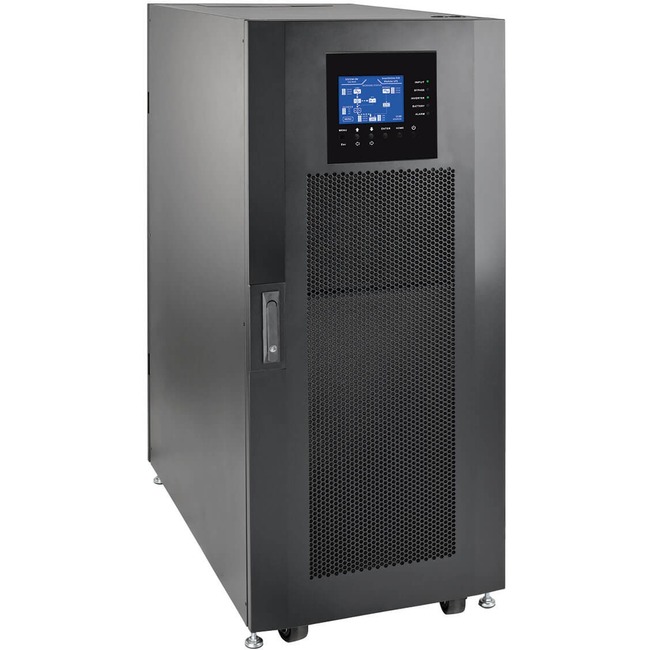

Tripp Lite 20kVA Smart Online 3-Phase UPS Small Frame Modular 1 Battery - 3.90 Minute Full Load - 8 Minute Half Load - 20 kVA / 18 kW - SNMP Manageable, SSH, TelnetHard Wire 4-wire (3P + N + E) - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower
3.90 Minute Full Load - 8 Minute Half Load - 20 kVA / 18 kW - SNMP Manageable, SSH, TelnetHard Wire 4-wire (3P + N + E) - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower
| Phase | Three Phase |
| Waveform Type | Pure Sine Wave |
| Backup/Run Time (Full Load) | 3.90 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 43.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Tower |
| Height | 58.1" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 120 V AC - 220 V AC |
| Limited Warranty | 1 Year |
| Load Capacity | 20 kVA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SV20KS1P1B |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Overview The SV20KS1P1B SmartOnline® SV Series 20kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure uninterrupted power protection. Featuring a modular scalable design with high-efficiency voltage and frequency independent (VFI) operation this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.
The SV20KS1P1B includes pre-installed input bypass and output breakers as well as a static transfer switch (STS) one 20kVA SV20PM power module and one SVBM battery module. Space is included for up to two additional user-installable SV20PM power modules and two SVBM internal battery modules. External ±120VDC battery options such as BP240V370 are also available from Tripp Lite for even more extended runtime. |
| Network Management | Telnet |
| Network Management | SNMP Manageable |
| Network Management | SSH |
| Package Contents | - SmartOnline SV 20KVA Tower UPS
- Pre-installed WEBCARDLX Network Interface
- 1 x SV20PM 20kVA Power Module
- 1 x SVBM Battery module
- DB9 Cabling
- Owner's Manual
|
| Plug/Connector Type | Hardwired |
| Product Family | SmartOnline SV |
| Product Line | SmartOnline |
| Product Name | SmartOnline SV 20KVA Tower UPS |
| Product Series | SV |
| Product Type | Dual Conversion Online UPS |
| Receptacle Type | Hard Wire 4-wire (3P + N + E) |
| Weight (Approximate) | 901 lb |
| Width | 23.6" |
