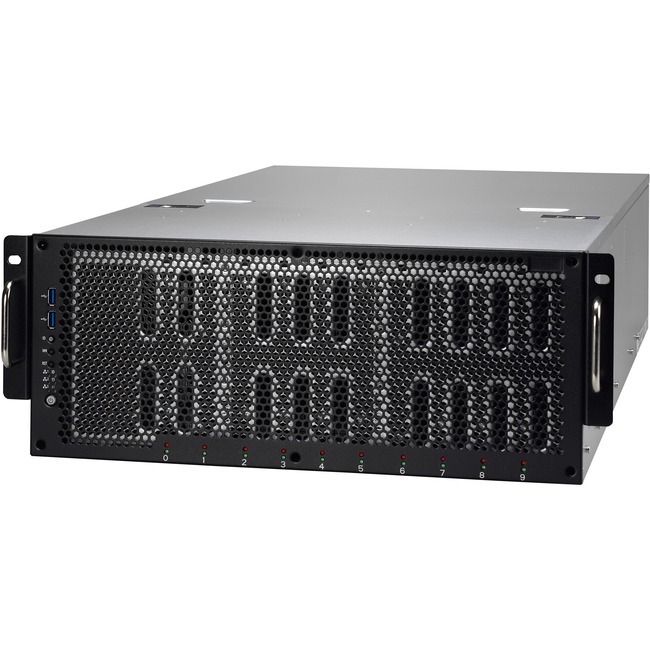

Tyan FT77CB7079 Barebone System - 4U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support - Intel C612 Chip - 3 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported, 6Gb/s SAS Controller - ASPEED AST2400 Graphic(s) - 10 SATA Interface(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 x 3200 W - 3 Year
Intel C612 Chip - 3 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 RAID Supported, 6Gb/s SAS Controller - ASPEED AST2400 Graphic(s) - 10 SATA Interface(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 x 3200 W - 3 Year
| Chipset | Intel C612 |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Maximum Memory Supported | 3 TB |
| Maximum Power Supply Wattage | 3200 W |
| Memory Standard | DDR4-2133/PC4-17000 |
| Number of Power Supplies Installed | 3 |
| Number of Processors Supported | 2 |
| Number of SAS Interfaces | 8 |
| Number of SATA Interfaces | 10 |
| Number of Total Expansion Slots | 13 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| Brand Name | Tyan |
| Controller Type | Serial ATA/600 |
| Controller Type | 6Gb/s SAS |
| Depth | 30.3" |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 6.9" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7079F77CV10HR-N |
| Manufacturer Website Address | http://www.tyan.com |
| Marketing Information | Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications TYAN barebones servers and server chassis enclosures provide OEMs VARs and S/Is with simplified cost-effective components and solutions for building robust feature-rich servers. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 24 |
| Package Contents | - FT77CB7079 Barebone System
- 1 x Quick Installation Guide
- 1 x TYAN Installation CD
- 1 x Display/USB2.0 Port via a Dongle Cable
- 1 x CPU Air Duct
- 8 x For NV-Tesla GPU Card brackets
|
| Product Model | FT77CB7079 |
| Product Name | FT77CB7079 Barebone System |
| Product Type | Barebone System |
| Rack Height | 4U |
| Total Number of USB Ports | 4 |
| UPC Alternates | 635872036910 |
| Width | 17.2" |
