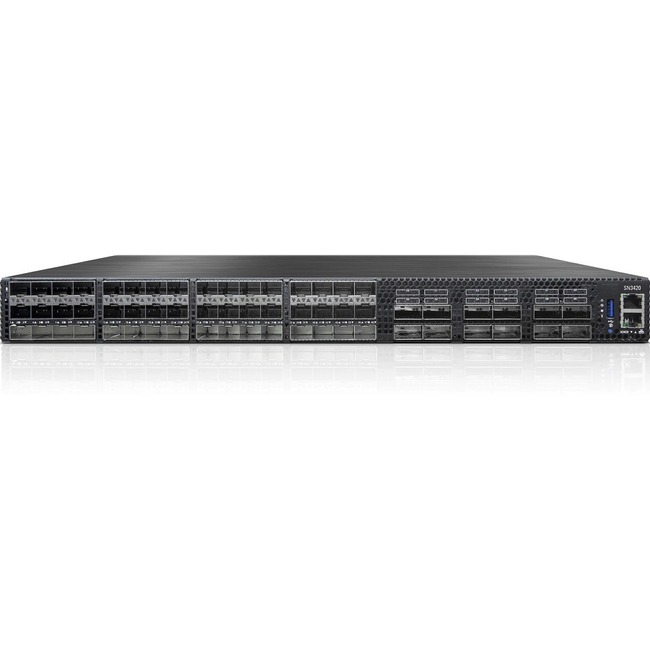

Mellanox Spectrum-2 SN3000 SN3420 Ethernet Switch - Manageable - 3 Layer Supported - Modular - Optical Fiber - 1U High - Rail-mountable, Rack-mountable - 1 Year Limited Warranty
Manageable - 3 Layer Supported - Modular - Optical Fiber - 1U High - Rail-mountable, Rack-mountable - 1 Year Limited Warranty
| Compatible Rack Unit | 1U |
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Supported | 2 |
| Number of Total Expansion Slots | 60 |
| Number of Total Expansion Slots | 60 |
| Additional Information | Mellanox Spectrum-2 based 25GbE/100GbE 1U Open Ethernet switch with Cumulus Linux x86 CPU standard depth C2P airflow Rail Kit |
| Additional Information | Mellanox Spectrum-2 based 25GbE/100GbE 1U Open Ethernet switch with Cumulus Linux x86 CPU standard depth C2P airflow Rail Kit |
| Brand Name | Mellanox |
| Brand Name | Mellanox |
| Depth | 17" |
| Depth | 17" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Ethernet Technology | 25 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | SFP28 |
| Expansion Slot Type | SFP28 |
| Form factor | Rail-mountable |
| Form factor | Rack-mountable |
| Form factor | Rail-mountable |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Layer Supported | 3 |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer | NVIDIA Corporation |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer Part Number | MSN3420-CB2RC |
| Manufacturer Part Number | MSN3420-CB2RC |
| Manufacturer Website Address | http://www.mellanox.com |
| Manufacturer Website Address | http://www.mellanox.com |
| Manufacturer Website Address | http://www.nvidia.com |
| Marketing Information | The SN3000 series switches are the 3rd generation of NVIDIA® Mellanox® Spectrum® switches purpose-built for leaf/spine/super-spine datacenter applications. Allowing maximum flexibility SN3000 series provides port speeds spanning from 1GbE to 400GbE and a port density that enables full rack connectivity to any server at any speed. In additionthe uplink ports allow a variety of blocking ratios to suit any application requirement.
The SN3000 series is ideal for building wire-speed and cloud-scale layer-2 and layer-3 networks. The SN3000 platforms deliver high performance consistent low latency along with support for advanced software defined networking features making it the ideal choice for web scale IT cloud hyperconverged storage and data analytics applications.
NETWORK DISAGGREGATION: OPEN ETHERNET
Open Ethernet breaks the paradigm of traditional switch systems eliminating vendor lock-in. Instead of forcing network operators to use the specific software that is provided by the switch vendor Open Ethernet offers the flexibility to use a choice of operating systems on top of Ethernet switches thereby re-gaining control of the network and optimizing utilization efficiency and overall return on investment.
Encouraging an ecosystem of open source standard network solution Open Ethernet adopts the same principles as standard open solutions for servers and storage and applies them to the world of networking infrastructure. These solutions can then be easily deployed into the modern data center across network equipment that eases management and ensures full interoperability.
With a range of system form factors and a rich software ecosystem SN3000 series allows you to pick and choose the right components for your data center.
Visibility
- NVIDIA Mellanox What Just Happened® (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When What Who Where and Why
- Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
- Inband Network Telemetry (INT)-ready hardware
- Streaming Telemetry
- 512K on-chip flow counters
Performance
- Fully shared packet buffer provides a fair predictable and high bandwidth data path
- Consistent and low cut-through latency
- Robust RoCE transport to power NVMe over fabric and Machine Learning applications that leverage NVIDIA Mellanox GPUDirect
- Best-in-class VXLAN scale-10X more tunnels and tunnel endpoints than others
- 512K shared forwarding entries flexibly shared across ACL LPM routes host routes MAC ECMP and tunnel applications
Agility
- Comprehensive Layer-2 Layer-3 and RoCE
- Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
- Cloud Scale NAT - 100K+ sessions
- Programmable pipeline that can programmatically parse process and edit packets
- Deep Packet Inspection - 512B deep
|
| Marketing Information | The SN3000 series switches are the 3rd generation of NVIDIA® Mellanox® Spectrum® switches purpose-built for leaf/spine/super-spine datacenter applications. Allowing maximum flexibility SN3000 series provides port speeds spanning from 1GbE to 400GbE and a port density that enables full rack connectivity to any server at any speed. In additionthe uplink ports allow a variety of blocking ratios to suit any application requirement.
The SN3000 series is ideal for building wire-speed and cloud-scale layer-2 and layer-3 networks. The SN3000 platforms deliver high performance consistent low latency along with support for advanced software defined networking features making it the ideal choice for web scale IT cloud hyperconverged storage and data analytics applications.
NETWORK DISAGGREGATION: OPEN ETHERNET
Open Ethernet breaks the paradigm of traditional switch systems eliminating vendor lock-in. Instead of forcing network operators to use the specific software that is provided by the switch vendor Open Ethernet offers the flexibility to use a choice of operating systems on top of Ethernet switches thereby re-gaining control of the network and optimizing utilization efficiency and overall return on investment.
Encouraging an ecosystem of open source standard network solution Open Ethernet adopts the same principles as standard open solutions for servers and storage and applies them to the world of networking infrastructure. These solutions can then be easily deployed into the modern data center across network equipment that eases management and ensures full interoperability.
With a range of system form factors and a rich software ecosystem SN3000 series allows you to pick and choose the right components for your data center.
Visibility
- NVIDIA Mellanox What Just Happened® (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When What Who Where and Why
- Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
- Inband Network Telemetry (INT)-ready hardware
- Streaming Telemetry
- 512K on-chip flow counters
Performance
- Fully shared packet buffer provides a fair predictable and high bandwidth data path
- Consistent and low cut-through latency
- Robust RoCE transport to power NVMe over fabric and Machine Learning applications that leverage NVIDIA Mellanox GPUDirect
- Best-in-class VXLAN scale-10X more tunnels and tunnel endpoints than others
- 512K shared forwarding entries flexibly shared across ACL LPM routes host routes MAC ECMP and tunnel applications
Agility
- Comprehensive Layer-2 Layer-3 and RoCE
- Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
- Cloud Scale NAT - 100K+ sessions
- Programmable pipeline that can programmatically parse process and edit packets
- Deep Packet Inspection - 512B deep
|
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 25GBase-X |
| Network Technology | 25GBase-X |
| Network Technology | 100GBase-X |
| Network Technology | 100GBase-X |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 12 x 100 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 12 x 100 Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Power source | Power Supply |
| Product Family | Spectrum-2 SN3000 |
| Product Family | Spectrum-2 SN3000 |
| Product Line | Spectrum-2 |
| Product Line | Spectrum-2 |
| Product Model | SN3420 |
| Product Model | SN3420 |
| Product Name | Spectrum-2 SN3000 SN3420 Ethernet Switch |
| Product Name | Spectrum-2 SN3000 SN3420 Ethernet Switch |
| Product Series | SN3000 |
| Product Series | SN3000 |
| Product Type | Ethernet Switch |
| Product Type | Ethernet Switch |
| Width | 16.8" |
| Width | 16.8" |
