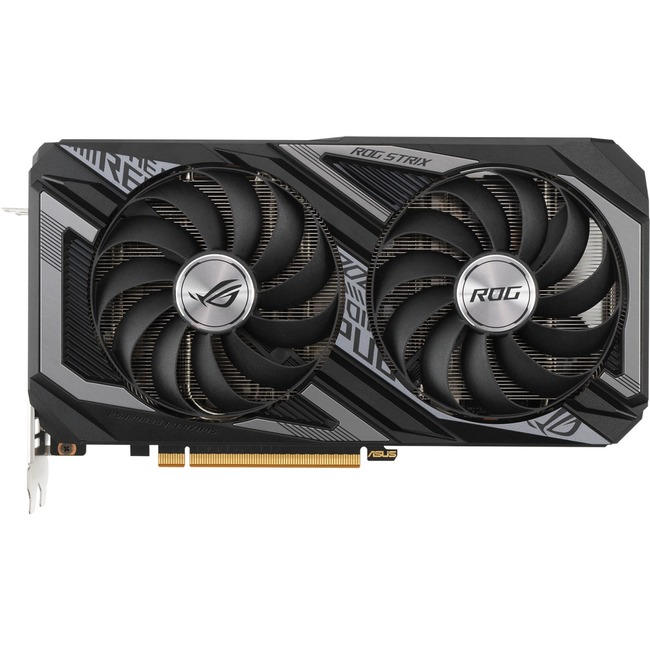

Asus ROG AMD Radeon RX 6600 XT Graphic Card - 8 GB GDDR6 - 2.43 GHz Game Clock - 2.61 GHz Boost Clock - 128 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI 2.43 GHz Game Clock - 2.61 GHz Boost Clock - 128 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI
Product Specifications
API Supported
OpenGL 4.6
API Supported
Vulkan
API Supported
DirectX 12 Ultimate
Bus Width
128 bit
Chipset Line
Radeon
Chipset Manufacturer
AMD
Chipset Model
RX 6600 XT
Chipset Series
RX 6000
Cooler Type
Fan Cooler
Game Clock
2.43 GHz
GPU Boost Clock
2.61 GHz
Maximum Digital Display Resolution
7680 x 4320
Multi-GPU Technology
CrossFireX
Number of DisplayPort Outputs
3
Number of Monitors Supported
4
Power Connector
1x 8-pin
Power Supply Wattage
500 W
Slot Space Required
Triple
Brand Name
Asus ROG
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Plug-in Card
Height
2"
Host interface
PCI Express 4.0
Length
9.6"
Limited Warranty
36 Month
Manufacturer
ASUS Computer International
Manufacturer Part Number
ROG-STRIX-RX6600XT-O8G-GAMING
Manufacturer Website Address
http://usa.asus.com
Marketing Information
TAKE FLIGHT
The ROG Strix Radeon™ RX 6600 XT amps Full HD frame rates to meet the demands of the latest high-speed displays. Dual Axial-tech fans efficiently blast air through a large heatsink to keep the GPU chilled and top-shelf capacitors chokes and MOSFETs deliver the perfect amount of clean power. A host of creature comforts including a Dual BIOS switch 0dB mode and metal backplate up the ante to make this beast the ideal choice for your next gaming rig.
FANS | DYNAMIC DUO
Both Axial-tech fans feature half-width barrier rings to increase airflow through the cooling array.
QUIET CUNNING
Fans start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 52 Celsius helping to reduce noise when the system is idling or under light load.
PCB | PREMIUM COMPONENTS
Premium alloy chokes solid polymer capacitors and an array of high-current power stages handle power delivery with ease. The Super Alloy Power II parts are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications.
DESIGN | FIERCE SHROUD
A striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs.
ARMORED UNDERSIDE
The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual BIOS switch allows customization of the card's default performance profile without software.
AURA SYNC
The ROG Strix Radeon™ RX 6600 XT features Aura RGB lighting on the side of the card. Aura Sync software connects compatible products for a completely customized lightning setup. You can sync to music change color based on temperature or select from a large number of patterns and static options. Look out for the Aura Sync logo when you're picking parts for your build.
Memory Technology
GDDR6
Number of HDMI Outputs
1
Package Contents
STRIX-RX6600XT-O8G-GAMING Graphic Card
1 x ROG Velcro Hook & Loop
1 x Collection Card
1 x Speedsetup Manual
Platform Supported
PC
Product Name
STRIX-RX6600XT-O8G-GAMING Graphic Card
Product Type
Graphic Card
Standard Memory
8 GB
Width
5.3"
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
