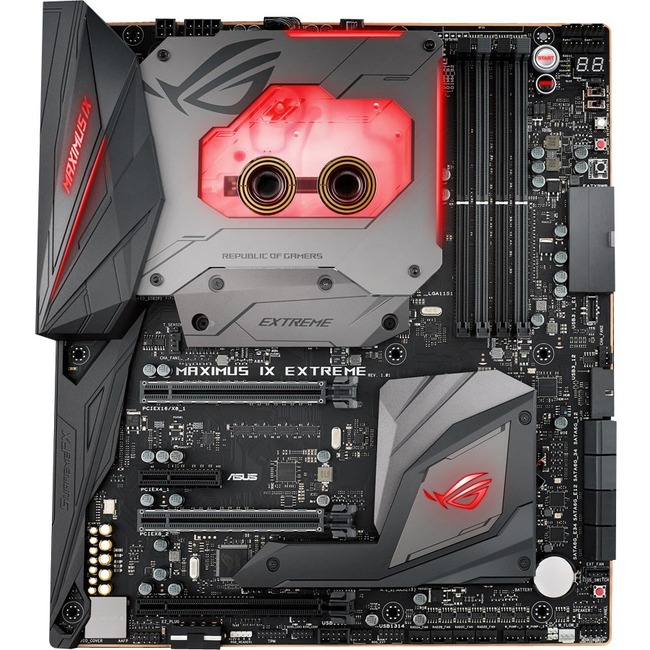

Asus ROG MAXIMUS IX EXTREME Desktop Motherboard - Intel Z270 Chipset - Socket H4 LGA-1151 - Extended ATX - Core i7 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
Core i7 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Z270 |
| Graphics Controller Model | HD Graphics |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3866 MHz |
| Memory Speed Supported | 3500 MHz |
| Memory Speed Supported | 3400 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 3466 MHz |
| Memory Speed Supported | 4133 MHz |
| Memory Speed Supported | 3800 MHz |
| Memory Speed Supported | 3733 MHz |
| Multi GPU Supported | SLI |
| Multi GPU Supported | CrossFireX |
| Number of Memory Slots | 4 |
| Number of Onboard USB 3.0 Ports | 2 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 8 |
| Onboard Video | CPU Dependent Video |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Celeron |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Core i7 |
| Processor Supported | Pentium |
| S/PDIF | Yes |
| Audio Channels | 7.1 |
| Brand Name | Asus ROG |
| Controller Type | Serial ATA/600 |
| Depth | 10.7" |
| Environmental Certification | RoHS |
| Form factor | Extended ATX |
| Limited Warranty | 3 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG MAXIMUS IX EXTREME |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | Intel Z270 EATX gaming motherboard with water-cooling monoblock dual M.2 Aura Sync RGB LEDs DDR4 4133MHz Thunderbolt 3 802.11ac Wi-Fi and USB 3.1 Type-A/C - LGA1151 socket for 7th Gen and 6th Gen Intel® Core™ desktop processors.
- Integrated ROG-built monoblock detects water flow temperature and leakage and integrates the M.2 heatsink for improved reliability and performance.
- Best gaming lighting: Aura Sync RGB LEDs Aura 4-pin RGB-strip headers and color-coded LED audio jacks.
- SupremeFX: Exclusive new codec plus intuitive Sonic Studio III and Sonic Radar III.
- 5-Way Optimization: One-click system-wide overclocking.
- Best gaming networking: Intel® Gigabit Ethernet 2x2 802.11ac MU-MIMO Wi-Fi LANGuard and GameFirst technologies.
- Best gaming protection: pre-mounted I/O shield and gold-plated PCB edges for EMI protection and maximum durability.
- Best gaming connectivity: Front-panel USB 3.1 onboard Thunderbolt™ 3. and dual M.2.
BEST GAMING WATER COOLING COOL TO THE EXTREME ROG teamed up with the geniuses at Bitspower to develop an all-new integrated water-cooling solution for Maximus IX Extreme - one that elevates simplicity and efficiency to extraordinary levels. Designed from the ground up and ready to work right out of the box Maximus IX Extreme's built-in monoblock has flow-rate water-leak and temperature sensors all seamlessly integrated - plus Aura Sync RGB lighting for instant curb appeal! With dedicated sensors feeding information straight into ROG's intuitive Fan Xpert 4 utility it's easy to configure options for shutdown timing and alerts so you can stay on top of the heat and remain cool in every game! BEST GAMING LIGHTING AURA LIGHTING CONTROL Customize LED effects with intuitive ASUS Aura Sync lighting-control software. Aura allows you to cast a stunning multi-color glow across your build via the ROG Maximus IX Extreme's brilliant built-in RGB LEDs or attached RGB strips via the two onboard 4-pin headers*. Fire up ASUS Aura and enjoy the creative freedom of nine lighting schemes ? and watch all of the lights on your rig glow in perfect synchronization! OUTSHINE THE COMPETITION ASUS Aura Sync technology makes Maximus IX Extreme the control hub for your illumination ambitions - so it's easy to synchronize incredible lighting effects between compatible components including RGB LED strips graphics cards keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices. BAST GAMING AUDIO EXQUISITE AUDIO INSIDE AND OUT NEW SUPREMEFX CODEC ROG's awesome SupremeFX audio technology has levelled up delivering an exceptional 113dB signal-to-noise ratio on the line-in connection and 120dB on line-out - and that means our best-ever recording quality! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec an ESS® Sabre Hi-Fi ES9023P digital-to-analog converter for superior front-panel output and a Texas Instruments® RC4580 op-amp for high gain with low distortion - which all adds up to audio that envelops you as never before.
INTUITIVE AUDIO-TUNING SUITE SONIC STUDIO III ROG's Sonic Studio III audio effects station has been updated with an all-new routing feature to port streams to different outputs as well as app-level preferences for instant audio profiles and improved noise filtering for conversations with total clarity! |
| Memory form factor | DIMM |
| Memory Technology | DDR4 SDRAM |
| Number of USB 3.0 Ports | 6 |
| Package Contents | - MAXIMUS IX EXTREME Desktop Motherboard
- User's Manual
- 8 x SATA 6Gb/s Cable(s)
- 1 x M.2 Screw Package
- 1 x CPU Installation Tool
- 1 x Fan Extension Card (3 x 4-pin fan out)
- 1 x Fan Extension Card Screw Pack
- 1 x ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n compliant)
- 1 x SLI HB BRIDGE(2-WAY-M)
- 1 x ROG Big Sticker
- 1 x Q-Connector
- 1 x 10-in-1 ROG Cable Label
- 2 x Thermal Sensor Cable Pack(s)
- 1 x Extension Cable for RGB Strips (80 cm)
- 1 x USB Drive with Utilities and Drivers
- 1 x ROG Coaster(s)
- 1 x ROG Monoblock
- 1 x ROG Monoblock Accessory Pack
- 1 x M.2 Heatsink Package
|
| Product Model | MAXIMUS IX EXTREME |
| Product Name | MAXIMUS IX EXTREME Desktop Motherboard |
| Product Type | Desktop Motherboard |
| RAID Levels | 0 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| UPC Alternates | 818216663243 818240521939 818242814527 832873531639 |
| Width | 12" |
