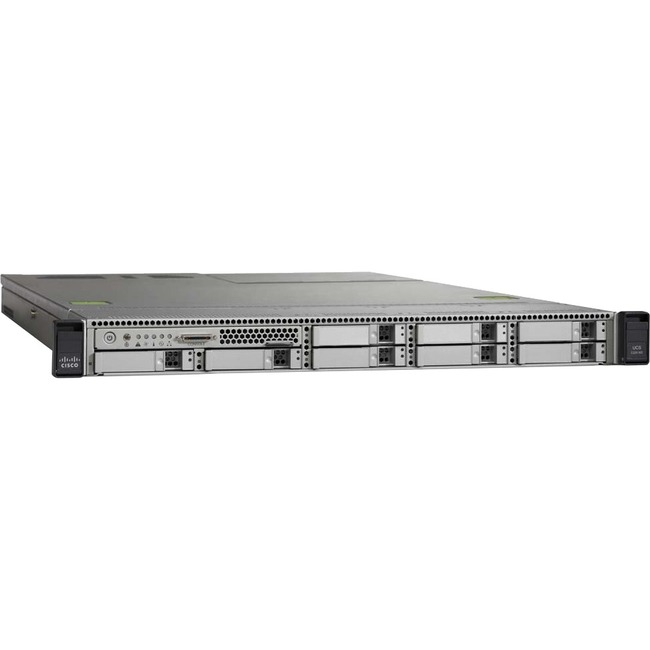

Cisco C220 M3 1U Rack Server - 2 x Intel Xeon E5-2609 2.40 GHz - 48 GB RAM - 4 TB HDD - (4 x 1TB) HDD Configuration - Serial ATA/600, 3Gb/s SAS Controller - Intel C600 Chip - 2 Processor Support - 256 GB RAM Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - Matrox G200e Up to 256 MB Graphic Card - Gigabit Ethernet - 4 x LFF Bay(s) - 2 x 650 W
Intel C600 Chip - 2 Processor Support - 256 GB RAM Support - 0, 1, 5, 6, 10, 50, 60 RAID Levels - Matrox G200e Up to 256 MB Graphic Card - Gigabit Ethernet - 4 x LFF Bay(s) - 2 x 650 W
| Cache | 10 MB |
| Chipset | Intel C600 |
| Chipset Model | C600 |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 256 MB |
| Hard Drive RPM | 7200 |
| Maximum Memory Supported | 256 GB |
| Maximum Power Supply Wattage | 650 W |
| Memory Card Reader | Yes |
| Memory Card Supported | SD |
| Memory Standard | DDR3-1333/PC3-10600 |
| Number of Hard Drives | 4 |
| Number of Power Supplies Installed | 2 |
| Optical Drive Type | No |
| Processor Core | Quad-core (4 Core) |
| QuickPath Interconnect | 6.40 GT/s |
| Total Hard Drive Capacity | 4 TB |
| Brand Name | Cisco |
| Certifications & Standards | Safety:
- UL 60950-1 No. 21CFR1040 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- IEC 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943 2001
EMC: Emissions
- 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR2 2 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A ITE
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
EMC: Immunity
- EN55024
- CISPR24
- EN300386
- KN24
|
| Controller Type | 3Gb/s SAS |
| Controller Type | Serial ATA/600 |
| Depth | 28.5" |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack |
| Hard Drive Configuration | 4 x 1TB |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | WMS-EZ-C220-50P |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco® Unified Computing System™ (Cisco UCS) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access into a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest expansion of the Cisco UCS portfolio includes the new Cisco® UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU) and the Cisco UCS B200 M3 Blade Server. These three new servers increase compute density through more cores and cache balanced with more memory capacity disk drives and with faster I/O. Together these server improvements and complementary Cisco UCS advancements deliver the best combination of features and cost efficiency required to support IT's diverse server needs. |
| Memory Technology | DDR3 SDRAM |
| Number of Total Memory Slots | 16 |
| Packaged Quantity | 1 |
| Processor Manufacturer | Intel |
| Processor model | E5-2609 |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon |
| Product color | Gray |
| Product Name | C220 M3 Server |
| Product Series | C220 M3 |
| Product Type | Server |
| Rack Height | 1U |
| RAID Levels | 0 1 5 6 10 50 60 |
| Standard Memory | 48 GB |
| Total Number of USB Ports | 3 |
| UPC Alternates | 882658637711 |
| Weight (Approximate) | 22 lb |
| Width | 16.9" |
