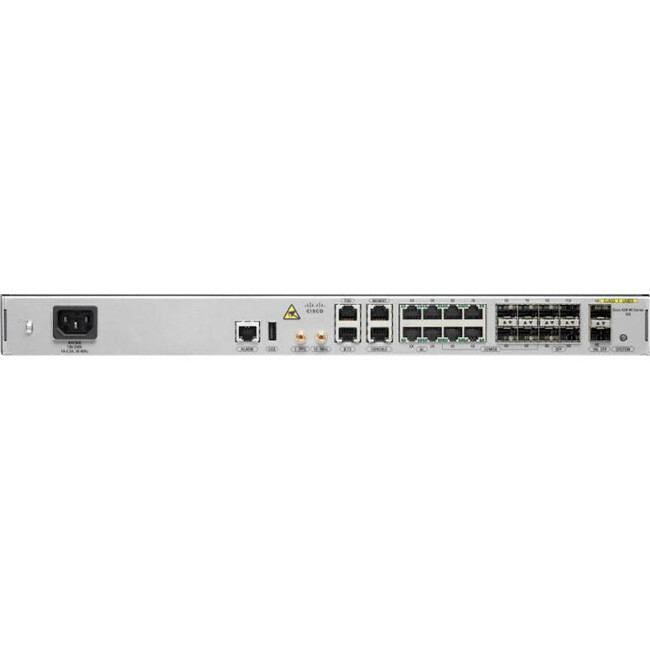

Cisco ASR 901-6CZ-F-A Router - 8 Ports - 8 RJ-45 Port(s) - Management Port - 10 - 512 MB - Gigabit Ethernet - 1U - Rack-mountable, Wall Mountable - 90 Day
8 Ports - 8 RJ-45 Port(s) - Management Port - 10 - 512 MB - Gigabit Ethernet - 1U - Rack-mountable, Wall Mountable - 90 Day
| Compatible Rack Unit | 1U |
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 10 |
| Number of Total Expansion Slots | 10 |
| Brand Name | Cisco |
| Brand Name | Cisco |
| Certifications & Standards | Safety:
- UL/CSA 60950-1
- IEC/EN 60950-1
- AS/NZS 60950.1
EMC Emission:
- FCC 47CFR15 Class A
- EN55022 Class A
- CISPR 22 Class A
- AS/NZS CISPR 22 Class A
- ICES 003 Class A
- VCCI Class A
- KN 22 Class A
EMC Immunity:
- EN/IEC61000-4-2
- EN/IEC61000-4-3
- EN/IEC61000-4-4
- EN/IEC61000-4-5
- EN/IEC61000-4-6
|
| Certifications & Standards | Safety:
- UL/CSA 60950-1
- IEC/EN 60950-1
- AS/NZS 60950.1
EMC Emission:
- FCC 47CFR15 Class A
- EN55022 Class A
- CISPR 22 Class A
- AS/NZS CISPR 22 Class A
- ICES 003 Class A
- VCCI Class A
- KN 22 Class A
EMC Immunity:
- EN/IEC61000-4-2
- EN/IEC61000-4-3
- EN/IEC61000-4-4
- EN/IEC61000-4-5
- EN/IEC61000-4-6
|
| Depth | 9.1" |
| Depth | 9.1" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP (mini-GBIC) |
| Flash memory | 128 MB |
| Flash memory | 128 MB |
| Form factor | Wall Mountable |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Height | 1.7" |
| Height | 1.7" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Limited Warranty | 90 Day |
| Limited Warranty | 90 Day |
| Manufacturer | Cisco Systems Inc |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | A901-6CZ-F-A |
| Manufacturer Part Number | A901-6CZ-F-A |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The Cisco® ASR 901 Series Aggregation Services Routers are environmentally hardened high-speed low-power-consumption routers optimized for any-generation cell-site Radio Access Network (RAN) backhaul and Ethernet access. By using Cisco ASR 901 routers operators can reduce backhaul operating costs simplify and converge their RAN and Ethernet access networks and enhance their profit opportunities with mobile and premium Ethernet services.
RAN cell sites are places of transformation between mobile radio and mobile transport networks. Cost-effective RAN backhaul requires the ability to simultaneously aggregate the transport of traffic from both traditional and next-generation radios across multiple transport options available at the cell site. The Cisco ASR 901 routers are designed to minimize operating costs and optimize this radio-to-transport transformation through scalable timedivision multiplexing (TDM) and IP/Ethernet interfaces for any combination of multivendor multigeneration radios and transport networks. |
| Marketing Information | The Cisco® ASR 901 Series Aggregation Services Routers are environmentally hardened high-speed low-power-consumption routers optimized for any-generation cell-site Radio Access Network (RAN) backhaul and Ethernet access. By using Cisco ASR 901 routers operators can reduce backhaul operating costs simplify and converge their RAN and Ethernet access networks and enhance their profit opportunities with mobile and premium Ethernet services.
RAN cell sites are places of transformation between mobile radio and mobile transport networks. Cost-effective RAN backhaul requires the ability to simultaneously aggregate the transport of traffic from both traditional and next-generation radios across multiple transport options available at the cell site. The Cisco ASR 901 routers are designed to minimize operating costs and optimize this radio-to-transport transformation through scalable timedivision multiplexing (TDM) and IP/Ethernet interfaces for any combination of multivendor multigeneration radios and transport networks. |
| Memory Technology | DDR3 SDRAM |
| Memory Technology | DDR3 SDRAM |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 8 |
| Number of Network (RJ-45) Ports | 8 |
| Power source | Power Supply |
| Product Model | 901-6CZ-F-A |
| Product Model | 901-6CZ-F-A |
| Product Name | ASR 901-6CZ-F-A Router |
| Product Name | ASR 901-6CZ-F-A Router |
| Product Series | ASR 901 |
| Product Series | ASR 901 |
| Product Type | Router Chassis |
| Product Type | Router Chassis |
| Security features | - AAA
- TACACS+
- RADIUS
- Secure Shell (SSHv2)
- ACL Layer 3
|
| Security features | - AAA
- TACACS+
- RADIUS
- Secure Shell (SSHv2)
- ACL Layer 3
|
| Standard Memory | 512 MB |
| Standard Memory | 512 MB |
| Token Ring Port | No |
| Token Ring Port | No |
| UPC Alternates | 882658526961 |
| UPC Alternates | 882658526961 |
| Weight (Approximate) | 7.94 lb |
| Weight (Approximate) | 7.94 lb |
| Width | 17.5" |
| Width | 17.5" |
