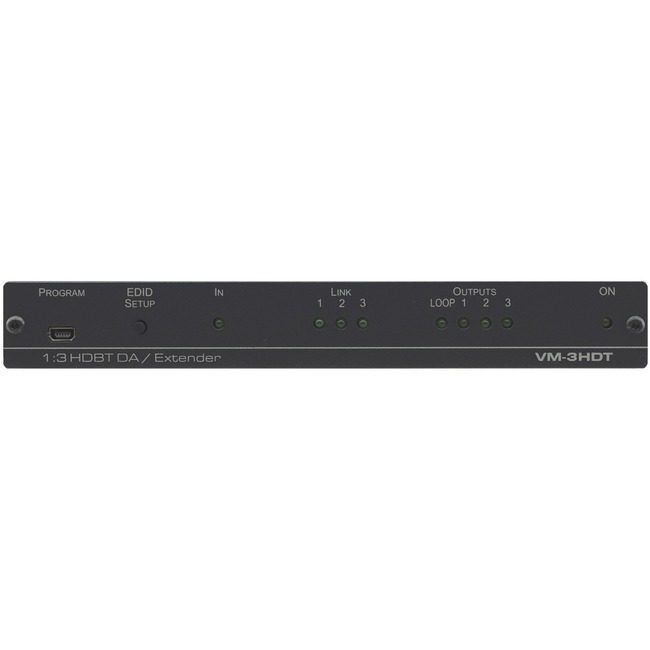

Kramer 1:3+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA - 1 Input Device - 3 Output Device - 229.66 ft Range - 3 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
1 Input Device - 3 Output Device - 229.66 ft Range - 3 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
| Network (RJ-45) | Yes |
| Transmitter Depth | 4.53" |
| Transmitter Height | 1" |
| Transmitter Weight (Approximate) | 1.10 lb |
| Transmitter Width | 7.38" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Limited Warranty | 7 Year |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VM-3HDT |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | VM-3HDT is a high-quality long-reach 1:3 HDBaseT extender distributor that takes one HDMI input with IR and RS-232 control signals converts it to an HDBaseT extension line signal and distributes it to 3 HDBaseT outputs that connect to compatible HDBaseT receivers such as TP-580R. VM-3HDT distributes signals with resolutions of up to 4K@60Hz (4:2:0) and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain. - High Performance Distribution - Distributes one HDMI signal to three long-reach HDBaseT extension outputs with up to 4K video resolution and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
- Extension-line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach and even further for lower video resolutions.
- Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
- HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal supporting Deep Color x.v.Color™ Lip Sync 7.1 PCM Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
- User-Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
- Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting or side-by-side rack mounting.
Applications - Distribution of native extended AV signals in large rooms
- Presentation and multimedia rich applications in large boardrooms and meeting rooms
- Applicable for corporate education hospitality government market segments
|
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 3 |
| Package Contents | - 1:3+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA
- Power Supply
|
| Product Line | MegaTOOLS |
| Product Name | 1:3+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA |
| Product Type | Video Extender Transceiver |
| UPC Alternates | 818251929502 |
