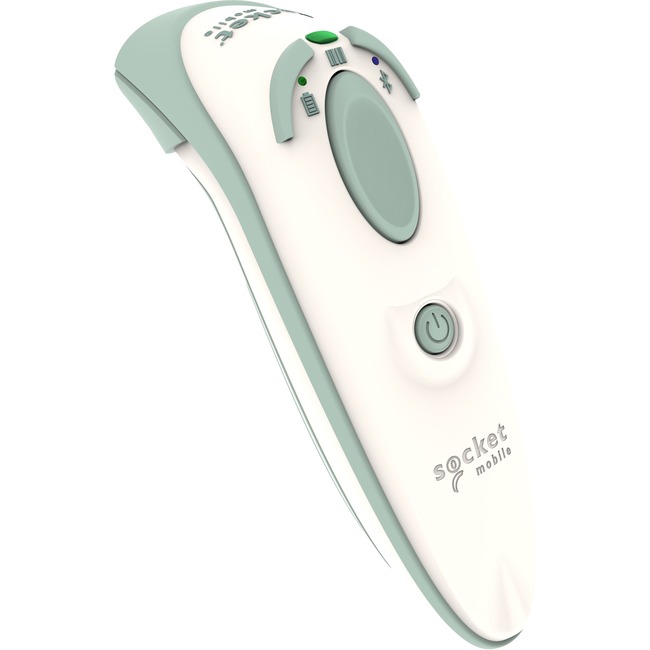

Socket Mobile DuraScan D755 Barcode Scanner - Wireless Connectivity - 36" Scan Distance - 1D, 2D - LED - Omni-directional - Bluetooth - White - IP54 - Healthcare, Hospitality, Pharmacy, Retail, Warehouse, Field Sales/Service, Transportation, Inventory
Wireless Connectivity - 36" Scan Distance - 1D, 2D - LED - Omni-directional - Bluetooth - White - IP54 - Healthcare, Hospitality, Pharmacy, Retail, Warehouse, Field Sales/Service, Transportation, Inventory
| Drop Specification | 6 drops to concrete - 1 on each side at 6.6 ft. (2 m) |
| Field of View (Horizontal) | 48° |
| Field of View (Vertical) | 30° |
| Ingress Protection (IP) Rating | IP54 |
| Ingress Protection (IP) Rating | IP54 |
| Maximum Ambient Light | 100000 lux |
| Maximum Element Resolution (Code 39) | 20 mil |
| Maximum Element Resolution (PDF417) | 6.7 mil |
| Minimum Element Resolution (Code 39) | 3 mil |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (PDF417) | 5 mil |
| Minimum Print Contrast | 25% |
| Scan Pattern | Omni-directional |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Scanning Distance | 36" |
| Application/Usage | Transportation |
| Application/Usage | Inventory |
| Application/Usage | Field Sales/Service |
| Application/Usage | Hospitality |
| Application/Usage | Retail |
| Application/Usage | Pharmacy |
| Application/Usage | Healthcare |
| Application/Usage | Warehouse |
| Barcode Symbology Supported | 1D: - Bookland EAN
- Chinese 2 of 5
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Composite CC-A/B
- Composite CC-C
- Composite TLC
- Discrete 2 of 5
- EAN-13/JAN
- EAN-8/JAN
- GS1 Databar
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1-128
- Interleaved 2 of 5
- ISBT 128
- ISSN EAN
- Matrix 2 of 5
- MSI
- UPC/EAN/JAN
- UPC A
- UPC EO
2D:
- Aztec
- Data Matrix
- Maxicode
- Micro PDF417
- MicroQR
- PDF417
- QR Code
|
| Brand Name | Socket Mobile |
| Connectivity technology | Wireless |
| Country of origin | United States |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Handheld |
| Light source | LED |
| Limited Warranty | 1 Year |
| Manufacturer | Socket Mobile Inc |
| Manufacturer Part Number | CX3800-2560 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Marketing Information | The D755 is a powerful laser-free barcode scanner built for the demanding standards of healthcare environments. Built with medical grade plastic it's tough enough to withstand frequent cleaning with harsh disinfectant solutions. Plus it's built with the signature toughness of our DuraScan line. It's IP54-rated for dust liquid and bacteria protection designed to be dropped frequently. With a safe and effective LED aimer it offers high-performance scanning of 1D 2D barcodes PDF 417 OCR fonts and DotCode. Accurately captures patient information and personal identification documents such as passport and drivers' licenses for check-in or admissions. It scans barcodes as small as 3 millimeters and allows omni-directional scanning ideal for scanning vials and syringes. Also scans barcodes displayed on a screen or printed and barcodes on curved and reflective surfaces and poor quality and challenging barcodes for first-time every-time scanning. The motion tolerance feature offers faster scanning and extended scanning range up to 24 inches away which provides a larger scanning 'sweet spot' to capture barcodes. From patient admissions to bedside point of care from the pharmacy to suite number who-knows-where the D755 is a perfect solution for applications that are used in hospitals blood banks pharmacies residential care facilities and home care organizations. |
| Packaged Quantity | 50 Pack |
| Platform Supported | iOS |
| Product color | White |
| Product Line | DuraScan |
| Product Model | D755 |
| Product Name | DuraScan D755 Barcode Scanner |
| Product Type | Barcode Scanner |
| UPC Alternates | 758497118790 |
