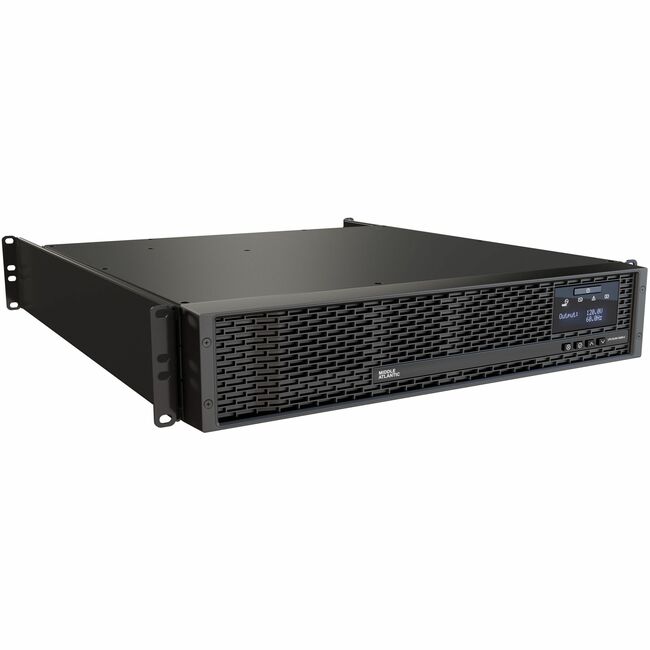

Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS

Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS

New
Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R
0 Review(s) Item: UPX-RLNK-1500R-2 | By: Middle Atlantic |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • 8 outlets
  • Bank Controlled option with (2) 4 outlet banks
  • Individually Controlled options for all 8 outlets via RackLink™
  • All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
  • Everything is assembled and connected right from the factory saving you time during your installations
  • Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
  • The battery is already connected so just plug it in
  • The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
  • The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R
Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R

Product Specifications

DC System Voltage36 V DC
Load Capacity (VA)1500 VA
Load Capacity (W)1350 W
Operating Humidity0% - 95%
Output Frequency60 Hz
Receptacle Detail8 x NEMA 5-15R
Storage Temperature5°F (-15°C) - 113°F (45°C)
Waveform TypePure Sine Wave
Additional Warranty Information2 Years Battery
AlarmOverload
AlarmFault
AlarmBattery Disconnected
AlarmOn Battery
AlarmLow Battery
Application/UsageBank
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)10 Minute
Battery capacity9000 mAh
Battery CharacteristicsMaintenance-free Sealed
Battery ChemistryLead Acid
Battery Size12V
Brand NameMiddle Atlantic
DisplayLCD
Environmental CertificationENERGY STAR 2.0
Environmental CertificationREACH
Environmental CertificationRoHS 3
Form factorRack-mountable
Height3.4"
Hot SwappableYes
Input voltage120 V AC
Input Voltage Range80 V AC - 158 V AC
Limited Warranty3 Year
Load Capacity1500 VA/1350 W
ManufacturerLegrand Group
Manufacturer Part NumberUPX-RLNK-1500R-2
Manufacturer Website Addresshttp://www.legrand.us
Maximum Operating Temperature104°F (40°C)
Number of Batteries3
Output voltage127 V AC
Output voltage110 V AC
Package Contents
  • NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS
  • 6' (1.8m) IEC Power Cord
Plug/Connector TypeNEMA 5-15P
Product colorBlack
Product LineNEXSYS
Product NameNEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS
Product TypeLine-interactive UPS
Receptacle TypeNEMA 5-15R
Sound Emission45 dB
Status IndicatorsLED Indicators:
  • Normal Mode
  • AVR Mode
  • Battery Mode
  • Internal Fault
  • Battery Fault
Surge energy rating1000 J
Transfer Time10 ms
Typical Battery Recharge Time8 Hour
Weight (Approximate)44.09 lb
Width17.3"
