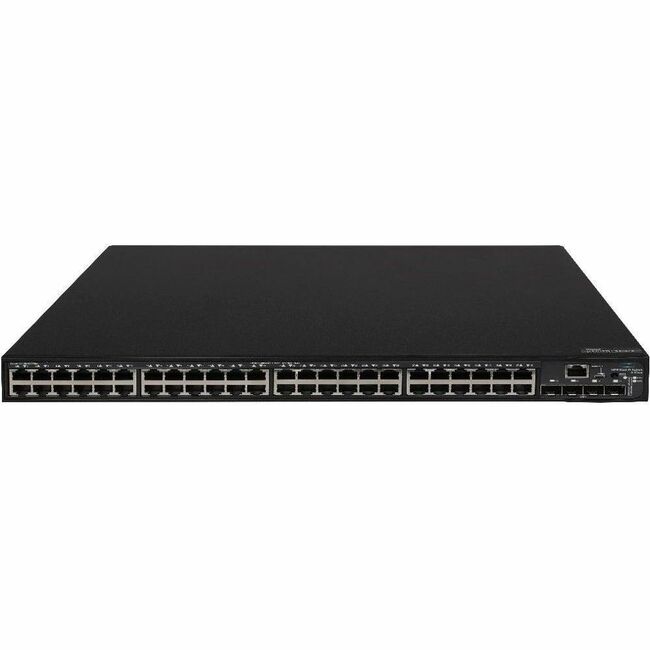

HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Total Expansion Slots | 4 |
| PoE Budget | 370 W |
| Total Number of Network Ports | 48 |
| Application/Usage | Office |
| Application/Usage | Enterprise |
| Application/Usage | Data Center |
| Application/Usage | Network |
| Brand Name | HPE |
| Depth | 14.2" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Cabinet Mount |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL824A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static OSPF and RIP Layer 3 routing convenient fixed 10GbE uplink ports PoE+ ACLs IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device which increases network resilience performance and availability while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability simplified management and comprehensive security control policies are among the key features that distinguish this series. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Networking standards | IEEE 802.3ah |
| Networking standards | IEEE 802.3ac |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.11ad |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1ak |
| Package Contents | - FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch
- Power Supply
- Mounting Hardware
|
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Power consumption | 47 W |
| Power source | Power Supply |
| Product Family | FlexNetwork 5140 EI |
| Product Line | FlexNetwork |
| Product Name | FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch |
| Product Series | 5140 EI |
| Product Type | Layer 3 Switch |
| Weight (Approximate) | 17.64 lb |
| Width | 17.3" |
