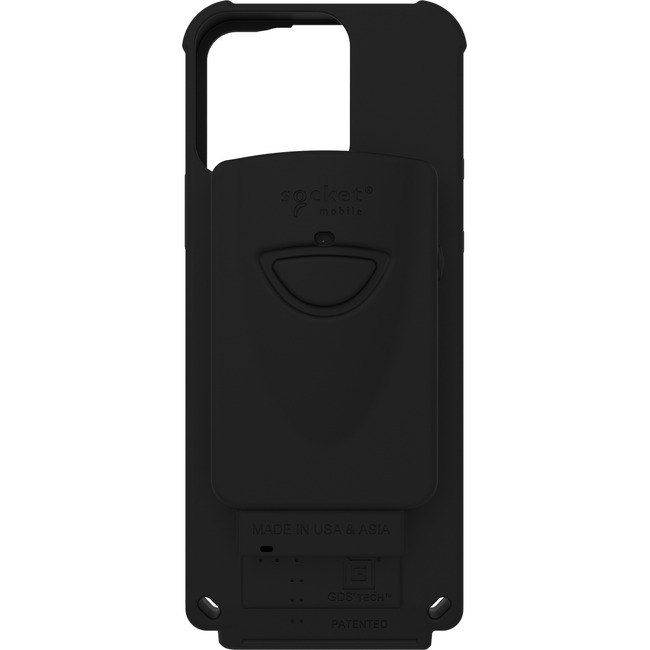

DuraSled DS860 Ultimate Barcode Sled Reader v21 & Dot Code Travel ID Reader for iPhone 13/14 & iPhone 13/14 Pro (Charger Sold Separately) - Wireless Connectivity - 30" Scan Distance - 1D, 2D - LED - Imager - Omni-directional - Bluetooth - USB - IP40 - Retail, Logistics, Healthcare, Hospitality
Wireless Connectivity - 30" Scan Distance - 1D, 2D - LED - Imager - Omni-directional - Bluetooth - USB - IP40 - Retail, Logistics, Healthcare, Hospitality
| Battery Weight | 0.44 oz |
| Drop Specification | Multiple drops to vinyl covered concrete at 3 feet or 1 meter |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Humidity (Non-condensing) | 5% to 95% |
| Image Sensor Resolution | 1280 x 800 |
| Ingress Protection (IP) Rating | IP40 |
| Ingress Protection (IP) Rating | IP40 |
| Maximum Ambient Light | 100000 lux |
| Maximum Battery Recharge Time | 8 Hour |
| Maximum Element Resolution (Code 39) | 20 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (Code 39) | 4 mil |
| Minimum Print Contrast | 25% |
| Scan Pattern | Omni-directional |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Scanning Distance | 30" |
| Storage Temperature | -22°F (-30°C) to 158°F (70°C) |
| Application/Usage | Logistics |
| Application/Usage | Healthcare |
| Application/Usage | Retail |
| Application/Usage | Hospitality |
| Barcode Symbology Supported | 1D:
- Bookland EAN
- Chinese 2 of 5
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Composite CC-A/B
- Composite CC-C
- Composite TLC-39
- Discrete 2 of 5
- EAN-13/JAN 13
- EAN-8/JAN8
- GS1 Databar
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1-128
- Interleaved 2 of 5
- Inverse 1D
- ISBT 128
- ISSN EAN
- Korean 3 of 5
- Matrix 2 of 5
- MSI
- UPC-A
- UPC-E/E1
2D:
- Aztec
- Data Matrix
- GS1 Data Matrix
- DotCode
- Han Xin
- Maxicode
- Micro PDF417
- PDF417
- GS1 QR
- Micro QR
- QR Code
|
| Battery capacity | 700 mAh |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Brand Name | Socket Mobile |
| Compatibility | Apple - iPhone 13/14 & iPhone 13/14 Pro |
| Connectivity technology | Wireless |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Handheld |
| Host interface | USB |
| Image Sensor Type | Imager |
| Light source | LED |
| Limited Warranty | 1 Year |
| Manufacturer | Socket Mobile Inc |
| Manufacturer Part Number | CX4096-3163 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Marketing Information | Ultimate Barcode Scanning Sled The DuraSled™ DS860 is the ultimate barcode scanning sled for 1D/2D barcodes and travel identification reading with Bluetooth® wireless technology for iPhones and iPods. The DS860 scans 1D 2D barcodes OCR A & B fonts OCR USC OCR passport OCR MICR (E13B) fonts and DotCode while the sled protects devices from tumbles. It is easy-to-use and ideal for the retail and travel industries; merchants can scan product barcodes and travel IDs with one device. Simply insert the iPhone/iPod pair your scanner and you are ready to go. The DuraSled supports iPhone 6 7 8 iPhone X series SE 2022 and the entire iPhone 11 and 12 series. This makes it easy for workers to mix and match DuraSled™ solutions for iPhones all while using the same accessories and application. The core components don't change when switching to a new iPhone model enabling users to maintain their mobile deployment investments for years. The Capture SDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones. |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Package Contents | - DS860 Barcode Sled Scanner
- GDS Charging Dock
- USB Charging Cable
- 1 year limited Warranty on DuraSled and charging dock
|
| Platform Supported | iOS |
| Product Line | DuraSled |
| Product Model | DS860 |
| Product Name | DS860 Barcode Sled Scanner |
| Product Type | Barcode Scanner |
| UPC Alternates | 758497122773 |
