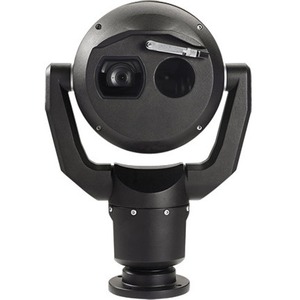

Bosch MIC IP fusion MIC-9502-Z30BVF9 2 Megapixel Outdoor Full HD Network Camera - Color, Monochrome - Dome - MJPEG, H.264, H.265, JPEG, H.265/HEVC - 1920 x 1080 - 4.30 mm- 129 mm Varifocal Lens - 30x Optical - Exmor R CMOS - Wall Mount, Corner Mount, Pole Mount, Conduit Mount, Bracket Mount - IK10 - IP68, IP67, IP66 - Corrosion Resistant, Weather Resistant, Impact Resistant, Vibration Resistant, Dust Resistant, Water Resistant, Rain Resistant, Snow Resistant, Fog Resistant
MJPEG, H.264, H.265, JPEG, H.265/HEVC - 1920 x 1080 - 4.30 mm- 129 mm Varifocal Lens - 30x Optical - Exmor R CMOS - Wall Mount, Corner Mount, Pole Mount, Conduit Mount, Bracket Mount - IK10 - IP68, IP67, IP66 - Corrosion Resistant, Weather Resistant, Impact Resistant, Vibration Resistant, Dust Resistant, Water Resistant, Rain Resistant, Snow Resistant, Fog Resistant
| Field of View | 70° x 52° |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP68 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| Maximum Aperture | f/1.6 |
| Maximum Thermal Focal Length | 0.35" |
| Minimum Aperture | f/4.7 |
| Minimum Focal Length | 4.30 mm |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 100% |
| Thermal Image Sensor Type | Uncooled Vanadium Oxide Microbolometer |
| Thermal Video Resolution | 640 x 480 |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Depth | 7.1" |
| Durability | Water Resistant |
| Durability | Rain Resistant |
| Durability | Vibration Resistant |
| Durability | Snow Resistant |
| Durability | Dust Resistant |
| Durability | Impact Resistant |
| Durability | Corrosion Resistant |
| Durability | Weather Resistant |
| Durability | Fog Resistant |
| Effective Camera Resolution | 2 Megapixel |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Removable IR Cut-off Filter |
| Features | Noise Reduction |
| Features | PTZ |
| Features | Automatic White Balance |
| Features | Day/Night |
| Features | Built-in Fan |
| Features | Surge Protection |
| Features | Heater |
| Features | Defog |
| Features | Auto Gain Control |
| Form factor | Dome |
| Height | 16.6" |
| Image Sensor Type | Exmor R CMOS |
| Input voltage | 24 V AC |
| Input voltage | 30 V AC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | MIC-9502-Z30BVF9 |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities the MIC IP fusion 9000i camera is the perfect solution for robust and high-quality imaging needs. The camera's distinctive ruggedized design is wellsuited for extreme environments and adverse weather conditions such as high winds rain fog ice and snow. Precision engineered using Bosch's domain expertise in material and mechanical engineering the camera offers the most advanced imaging and positioning system solution available on the market.
Functions
Exceptional imaging performance
The MIC IP fusion 9000i camera incorporates a highperformance thermal imaging core and a 1080p starlight camera integrated in the same housing. This allows the camera to deliver simultaneous thermal and visible video streams maximizing the ability to detect and react to long-range threats.
Thermal imager
The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology. This high sensitivity thermal imager is equipped with a fixed focal length Athermal lens that balances the field-ofview with maximizing the detection distance. User-adjustable settings for contrast and gain allow operators to optimize the image ensuring delivery of the highest quality video. In addition a wide variety of user-selectable thermal color modes are available allowing further optimization of the thermal image. Depending on model mix QVGA resolution (320 pixels) and VGA resolution (640 pixels) versions are available with choice of low (<9Hz) or high (30Hz) frame rates.
Visible imager
The 1080p60-capable visible imager has starlight technology and a 30x optical/12x digital zoom lens that provides high-quality images excellent color performance and unbeatable low-light sensitivity. High dynamic range ensures clear image reproduction in the most challenging high-contrast scenes.
Ruggedized design for extreme applications
The MIC IP fusion 9000i camera is designed for surveillance applications beyond the mechanical capabilities of normal PTZ domes or conventional positioning systems.
The camera is environmentally sealed and complies with Type 6P and IP68 standards when attached to a MIC-DCA or a MIC-WMB. This level of protection eliminates any risk of dust or water ingress making the camera a perfect choice for use in extreme environments with rain dust snow flying debris and other challenging conditions. In addition the MIC camera's ingress protection method does not need periodic maintenance which is required on cameras with pressurized housings. |
| Maximum Focal Length | 129 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Pole Mount |
| Mount Type | Wall Mount |
| Mount Type | Bracket Mount |
| Mount Type | Corner Mount |
| Mount Type | Conduit Mount |
| Optical zoom | 30x |
| Package Contents | - MIC-9502-Z30BVF9 PTZ thermal VGA-9mm 2MP 30x 30Hz black*
- 1 x Quick Installation Guide
- 1 x Base Gasket
- 1 x RJ45 Coupler
- 4 x MAC Address Labels
- 1 x Ground Screw
|
| Power source type | AC |
| Product color | Black |
| Product Family | MIC IP fusion 9000i |
| Product Line | MIC IP fusion |
| Product Name | MIC-9502-Z30BVF9 PTZ thermal VGA-9mm 2MP 30x 30Hz black |
| Product Series | 9000i |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/30000 Second |
| Storage Type | Memory Card |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Video Formats | H.265/HEVC |
| Video Formats | JPEG |
| Weight (Approximate) | 19.84 lb |
| Width | 11.7" |
